Артикул: MZ73-LM0
В наличии

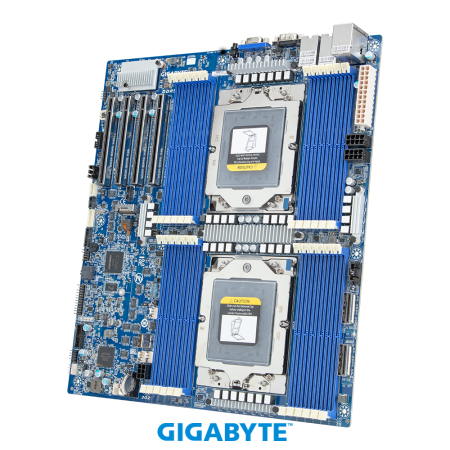

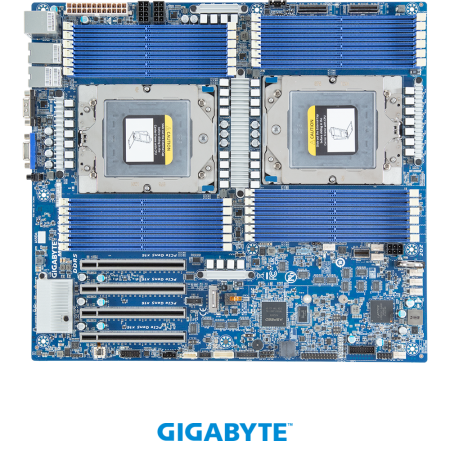

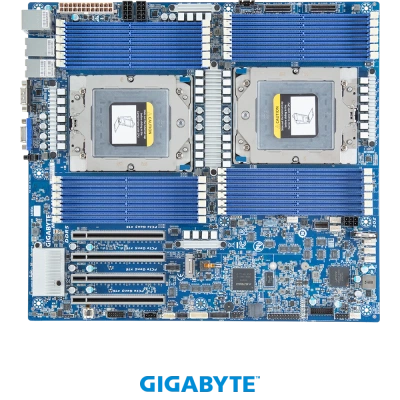

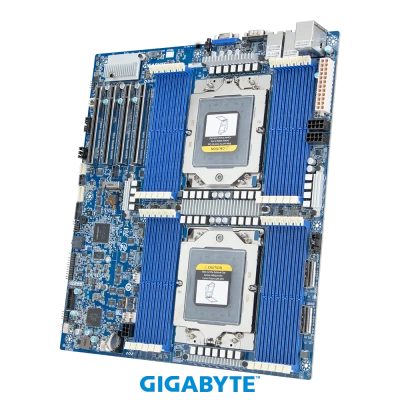

GIGABYTE MZ73-LM0 (rev. 1.0)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MZ73-LM0 (rev. 1.0)
AMD EPYC™ 9004 DP Server Board Gen5
- AMD EPYC™ 9004 series processors, Max cTDP 300W
- Dual processor, 5nm technology
- 12-Channel RDIMM DDR5, 24 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports (Broadcom® BCM57416)
- 1 x Dedicated management port
- 1 x SlimSAS 4i with 4 x SATA 6Gb/s ports
- 2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 4 x PCIe Gen5 x16 expansion slots
Технические характеристики
Form Factor
E-ATX
304.8W x 335.2D mm
304.8W x 335.2D mm
CPU
AMD EPYC™ 9004 series processors
Dual processor, 5nm technology
Up to 84-core, 168 threads per processor
cTDP up to 300W
Dual processor, 5nm technology
Up to 84-core, 168 threads per processor
cTDP up to 300W
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
LAN
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416)
NCSI function supported
1 x 10/100/1000 management LAN
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
RAID
N/A
Expansion Slots
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot. from CPU_0
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
2x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
2x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x MCIO 8i connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x MCIO 8i connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

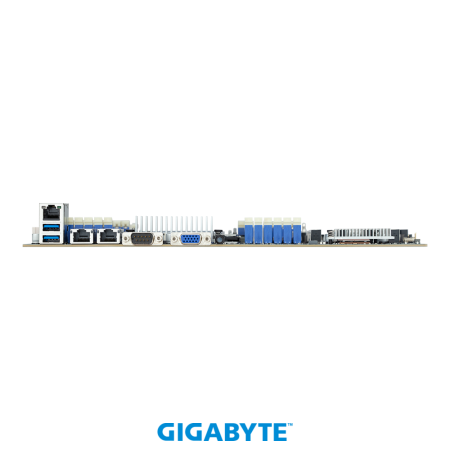

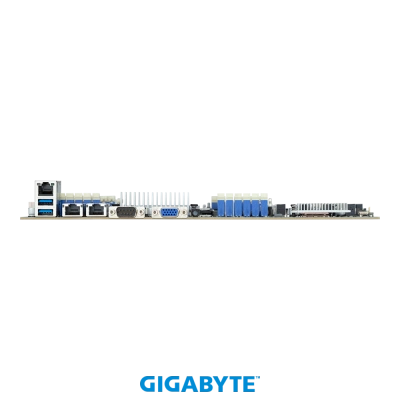

Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Supported
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

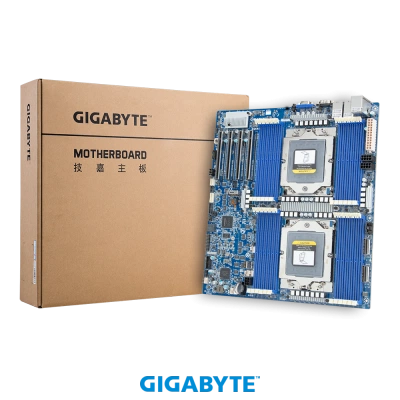

Retail Packaging Content
1 x MZ73-LM0
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ73-LM0
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MZ73LM0MR-000-10*
Bulk: 9MZ73LM0NR-000-10*
Part Numbers:- I/O shield: 12AIO-MZ73L0-00R
- CPU cooler: 25ST0-0Z6022-C1R (optional)
- SlimSAS 4i to 4 x SATA 6Gb/s cable: 25CFM-600800-A4R
NOTE: Please select GIGABYTE qualified cable to make sure Gen5 signal quality
Bulk: 9MZ73LM0NR-000-10*
Part Numbers:- I/O shield: 12AIO-MZ73L0-00R
- CPU cooler: 25ST0-0Z6022-C1R (optional)
- SlimSAS 4i to 4 x SATA 6Gb/s cable: 25CFM-600800-A4R
NOTE: Please select GIGABYTE qualified cable to make sure Gen5 signal quality
