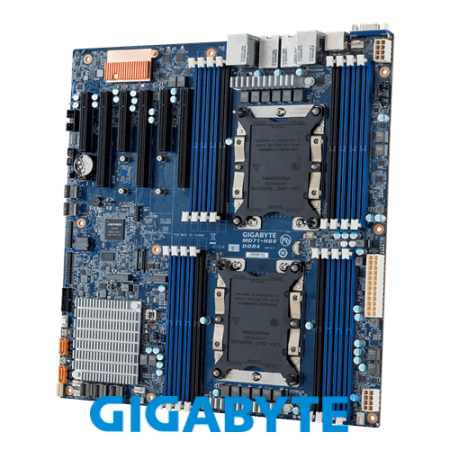

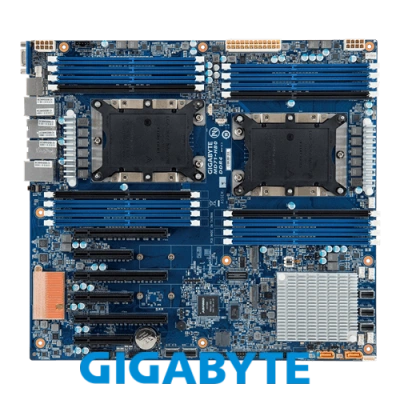

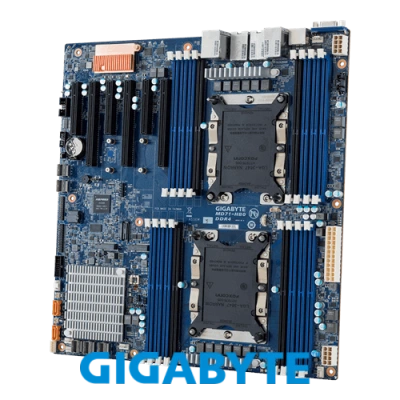

GIGABYTE MD71-HB0 (rev. 1.x)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MD71-HB0 (rev. 1.x)
Motherboard - 2nd/1st Gen Intel® Xeon® Scalable - E-ATX DP 16 x DIMMs
- Dual 2nd/1st Gen Intel® Xeon® Scalable Processors
- 6-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- 2 x 10Gb/s BASE-T LAN ports via Intel® X557-AT2
- 2 x 1Gb/s BASE-T LAN ports via Marvell® 88E1514
- 2 x SlimSAS connectors for 2 x Gen3 NVMe
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports supporting SATA DOM
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 6 x PCIe Gen3 x16, x8 and x4 expansion slots
Технические характеристики
Form Factor
E-ATX
305W x 330D mm
305W x 330D mm
CPU
2nd Generation Intel® Xeon® Scalable Processors
1st Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 205W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
1st Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 205W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 3647
Socket P
Recommended CPU cooler: Dynatron B5
Socket P
Recommended CPU cooler: Dynatron B5
Chipset
Intel® C622
Memory
16 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
Memory speed: 2933/2666/2400/2133 MT/s
Maximum verified DCPMM configuration:
*Ambient temperature 35°C
*2nd Generation Intel® Xeon® Scalable Processors (205W)
*DCPMM 256GB x4
DCPMM installation locations:
DIMM_P0_(A1, D1)
DIMM_P1_(G1, J1)
Note:
1. 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C.
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative.
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
Memory speed: 2933/2666/2400/2133 MT/s
Maximum verified DCPMM configuration:
*Ambient temperature 35°C
*2nd Generation Intel® Xeon® Scalable Processors (205W)
*DCPMM 256GB x4
DCPMM installation locations:
DIMM_P0_(A1, D1)
DIMM_P1_(G1, J1)
Note:
1. 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C.
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative.
LAN
2 x 10Gb/s BASE-T LAN ports (1 x Intel® X557-AT2)
2 x 1Gb/s BASE-T LAN ports (2 x Marvell® 88E1514)
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s BASE-T LAN ports (2 x Marvell® 88E1514)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
CPU_1:
- 2 x SlimSAS connectors for 2 x Gen3 NVMe
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports supporting SATA DOM
- 2 x SlimSAS connectors for 2 x Gen3 NVMe
PCH:
- 3 x SlimSAS connectors for 12 x SATA 6Gb/s
- 2 x SATA 6Gb/s ports supporting SATA DOM
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Slot_6: PCIe x16 (Gen3 x16) slot, from CPU_1
Slot_5: PCIe x8 (Gen3 x8) slot, from CPU_1
Slot_4: PCIe x16 (Gen3 x16) slot, from CPU_1
Slot_3: PCIe x8 (Gen3 x8) slot, from CPU_0
Slot_2: PCIe x16 (Gen3 x16) slot, from CPU_0
Slot_1: PCIe x8 (Gen3 x4) slot, from PCH
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Support 2280/22110 cards
Slot_5: PCIe x8 (Gen3 x8) slot, from CPU_1
Slot_4: PCIe x16 (Gen3 x16) slot, from CPU_1
Slot_3: PCIe x8 (Gen3 x8) slot, from CPU_0
Slot_2: PCIe x16 (Gen3 x16) slot, from CPU_0
Slot_1: PCIe x8 (Gen3 x4) slot, from PCH
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Support 2280/22110 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 x2 header
2 x M.2 slots
5 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 x2 header
2 x M.2 slots
5 x SlimSAS connectors
2 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

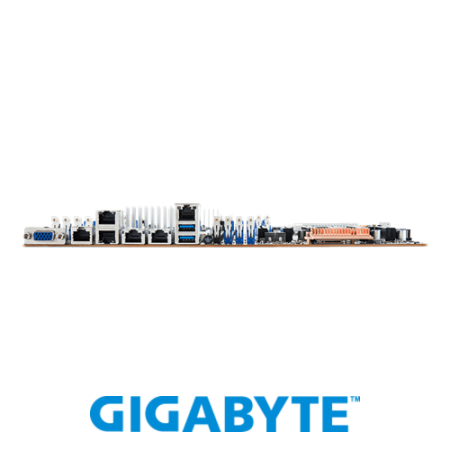

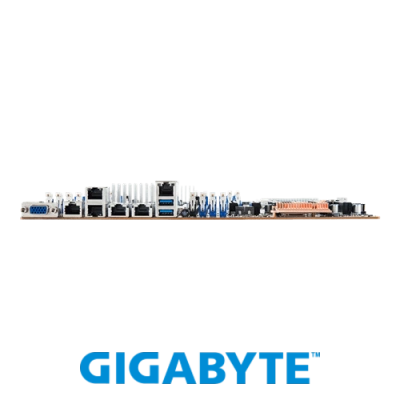

Rear I/O
2 x USB 3.0
1 x VGA
1 x RJ45 serial port
4 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x RJ45 serial port
4 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
OS Supported
For Skylake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Board Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

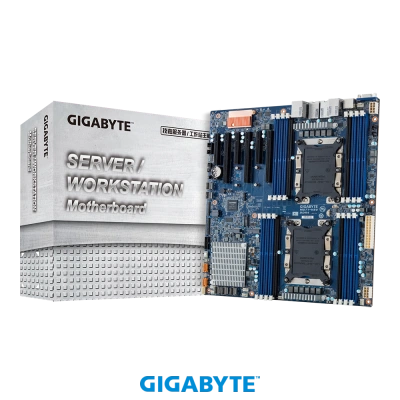

Retail Packaging Content
1 x MD71-HB0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATA 6Gb/s cables
2 x Non-Fabric CPU carriers
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATA 6Gb/s cables
2 x Non-Fabric CPU carriers
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MD71-HB0
10 x I/O shields
20 x Non-Fabric CPU carriers
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
20 x Non-Fabric CPU carriers
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MD71HB0MR-00-1*
Bulk: 9MD71HB0NR-00-1*
Bulk: 9MD71HB0NR-00-1*
