Плата GIGABYTE MB51-PS0: обзор сетевых возможностей
Материнская плата GIGABYTE MB51-PS0 (rev. 1.0) с форм-фактором ATX и поддержкой процессоров Intel® Xeon® D-2123I...
Читать далее →
Артикул: MB51-PS0
В наличии

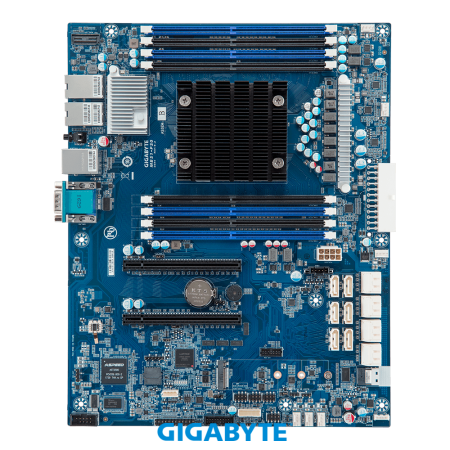

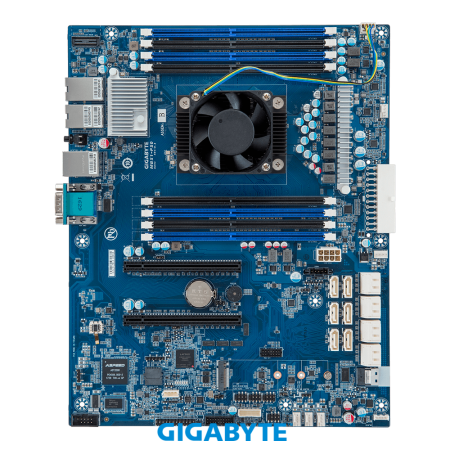

GIGABYTE MB51-PS0 (rev. 1.0)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MB51-PS0 (rev. 1.0)
- ATX form factor
- Intel® Xeon® D-2123IT/D-2143IT processor
- Single processor, FCBGA 2518
- 4-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- 2 x 10G BASE-T LAN ports (Intel® X557-AT2)
- 1 x Dedicated management port
- 14 x SATA III 6Gb/s ports
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 1 x U.2 slot with PCIe Gen3 x4 interface
- 2 x PCIe Gen3 x16 and x8 expansion slots
- Aspeed® AST2500 remote management controller
Технические характеристики
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Intel® Xeon® D-2123IT processor 2.2GHzUp to 3.0GHz with Intel® Turbo Boost Technology 2.0
4 coresSingle processor, TDP 60W
or
Intel® Xeon® D-2143IT processor 2.2GHzUp to 3.0GHz with Intel® Turbo Boost Technology 2.0
8 coresSingle processor, TDP 60W
NOTE:
Due to processor TDP 60W, the package is for system integration only.
Please select suitable thermal solution.
4 coresSingle processor, TDP 60W
or
Intel® Xeon® D-2143IT processor 2.2GHzUp to 3.0GHz with Intel® Turbo Boost Technology 2.0
8 coresSingle processor, TDP 60W
NOTE:
Due to processor TDP 60W, the package is for system integration only.
Please select suitable thermal solution.
Socket
FCBGA 2518
Chipset
SoC
Memory
8 x DIMM slots
DDR4 memory supported only
4-channel memory architecture
RDIMM and LRDIMM module supported
Up to 512GB memory capacity
1.2V modules: 2400 MHz
DDR4 memory supported only
4-channel memory architecture
RDIMM and LRDIMM module supported
Up to 512GB memory capacity
1.2V modules: 2400 MHz
LAN
2 x 10G BASE-T LAN ports(Intel® X557-AT2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
14 x 7-pin SATA III 6Gb/s ports
RAID
N/A
Expansion Slots
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Shared with slot_4
- Supports NGFF-2240/2260/2280 cards
1 x U.2 port:
- SlimSAS type
- PCIe Gen3 x4 per port
- Shared with slot_4
Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Shared with slot_4
- Supports NGFF-2240/2260/2280 cards
1 x U.2 port:
- SlimSAS type
- PCIe Gen3 x4 per port
- Shared with slot_4
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
14 x 7-pin SATA connectors
1 x M.2 slot
1 x SlimSAS connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x 8-pin ATX 12V power connector
14 x 7-pin SATA connectors
1 x M.2 slot
1 x SlimSAS connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

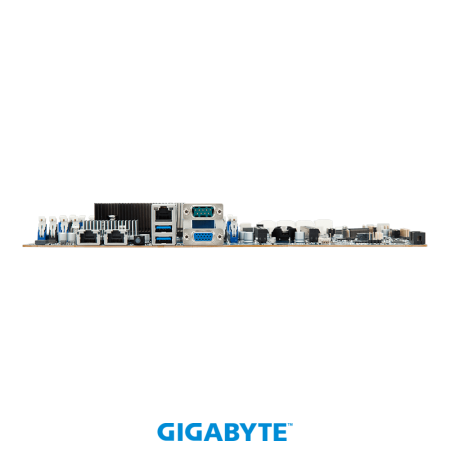

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x COM_1
1 x VGA
2 x RJ45
1 x MLAN
1 x COM_1
TPM
1 x TPM header with Low pin count interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
OS Supported
Windows Nano Server
Windows Server 2016
Windows Server 2012 R2 with Update
Red Hat Enterprise Linux 7.4
SUSE Linux Enterprise Server (x64)
Ubuntu
VMware
Windows Server 2016
Windows Server 2012 R2 with Update
Red Hat Enterprise Linux 7.4
SUSE Linux Enterprise Server (x64)
Ubuntu
VMware
Board Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

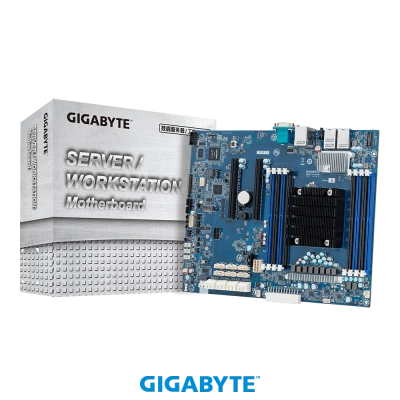

Retail Packaging Content
Defined by request
Bulk Packaging Content
5 x MB51-PS0
5 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
5 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Bulk: 9MB51PS0NR-00 (D-2123IT) / 9MB51PS1NR-00 (D-2143IT)
Part Numbers:
I/O shield: 12AIO-MB51P0-00R
Fan-sink: 12SF2-01A066-00R
Part Numbers:
I/O shield: 12AIO-MB51P0-00R
Fan-sink: 12SF2-01A066-00R
