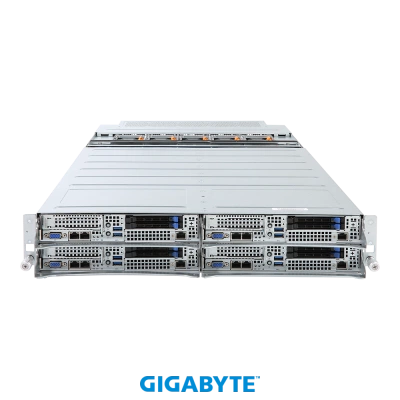

Описание товара GIGABYTE H281-PE0 (rev. 100/200)

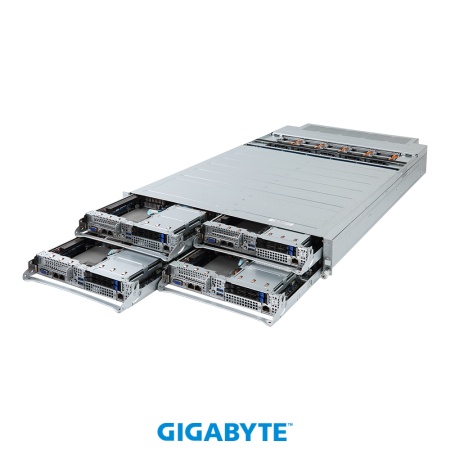

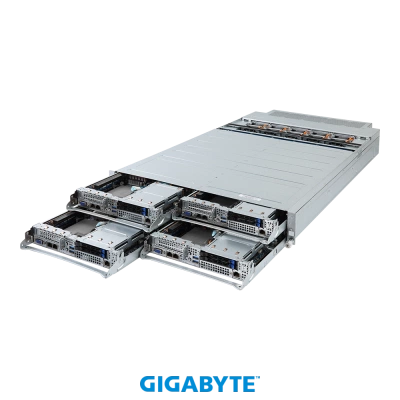

High Density Server - Intel DP 2U 4-Node Server
- Supports 5G network infrastructure
- 2U 4-node front access server system
- 1st/2nd Gen Intel® Xeon® Scalable Processors
- Dual processor per node, LGA 3647
- Intel® C621 Chipset
- 6-Channel RDIMM/LRDIMM DDR4, 96 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- 8 x 10Gb/s BASE-T LAN ports via Intel® X550-BT2
- 1 x CMC port
- 8 x 2.5" SATA/SAS hot-swappable bays
- 4 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen3 x16 slots on the front side
- 8 x LP PCIe Gen3 x16 slots on the rear side
- 4 x OCP Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- Dual 2200W 80 PLUS Platinum redundant power supply
- Optimized performance with Mellanox Infiniband EDR 100G or Ethernet 100G products
Технические характеристики
Dimensions (WxHxD, mm)
2U 4-Node - Front access
447 x 87 x 902.3
447 x 87 x 902.3

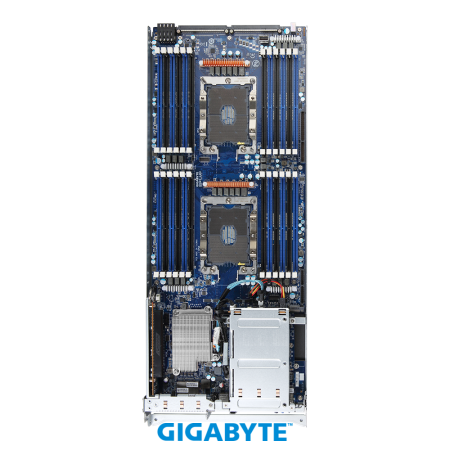

Motherboard
MH81-LM0
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Scalable Processors
Dual processor per node, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Intel® Xeon® Scalable Processors
Dual processor per node, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
Per Node:
2 x LGA 3647
Total:
8 x LGA 3647
Socket P
2 x LGA 3647
Total:
8 x LGA 3647
Socket P
Chipset
Intel® C621 Chipset
Memory
Per node:
24 x DIMM slots
Total:
96 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MT/s
Note:
1. 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
24 x DIMM slots
Total:
96 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MT/s
Note:
1. 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
LAN
Per node:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-BT2)
NCSI function supported
1 x Dedicated management port
Total:
8 x 10Gb/s BASE-T LAN ports (Intel® X550-BT2)
NCSI function supported
4 x Dedicated management ports
1 x 10/100/1000 Mbps CMC port
2 x 10Gb/s BASE-T LAN ports (Intel® X550-BT2)
NCSI function supported
1 x Dedicated management port
Total:
8 x 10Gb/s BASE-T LAN ports (Intel® X550-BT2)
NCSI function supported
4 x Dedicated management ports
1 x 10/100/1000 Mbps CMC port
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip in CMC board:
Integrated in Aspeed® AST1250
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip in CMC board:
Integrated in Aspeed® AST1250
Storage
Per node:
2 x 2.5" 7mm SATA/SAS hot-swappable bays
Total:
8 x 2.5" 7mm SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" 7mm SATA/SAS hot-swappable bays
Total:
8 x 2.5" 7mm SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
RAID
Intel® SATA RAID 0/1
Expansion Slots
Per node:
1 x PCIe x16 (Gen3 x16) low-profile slot on the front side
2 x PCIe x16 (Gen3 x16) low-profile slots on the rear side
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280 cards
Total:
4 x PCIe x16 (Gen3 x16) low-profile slots on the front side
8 x PCIe x16 (Gen3 x16) low-profile slots on the rear side
4 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280 cards
1 x PCIe x16 (Gen3 x16) low-profile slot on the front side
2 x PCIe x16 (Gen3 x16) low-profile slots on the rear side
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280 cards
Total:
4 x PCIe x16 (Gen3 x16) low-profile slots on the front side
8 x PCIe x16 (Gen3 x16) low-profile slots on the rear side
4 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280 cards
Internal I/O
Per node:
4 x SlimSAS connectors
1 x SATA 6Gb/s port
1 x TPM header
1 x VROC connector
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
4 x SlimSAS connectors
1 x SATA 6Gb/s port
1 x TPM header
1 x VROC connector
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O
Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x NMI button
1 x Reset button
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x NMI buttons
4 x Reset buttons
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x NMI button
1 x Reset button
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x NMI buttons
4 x Reset buttons

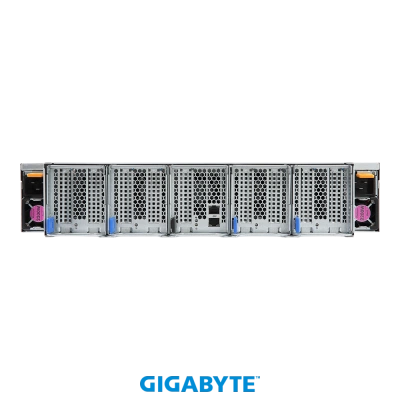

Rear I/O
CMC module:
1 x MLAN
1 x MLAN Cascade Port
1 x Status LED
1 x Power on LED
Expansion module:
1 x Power on LED
1 x MLAN
1 x MLAN Cascade Port
1 x Status LED
1 x Power on LED
Expansion module:
1 x Power on LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note:
1) The system power supply requires C19 power cord.
2) 2000W 80 PLUS Titanium power supply as an option.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note:
1) The system power supply requires C19 power cord.
2) 2000W 80 PLUS Titanium power supply as an option.
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
For Skylake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
System Fans
10 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
L6 system: 31.5kg
Packaging Dimensions
1167 x 770 x 280 mm
Packaging Content
1 x H281-PE0
8 x CPU heatsinks
1 x Rail kit
8 x Non-Fabric CPU carriers
8 x CPU heatsinks
1 x Rail kit
8 x Non-Fabric CPU carriers
Part Numbers
- Barebone package: 6NH281PE0MR-00*
- Motherboard: 9MH81LM0NR-00
- System transfer board: 9CNBH07NR-00
- Backplane board - CBPH020: 9CBPH020NR-00
- CMC board: 9CMBH20NR-00
- Riser card - CRSH012: 9CRSH012NR-00
- Tool-less rail kit: 25HB2-A86102-K0R
- CPU heatsink 1: 25ST1-253206-C1R
- CPU heatsink 2: 25ST1-253207-C1R
- 7mm HDD/SSD tray: 25EK3-H28100-U0R
- Fan module: 25ST2-663821-S0S
- Power supply: 25EP0-222001-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- Motherboard: 9MH81LM0NR-00
- System transfer board: 9CNBH07NR-00
- Backplane board - CBPH020: 9CBPH020NR-00
- CMC board: 9CMBH20NR-00
- Riser card - CRSH012: 9CRSH012NR-00
- Tool-less rail kit: 25HB2-A86102-K0R
- CPU heatsink 1: 25ST1-253206-C1R
- CPU heatsink 2: 25ST1-253207-C1R
- 7mm HDD/SSD tray: 25EK3-H28100-U0R
- Fan module: 25ST2-663821-S0S
- Power supply: 25EP0-222001-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
