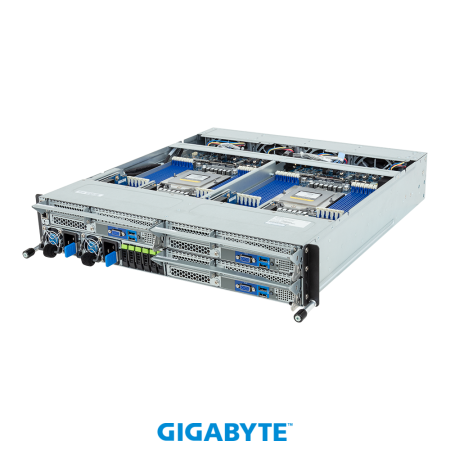

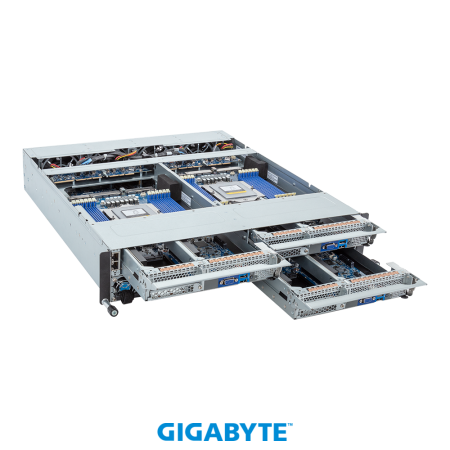

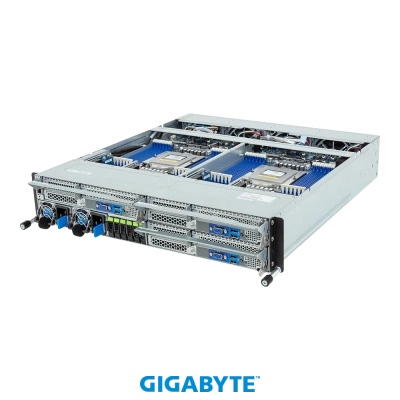

GIGABYTE H223-Z10 (rev. AAP1)

2U 3-Node - Front access
447.8 x 87.5 x 500

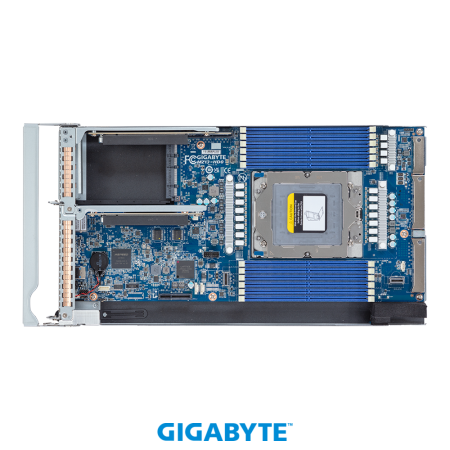

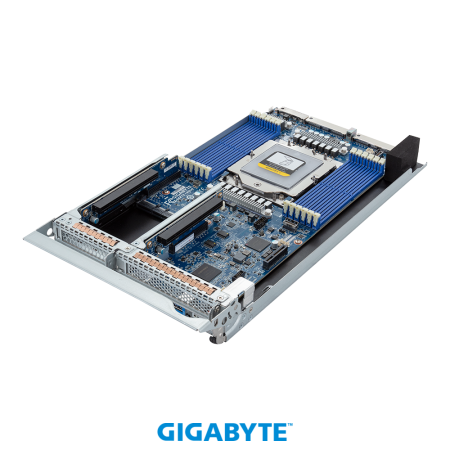

MZ13-HD0

AMD EPYC™ 9004 Series processors
AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
Single processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 240W at ambient 35°C

cTDP up to 300W at ambient 30°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Per Node:
1 x LGA 6096

Total:
3 x LGA 6096

Socket SP5

System on Chip

Per node:
12 x DIMM slots

Total:
36 x DIMM slots

DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz

Total:
2 x CMC ports

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed^® AST2520A2-GP

Per node:
2 x 9.5mm E1.S Gen4 NVMe hot-swappable bays

Total:
6 x 9.5mm E1.S Gen4 NVMe hot-swappable bays

N/A

N/A

Per node:
Riser Card CRSH01Q:
- 1 x PCIe x16 (Gen5 x16) low-profile slot

Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) FHHL slot

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
Supports NCSI function

Optional 1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards

Total:
Riser Card CRSH01Q x 3:
- 3 x PCIe x16 (Gen5 x16) low-profile slots

Riser Card CRSH01R x 3:
- 3 x PCIe x16 (Gen5 x16) FHHL slots

3 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

Optional 3 x M.2 slots (CMTP192):
- M-key
- PCIe Gen4 x4
- Support 2280/22110 cards

Per node:
1 x TPM header

Per node:
2 x USB 3.2 Gen1
1 x VGA
1 x Power button with LED
1 x ID LED
1 x System status LED

Total:
6 x USB 3.2 Gen1
3 x VGA
3 x Power buttons with LED
3 x ID LEDs
3 x System status LEDs
2 x CMC ports
1 x CMC status LED

N/A

Speed and bandwidth:
PCIe Gen4 x4

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input:
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 81A
+ 12Vsb/ 3A
- Max 2600W/ 200-220V~
+ 12.2V/ 213A
+ 12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+ 12.2V/ 245A
+ 12Vsb/ 3A

Note: The system power supply requires C19 power cord

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS / BMC / CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

4 x 80x80x38mm (18,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 17.4 kg
Gross Weight: 28.4 kg

857 x 670 x 280 mm

1 x H223-Z10
3 x CPU heatsinks
1 x L-shape Rail kit

- Barebone package: 6NH223Z10DR000AAP1*
- Motherboard: 9MZ13HD0UR-000
- L-shape Rail kit: 25HB2-A86105-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFPH030: 9CFPH030NR-00
- Backplane board - CBP2060: 9CBP2060NR-00
- Fan module: 25ST2-88382V-S1R
- Riser card - CRSH01Q: 9CRSH01QNR-00
- Riser card - CRSH01R: 9CRSH01RNR-00
- EDSFF Riser card - CSPP010: 9CSPP010NR-00
- LAN bridge board - CLSH13: 9CLSH13NR-00
- Power Supply: 25EP0-23000F-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- RMA packaging: 6NH223Z10SR-RMA-A100
