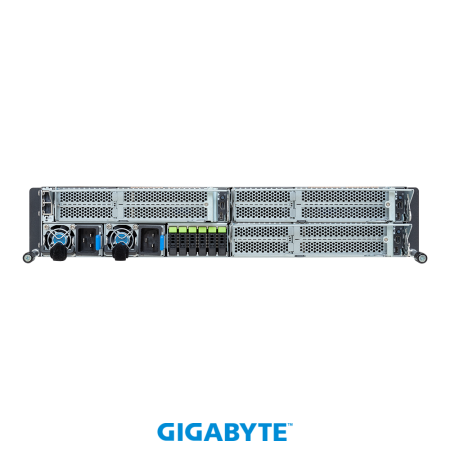

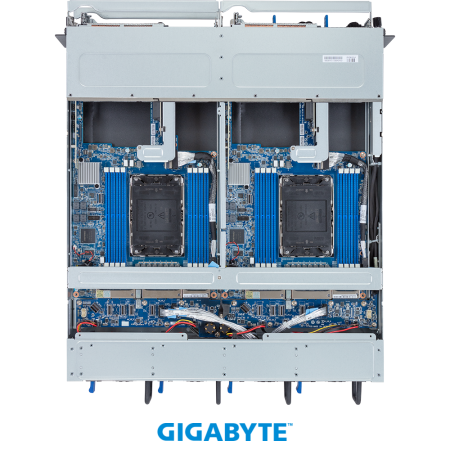

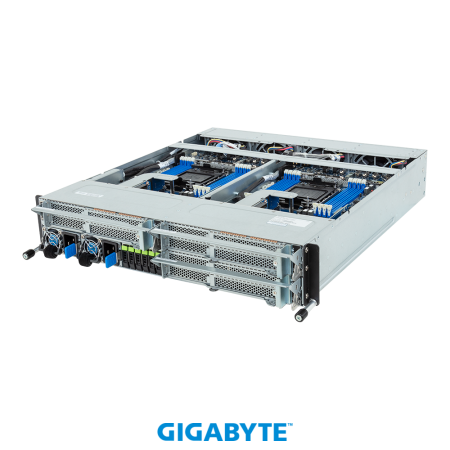

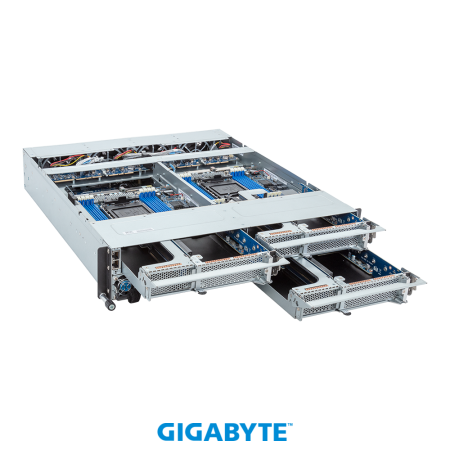

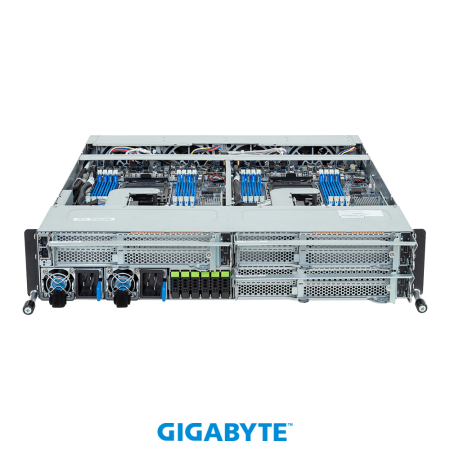

GIGABYTE H223-S10 (rev. AAP1)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE H223-S10 (rev. AAP1)

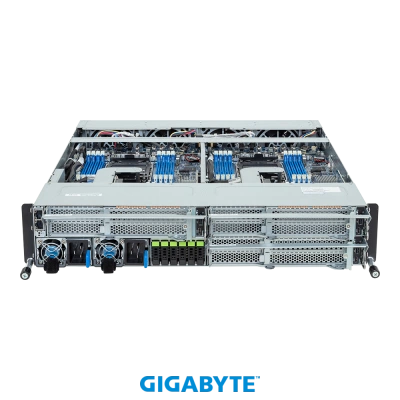

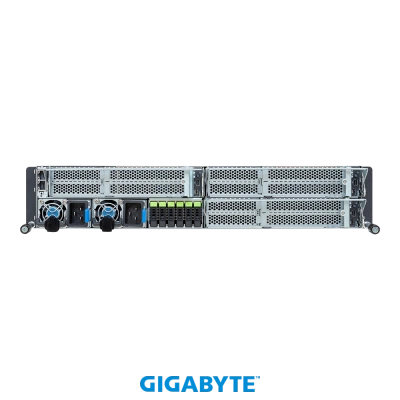

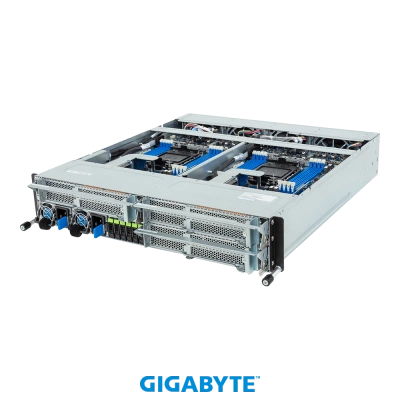

High Density Server - 5th/4th Gen Intel® Xeon® Scalable - 2U 3-Node UP 6-Bay E1.S Gen4 NVMe
- 2U 3-node front access server system
- Single 5th/4th Gen Intel® Xeon® Scalable Processors per node
- Single Intel® Xeon® CPU Max Series per node
- 8-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x CMC ports
- 6 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
- 3 x M.2 slots with SATA interface
- 6 x FHHL PCIe Gen5 x16 slots
- 3 x LP PCIe Gen5 x16 slots
- 3 x LP PCIe Gen5 x8 slots
- 1+1 3000W 80 PLUS Titanium redundant power supplies
Технические характеристики
Dimensions (WxHxD, mm)
2U 3-Node - Front access
447.8 x 87.5 x 500
447.8 x 87.5 x 500

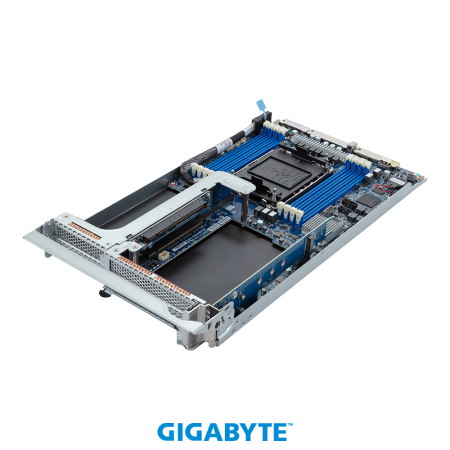

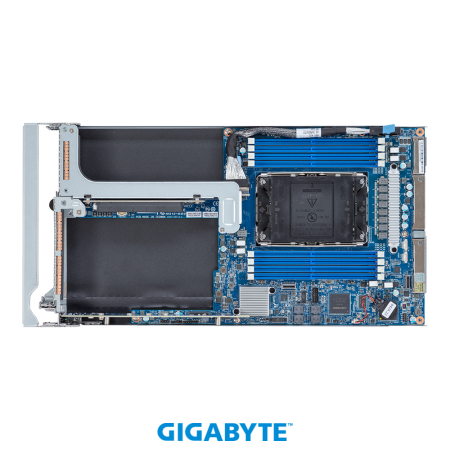

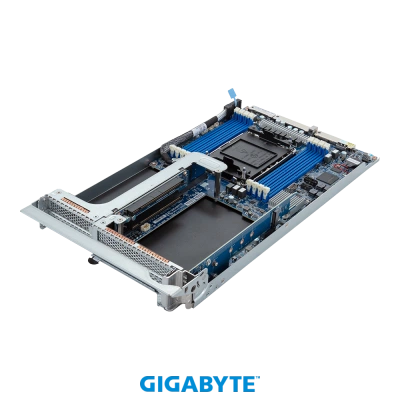

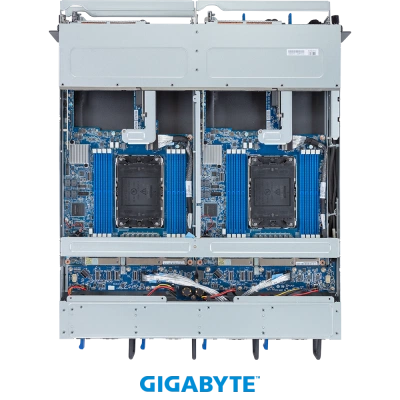

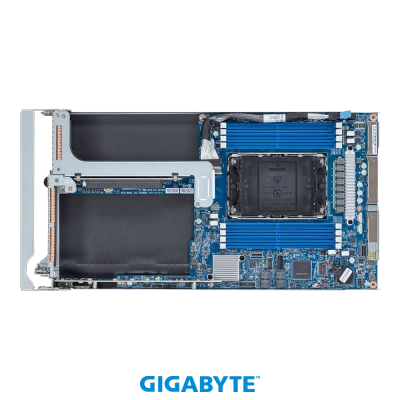

Motherboard
MS13-HD0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Single processor per node
TDP up to 350W at ambient 35°C with 1 x PCIe slot occupied
TDP up to 350W at ambient 30°C with 2 x PCIe slots occupied
TDP up to 300W at ambient 35°C with 3 x PCIe slots occupied
TDP up to 300W at ambient 30°C with 4 x PCIe slots occupied
Please contact technical support for more details.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Single processor per node
TDP up to 350W at ambient 35°C with 1 x PCIe slot occupied
TDP up to 350W at ambient 30°C with 2 x PCIe slots occupied
TDP up to 300W at ambient 35°C with 3 x PCIe slots occupied
TDP up to 300W at ambient 30°C with 4 x PCIe slots occupied
Please contact technical support for more details.
Socket
Per Node:
1 x LGA 4677
Total:
3 x LGA 4677
Socket E
1 x LGA 4677
Total:
3 x LGA 4677
Socket E
Chipset
Intel® C741
Memory
Per node:
8 x DIMM slots
Total:
24 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
8 x DIMM slots
Total:
24 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
LAN
Total:
2 x CMC ports
2 x CMC ports
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
2 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
Total:
6 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
2 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
Total:
6 x 9.5mm E1.S Gen4 NVMe hot-swappable bays
SAS
N/A
RAID
N/A

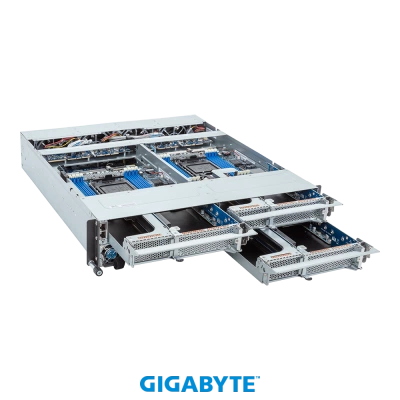

Expansion Slots
Per node:
Riser Card CRSH02D:
- 2 x PCIe x16 (Gen5 x16) FHHL slots
Riser Card CRSH02E:
- 1 x PCIe x16 (Gen5 x16) low-profile slot
- 1 x PCIe x16 (Gen5 x8) low-profile slot
1 x M.2 slot (CFPH010):
- M-key
- SATA, from PCH
- Supports 2242/2260/2280/22110 cards
Total:
Riser Card CRSH02D x 3:
- 6 x PCIe x16 (Gen5 x16) FHHL slots
Riser Card CRSH02E x 3:
- 3 x PCIe x16 (Gen5 x16) low-profile slots
- 3 x PCIe x16 (Gen5 x8) low-profile slots
3 x M.2 slots (CFPH010):
- M-key
- SATA, from PCH
- Support 2242/2260/2280/22110 cards
Riser Card CRSH02D:
- 2 x PCIe x16 (Gen5 x16) FHHL slots
Riser Card CRSH02E:
- 1 x PCIe x16 (Gen5 x16) low-profile slot
- 1 x PCIe x16 (Gen5 x8) low-profile slot
1 x M.2 slot (CFPH010):
- M-key
- SATA, from PCH
- Supports 2242/2260/2280/22110 cards
Total:
Riser Card CRSH02D x 3:
- 6 x PCIe x16 (Gen5 x16) FHHL slots
Riser Card CRSH02E x 3:
- 3 x PCIe x16 (Gen5 x16) low-profile slots
- 3 x PCIe x16 (Gen5 x8) low-profile slots
3 x M.2 slots (CFPH010):
- M-key
- SATA, from PCH
- Support 2242/2260/2280/22110 cards
Internal I/O
Per node:
1 x TPM header
1 x VROC connector
1 x TPM header
1 x VROC connector
Front I/O
Per node:
1 x USB 3.2 Gen1 (Type-C)
1 x Mini-DP
1 x Power button with LED
1 x System status LED
1 x ID LED
Total:
3 x USB 3.2 Gen1 (Type-C)
3 x Mini-DP
3 x Power buttons with LED
3 x System status LEDs
3 x ID LEDs
2 x CMC ports
1 x CMC status LED
1 x USB 3.2 Gen1 (Type-C)
1 x Mini-DP
1 x Power button with LED
1 x System status LED
1 x ID LED
Total:
3 x USB 3.2 Gen1 (Type-C)
3 x Mini-DP
3 x Power buttons with LED
3 x System status LEDs
3 x ID LEDs
2 x CMC ports
1 x CMC status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4
PCIe Gen4 x4
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 3000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)

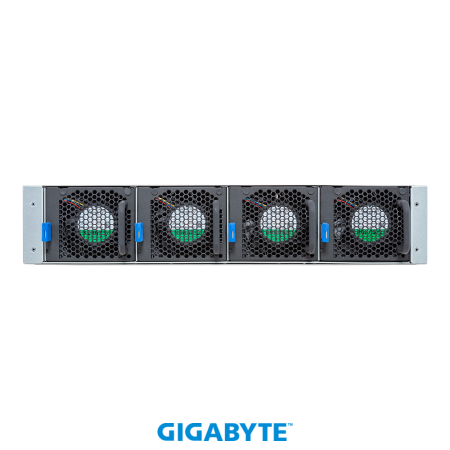

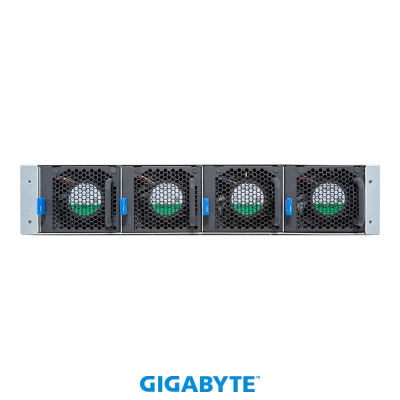

System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 17.2 kg
Gross Weight: 29 kg
Gross Weight: 29 kg
Packaging Dimensions
857 x 670 x 280 mm
Packaging Content
1 x H223-S10-AAP1
3 x CPU heatsinks
1 x Mini-DP to D-Sub cable
9 x Carriers
1 x L-shape Rail kit
3 x CPU heatsinks
1 x Mini-DP to D-Sub cable
9 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NH223S10DR000ABP1*
- Barebone package (4th Gen): 6NH223S10DR000AAP1*
- Motherboard: 9MS13HD0UR-000
- L-shape Rail kit: 25HB2-A86105-K0R
- CPU heatsink: 25ST1-453207-C1R
- Front panel board - CFPH030: 9CFPH030NR-00
- Backplane board - CBP2060: 9CBP2060NR-00
- Fan module: 25ST2-88382V-S1R
- Riser card - CRSH02D: 9CRSH02DNR-00
- Riser card - CRSH02E: 9CRSH02ENR-00
- EDSFF riser card - CSPP010: 9CSPP010NR-00
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00
- LAN bridge board - CLSH13: 9CLSH13NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000F-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NH223S10SR-RMA-A100
- Barebone package (4th Gen): 6NH223S10DR000AAP1*
- Motherboard: 9MS13HD0UR-000
- L-shape Rail kit: 25HB2-A86105-K0R
- CPU heatsink: 25ST1-453207-C1R
- Front panel board - CFPH030: 9CFPH030NR-00
- Backplane board - CBP2060: 9CBP2060NR-00
- Fan module: 25ST2-88382V-S1R
- Riser card - CRSH02D: 9CRSH02DNR-00
- Riser card - CRSH02E: 9CRSH02ENR-00
- EDSFF riser card - CSPP010: 9CSPP010NR-00
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00
- LAN bridge board - CLSH13: 9CLSH13NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000F-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NH223S10SR-RMA-A100
