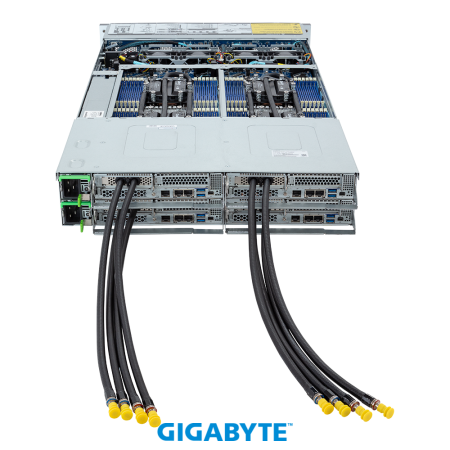

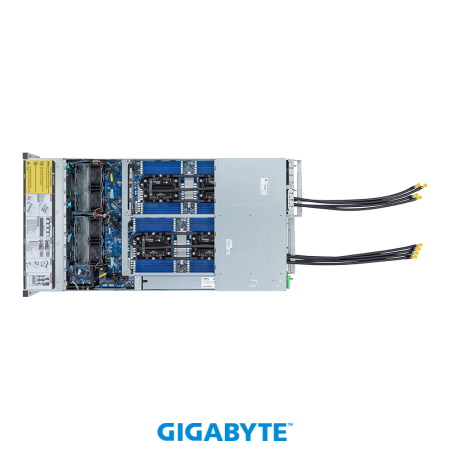

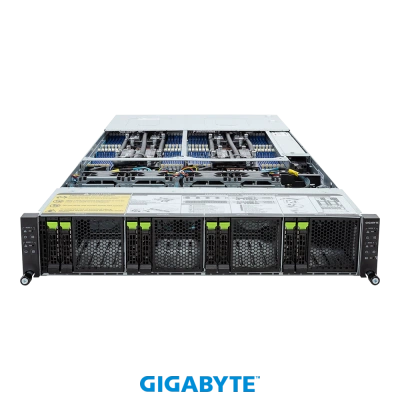

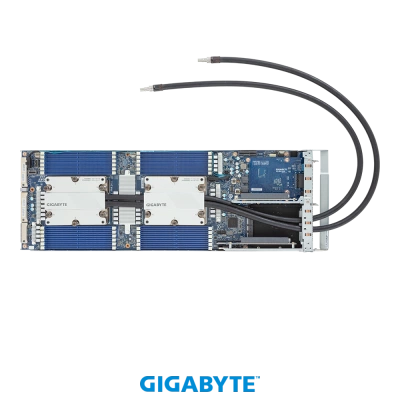

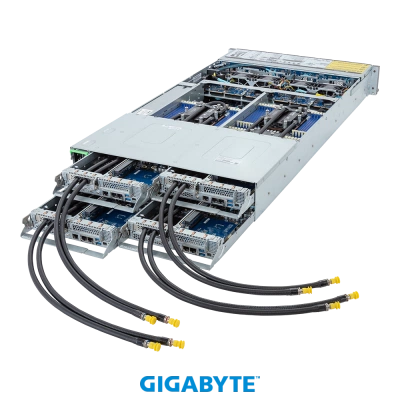

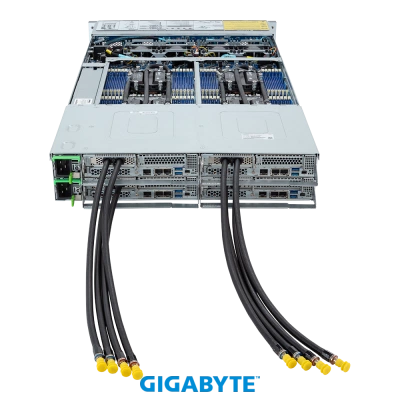

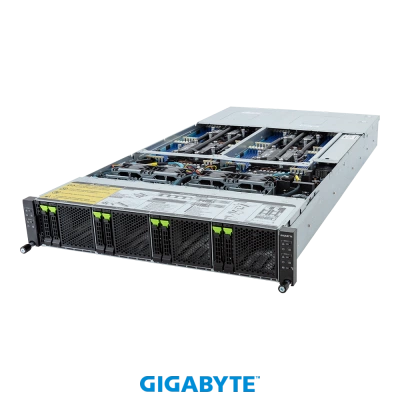

Описание товара GIGABYTE H273-Z81 (rev. LAN1)
High Density Server - AMD EPYC™ 9004 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA/SAS DLC

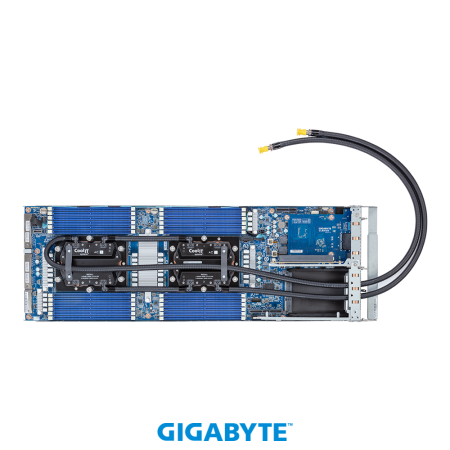

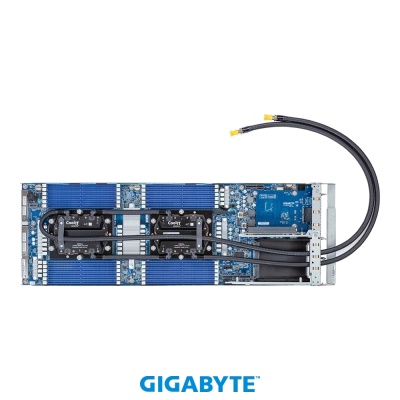

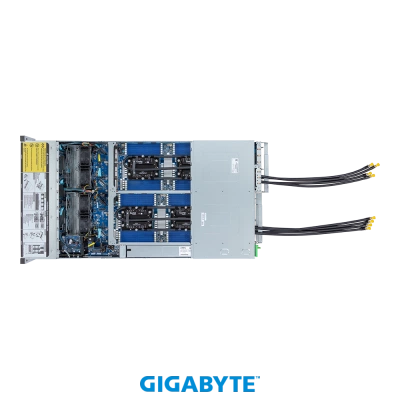

- Direct liquid cooling solution

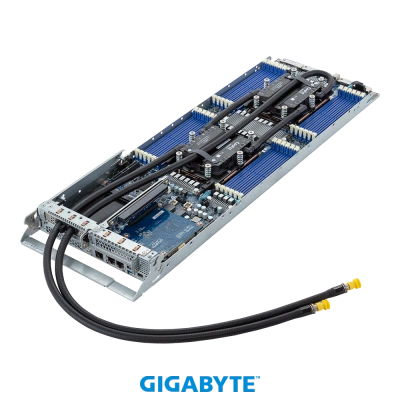

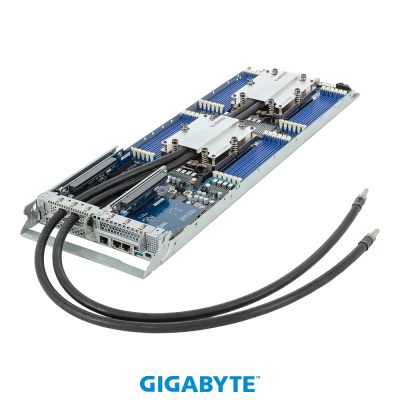

- 2U 4-node rear access server system
- AMD EPYC™ 9004 Series processors
- AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
- Dual processor per node, 5nm technology
- 12-Channel RDIMM DDR5 per processor, 96 x DIMMs
- Dual ROM Architecture
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x Dedicated management ports
- 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 4 x M.2 slots with PCIe Gen4 x4 interface (optional)
- 4 x LP PCIe Gen5 x16 slots
- 4 x OCP 3.0 Gen5 x16 slots
- Dual 2600W (240V) 80 PLUS Titanium redundant power supply
Технические характеристики
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 877
440 x 87.5 x 877
Motherboard
MZ83-HD0
CPU
AMD EPYC™ 9004 Series processors
AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128-core, 256 threads per processor
cTDP up to 400W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128-core, 256 threads per processor
cTDP up to 400W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Per Node:
2 x LGA 6096
Total:
8 x LGA 6096
Socket SP5
2 x LGA 6096
Total:
8 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
Per node:
24 x DIMM slots
Total:
96 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
24 x DIMM slots
Total:
96 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
LAN
Per node:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x Dedicated management ports
*Spanning Tree Protocol (STP) must be enabled in LAN switch function if using ring topology
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x Dedicated management ports
*Spanning Tree Protocol (STP) must be enabled in LAN switch function if using ring topology
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-on card
RAID
N/A
Expansion Slots
Per node:
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01R x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
Riser Card CRSH01R:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01R x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP192):
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22110 cards
Internal I/O
Per node:
1 x TPM header
1 x OCP 3.0 slot
1 x TPM header
1 x OCP 3.0 slot
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC status LED and reset button per system
Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Node Status LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x Node Status LEDs
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Node Status LED
Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x Node Status LEDs
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 2600W (240V) 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 15A, 50-60Hz
- DC Input:
- 240Vdc/ 15A
DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12.2Vsb/ 4.5A
- Max 2600W/ 200-220V~
+ 12.2V/ 213A
+ 12.2Vsb/ 4.5A
NOTE: The system power supply requires C19 power cord
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 15A, 50-60Hz
- DC Input:
- 240Vdc/ 15A
DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12.2Vsb/ 4.5A
- Max 2600W/ 200-220V~
+ 12.2V/ 213A
+ 12.2Vsb/ 4.5A
NOTE: The system power supply requires C19 power cord
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Citrix Hypervisor 8.2 LTSR CU1
VMware ESXi 8.0
Windows Server 2022 (x64)
Additional certifications:
Citrix Hypervisor 8.2 LTSR CU1
VMware ESXi 8.0
Windows Server 2022 (x64)
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note:
1) The ambient temperature and relative humidity of the environment depend on the inlet supply water temperature and the coolant flow rate.
2) If the relative humidity surpasses 60%, maintain the inlet water temperature between 40°C and 45°C to prevent condensation and ensure optimal system performance.
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note:
1) The ambient temperature and relative humidity of the environment depend on the inlet supply water temperature and the coolant flow rate.
2) If the relative humidity surpasses 60%, maintain the inlet water temperature between 40°C and 45°C to prevent condensation and ensure optimal system performance.
Weight
Net Weight: 66.6 kg
Gross Weight: 68.6 kg
Gross Weight: 68.6 kg
Packaging Dimensions
w/ liquid cooling kits: 1185 x 705 x 409 mm
w/o liquid cooling kits: 1176 x 709 x 322 mm
w/o liquid cooling kits: 1176 x 709 x 322 mm
Packaging Content
1 x H273-Z81

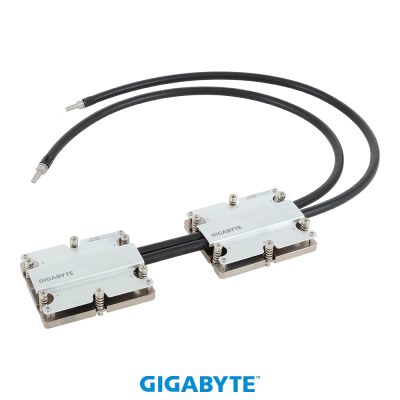

4 x CoolIT CPU liquid cooling kits
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
4 x CoolIT CPU liquid cooling kits
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit
Part Numbers
- Barebone w/ liquid cooling kits: 6NH273Z81DR000LAN1*
- Barebone w/o liquid cooling kits: 6NH273Z81DZ000LAN1*
- Motherboard: 9MZ83HD0UR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- CoolIT CPU liquid cooling kit: 25ST7-20000C-C4R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Fan module: 25ST2-88382P-S1R
- Riser card - CRSH01R: 9CRSH01RNR-00
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power Supply: 25EP0-226000-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- GIGABYTE DLC kit: 25H27-3Z80000-E06X (QPA:4)
- GIGABYTE 2U4N Manifold: 25H27-3Z80000-E07X (1 set per rack)
- CoolIT leak sensor board: 6NH273Z80S1000LAN11 (QPA:4)
- RMA packaging: 6NH273Z81SR-RMA-L100
- Barebone w/o liquid cooling kits: 6NH273Z81DZ000LAN1*
- Motherboard: 9MZ83HD0UR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- CoolIT CPU liquid cooling kit: 25ST7-20000C-C4R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Fan module: 25ST2-88382P-S1R
- Riser card - CRSH01R: 9CRSH01RNR-00
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power Supply: 25EP0-226000-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP192: 9CMTP192NR-00
- GIGABYTE DLC kit: 25H27-3Z80000-E06X (QPA:4)
- GIGABYTE 2U4N Manifold: 25H27-3Z80000-E07X (1 set per rack)
- CoolIT leak sensor board: 6NH273Z80S1000LAN11 (QPA:4)
- RMA packaging: 6NH273Z81SR-RMA-L100
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
