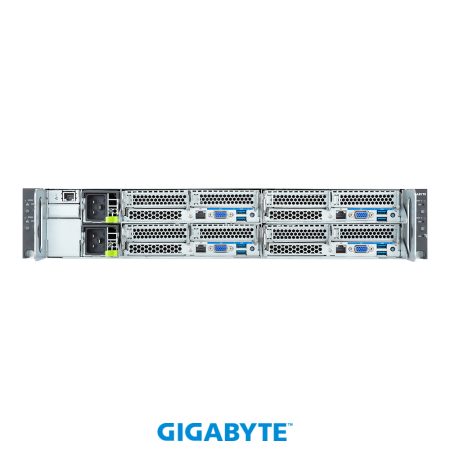

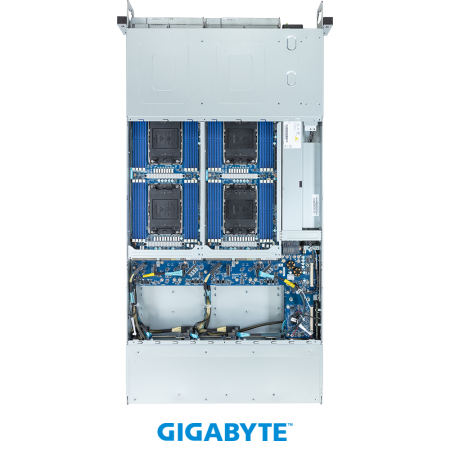

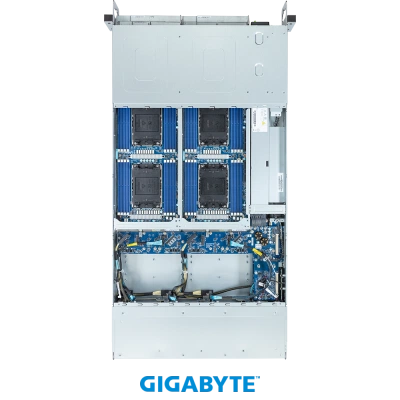

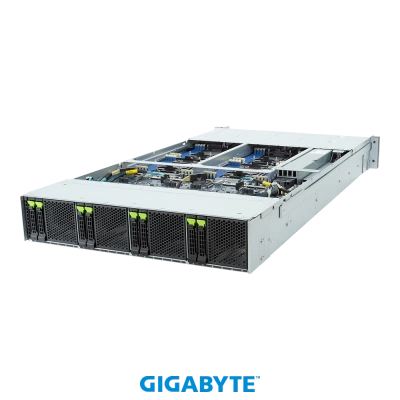

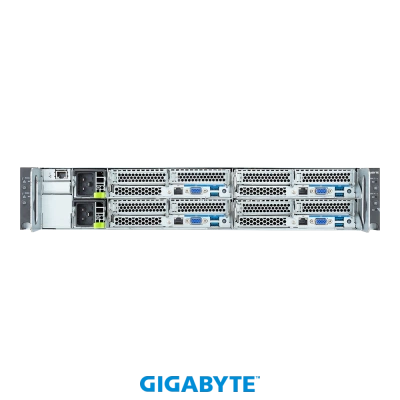

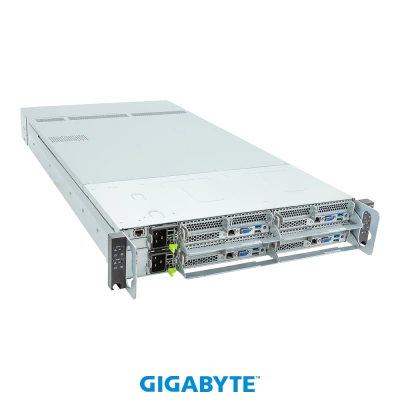

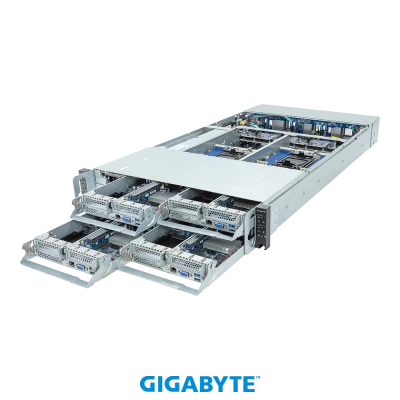

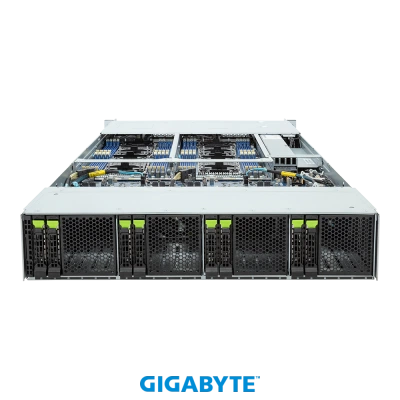

Описание товара GIGABYTE H263-S64 (rev. IAW1)
High Density Server - 5th/4th Gen Intel® Xeon® Scalable - 2U 4-Node 8-Bay Gen4 NVMe/SATA/SAS Immersion
- Single-Phase Immersion Ready Server

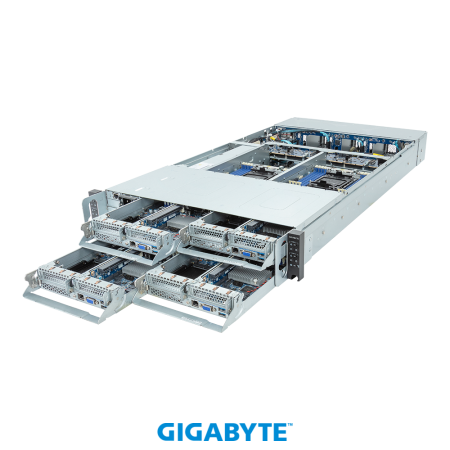

- 2U 4-node front access server system
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors per node
- Dual Intel® Xeon® CPU Max Series per node
- 8-Channel DDR5 RDIMM, 64 x DIMMs
- Dual ROM Architecture
- 1 x CMC port

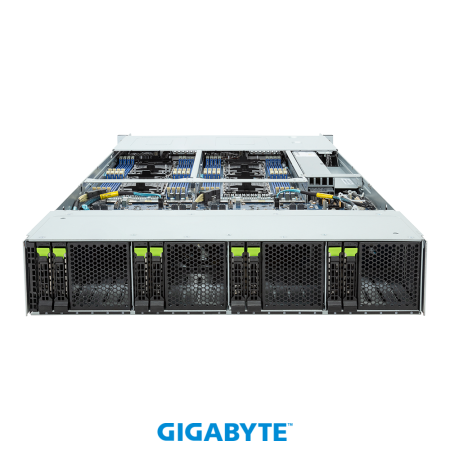

- 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 4 x M.2 slots with PCIe Gen4 x4 interface (optional)
- 4 x LP PCIe Gen5 x16 slots
- 4 x OCP 3.0 Gen5 x16 slots
- Dual 3000W 80 PLUS Titanium redundant power supply
Технические характеристики
Dimensions (WxHxD, mm)
2U 4-Node - Front access
440 x 87.5 x 840
440 x 87.5 x 840

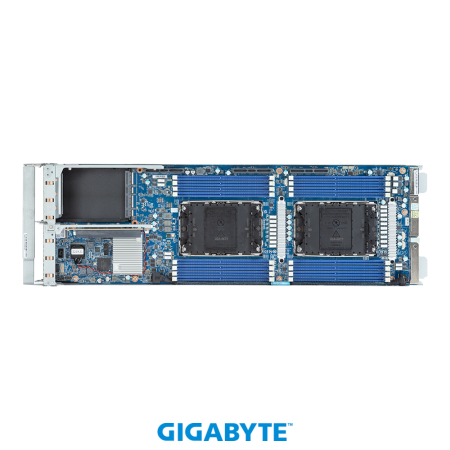

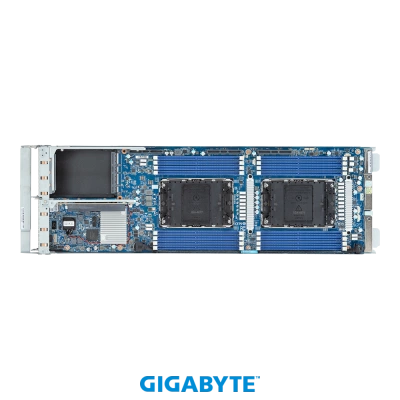

Motherboard
MS63-HD1
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor per node, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor per node, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
Per Node:
2 x LGA 4677
Total:
8 x LGA 4677
Socket E
2 x LGA 4677
Total:
8 x LGA 4677
Socket E
Chipset
Intel® C741
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
16 x DIMM slots
Total:
64 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
LAN
Per node:
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10/100/1000 Mbps Management LAN
*1 x CMC port
*Please refer to optional parts for ring topology support.
Note: Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
1 x 10/100/1000 Mbps Management LAN
Total:
4 x 10/100/1000 Mbps Management LAN
*1 x CMC port
*Please refer to optional parts for ring topology support.
Note: Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
SAS card is required for SAS devices support
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
Total:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1
Expansion Slots
Per node:
Riser Card CRSH01U:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0 (Optional EDSFF riser card for 2 x EDSFF/M.2 slots)
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP061):
- M-key
- PCIe Gen4 x4, from CPU_1
- Supports 2280/22110 cards
Total:
Riser Card CRSH01U x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0 (Optional EDSFF riser cards for 8 x EDSFF/M.2 slots)
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP061):
- M-key
- PCIe Gen4 x4, from CPU_1
- Support 2280/22110 cards
Riser Card CRSH01U:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0 (Optional EDSFF riser card for 2 x EDSFF/M.2 slots)
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Optional 1 x M.2 slot (CMTP061):
- M-key
- PCIe Gen4 x4, from CPU_1
- Supports 2280/22110 cards
Total:
Riser Card CRSH01U x 4:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0 (Optional EDSFF riser cards for 8 x EDSFF/M.2 slots)
4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function
Optional 4 x M.2 slots (CMTP061):
- M-key
- PCIe Gen4 x4, from CPU_1
- Support 2280/22110 cards
Internal I/O
Per node:
1 x TPM header
1 x VROC connector
1 x TPM header
1 x VROC connector
Top I/O
Per node:
2 x USB 3.2 Gen1
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
8 x USB 3.2 Gen1
4 x VGA
4 x MLAN
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC port
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC port, CMC status LED and reset button per system.
2 x USB 3.2 Gen1
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
8 x USB 3.2 Gen1
4 x VGA
4 x MLAN
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC port
*1 x CMC status LED
*1 x CMC reset button
*Only one CMC port, CMC status LED and reset button per system.
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
Available for 2+1 redundant power supply configuration (optional)
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
Available for 2+1 redundant power supply configuration (optional)
AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Ubuntu 22.04 LTS (x64)
Windows Server 2022 (x64)
Additional certifications:
Ubuntu 22.04 LTS (x64)
Windows Server 2022 (x64)
Operating Properties
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 43.26 kg
Gross Weight: 45.56 kg
Gross Weight: 45.56 kg
Packaging Dimensions
1179 x 700 x 380 mm
Packaging Content
1 x H263-S64-IAW1
8 x CPU heatsinks
24 x Carriers
8 x CPU heatsinks
24 x Carriers
Part Numbers
- Barebone package (5th/4th Gen): 6NH263S64DR000IBW1*
- Barebone package (4th Gen): 6NH263S64DR000IAW1*
- Motherboard: 9MS63HD1UR-000
- CPU heatsink: 25ST1-25320R-C1R/25ST1-45320F-A0R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Riser card - CRSH01U: 9CRSH01UNR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Power supply: 25EP0-23000K-L0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- M.2 riser card - CMTP061: 6NH263S64S1000IAW11
- Ring topology kit (10-kit package): 6NH263S62S1000AAN11
- RMA packaging: 6NH263S64SR-RMA-I100
- Barebone package (4th Gen): 6NH263S64DR000IAW1*
- Motherboard: 9MS63HD1UR-000
- CPU heatsink: 25ST1-25320R-C1R/25ST1-45320F-A0R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH081: 9CBPH081NR-00
- Riser card - CRSH01U: 9CRSH01UNR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Power supply: 25EP0-23000K-L0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- M.2 riser card - CMTP061: 6NH263S64S1000IAW11
- Ring topology kit (10-kit package): 6NH263S62S1000AAN11
- RMA packaging: 6NH263S64SR-RMA-I100
