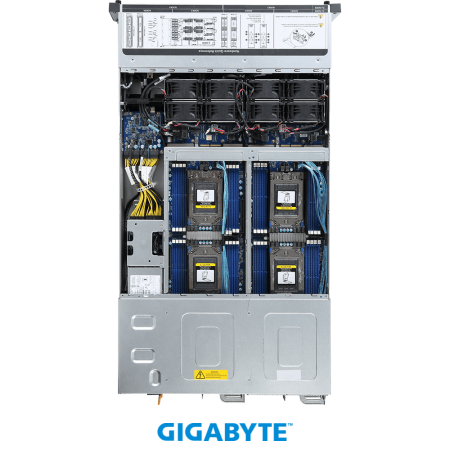

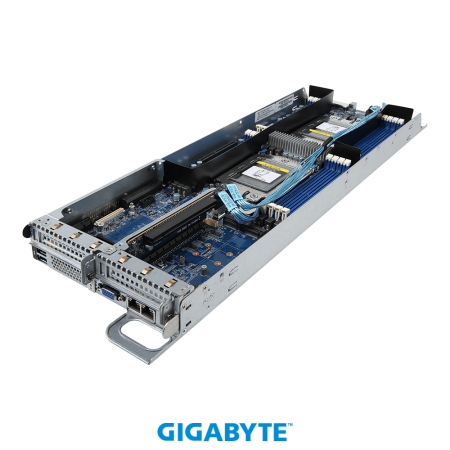

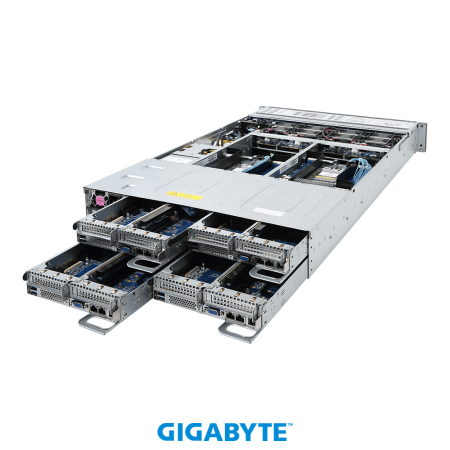

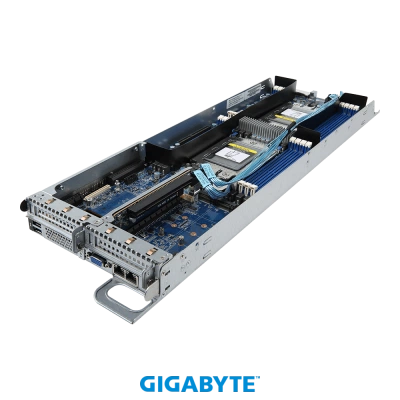

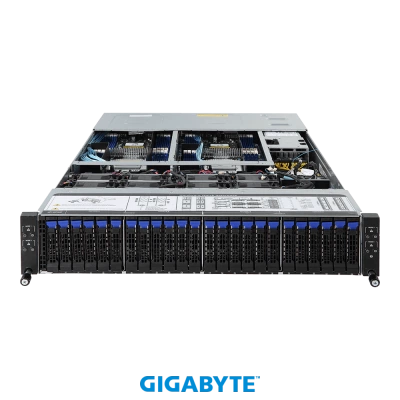

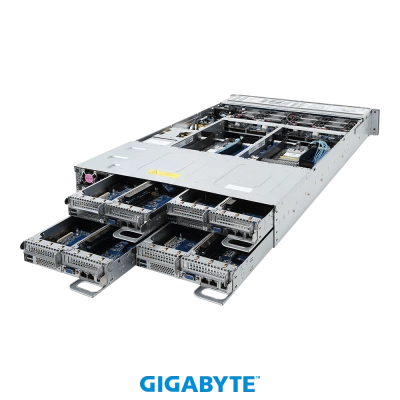

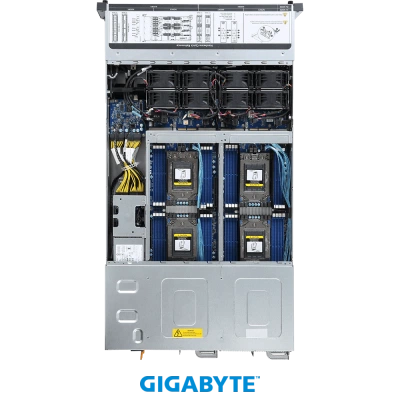

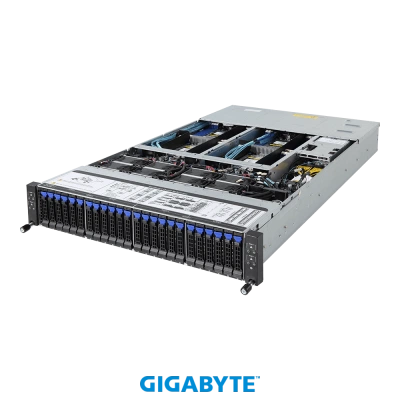

Описание товара GIGABYTE H261-Z60 (rev. A00)
HCI Server – AMD DP 2U 4-Node Server
- 2U 4-node with rear access server system
- AMD EPYC™ 7002 and 7001 series processors
- Dual processor per node, 7nm technology
- 8 x LGA 4094 sockets
- 8-Channel RDIMM/LRDIMM DDR4, 64 x DIMMs
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x Dedicated management ports
- 1 x CMC port
- 24 x 2.5" SATA hot-swappable bays
- 8 x M.2 slots with PCIe Gen3 x4 interface
- 8 x LP PCIe Gen3 x16 slots
- 4 x OCP 2.0 Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- 2200W 80 PLUS Platinum redundant power supply
- Optimized performance with Mellanox Infiniband EDR 100G or Ethernet 100G products
Технические характеристики
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87 x 820
440 x 87 x 820

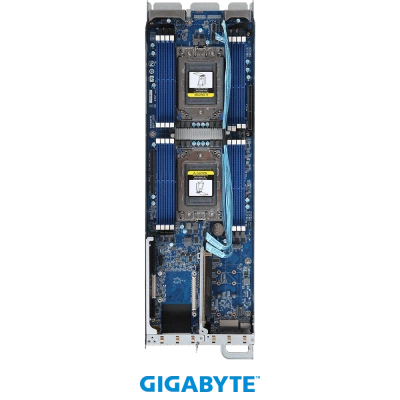

Motherboard
MZ61-HD0
CPU
AMD EPYC™ 7002 series processors
Dual processor per node, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 200W
Compatible with AMD EPYC™ 7001 series processors
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processor per node, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 200W
Compatible with AMD EPYC™ 7001 series processors
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Per Node:
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL list if running 3200 Mhz
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL list if running 3200 Mhz
LAN
Per node:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (1 x Intel® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port
*CMC: Chassis Management Controller, to monitor all status of computing nodes
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (1 x Intel® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port
*CMC: Chassis Management Controller, to monitor all status of computing nodes
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
6 x 2.5" SATA hot-swappable bays
or
4 x 2.5" SATA/SAS hot-swappable bays with SAS RAID Card
Total:
24 x 2.5" hot-swappable bays
SAS card is required for SAS devices support
6 x 2.5" SATA hot-swappable bays
or
4 x 2.5" SATA/SAS hot-swappable bays with SAS RAID Card
Total:
24 x 2.5" hot-swappable bays
SAS card is required for SAS devices support
RAID
Depends on SAS Add-on card
Expansion Slots
Per node:
2 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
Total:
8 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0
4 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
2 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
Total:
8 x PCIe x16 (Gen3 x16) low-profile slots, from CPU_0
4 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 120W if using M.2 device
Internal I/O
Per node:
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
*1 x CMC status LED
*Only one CMC status LED per system
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
*1 x CMC status LED
*Only one CMC status LED per system

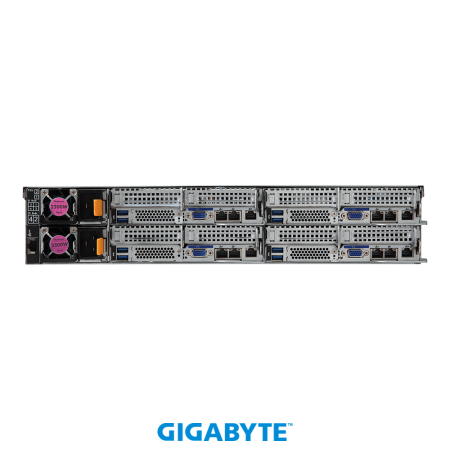

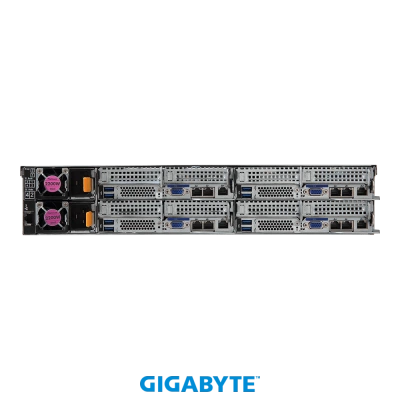

Rear I/O
Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x RJ45 MLAN
1 x ID LED
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x RJ45 MLAN
4 x ID LEDs
*1 x CMC port
*Only one CMC port per system
2 x USB 3.0
1 x VGA
2 x RJ45
1 x RJ45 MLAN
1 x ID LED
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x RJ45 MLAN
4 x ID LEDs
*1 x CMC port
*Only one CMC port per system
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply
2 x 2200W 80 PLUS Platinum redundant power supplies
AC Input:- 100-127V~/ 14A, 47-63Hz- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output:- Max 1200W/ 100-127V~+ 12.12V/ 95.6A+ 12Vsb/ 3.5A- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A+ 12Vsb/ 3.5A
NOTE:
1) The system power supply requires C19 power cord
2) 2000W 80 PLUS Titanium power supply as an option
AC Input:- 100-127V~/ 14A, 47-63Hz- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output:- Max 1200W/ 100-127V~+ 12.12V/ 95.6A+ 12Vsb/ 3.5A- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A+ 12Vsb/ 3.5A
NOTE:
1) The system power supply requires C19 power cord
2) 2000W 80 PLUS Titanium power supply as an option
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
For AMD EPYC™ 7002 series processors
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
For AMD EPYC™ 7001 series processors
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
For AMD EPYC™ 7001 series processors
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
35 kg (full packaging)
Packaging Dimensions
1167 x 700 x 309 mm
Packaging Content
1 x H261-Z60
8 x CPU heatsinks
1 x Rail Kit
8 x CPU heatsinks
1 x Rail Kit
Part Numbers
- Barebone package: 6NH261Z60MR-00-A*
- Motherboard: 9MZ61HD0NR-00-2*
- Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CBPH0O0: 9CBPH0O0NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power Supply: 25EP0-222001-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- Ring topology kit: 6NH23NR48SR-00 (optional)
- Motherboard: 9MZ61HD0NR-00-2*
- Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CBPH0O0: 9CBPH0O0NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power Supply: 25EP0-222001-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- Ring topology kit: 6NH23NR48SR-00 (optional)
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
