Артикул: TO25-S12

В наличии

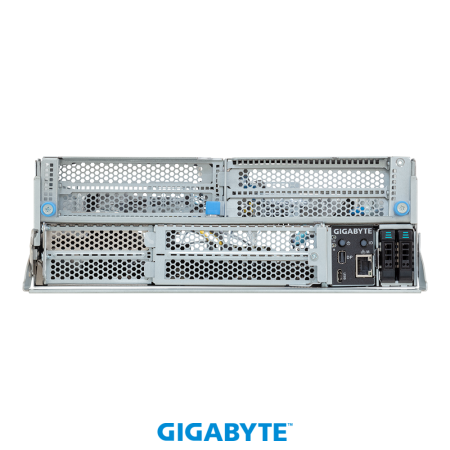

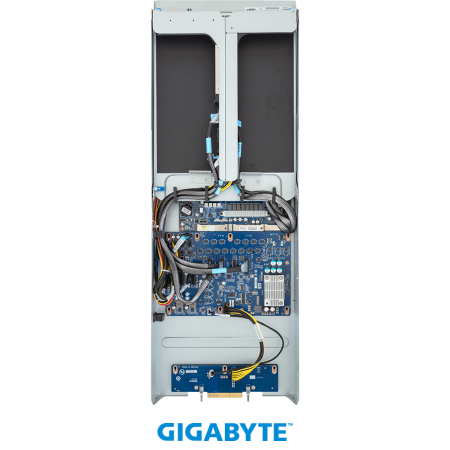

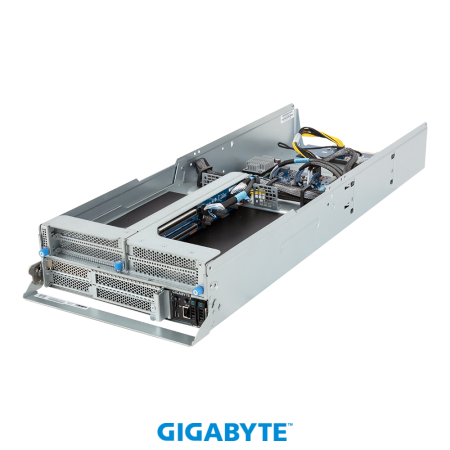

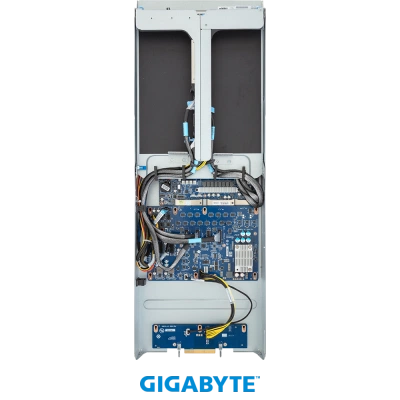

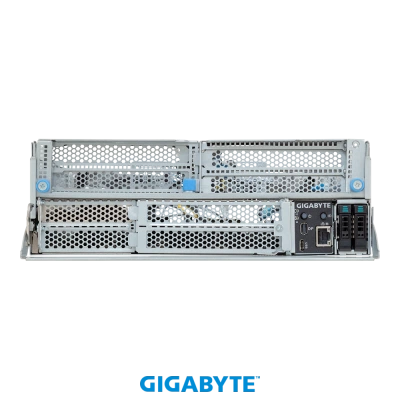

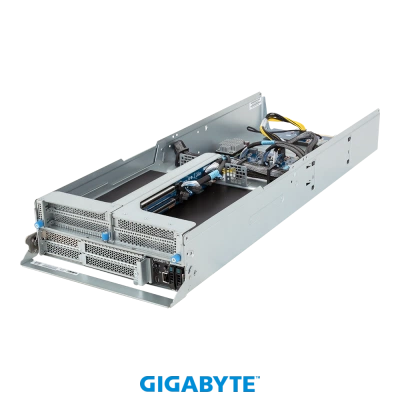

GIGABYTE TO25-S12 (rev. AA01)

Name: GIGABYTE TO25-S12 (rev. AA01)
Brand: GIGABYTE
SKU: TO25-S12

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@gigabyte-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 129-99-95

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара GIGABYTE TO25-S12 (rev. AA01)

ORv3 Compute Node - 5th/4th Gen Intel^® Xeon^® Scalable - 2OU 2-Node UP 2 x PCIe Gen5 GPUs

Supports up to 2 x Dual slot Gen5 GPUs
Single 5th/4th Gen Intel^® Xeon^® Scalable Processors
8-Channel RDIMM DDR5, 8 x DIMMs
Dual ROM Architecture
2 x E1.S NVMe hot-swappable bays
1 x M.2 slot with SATA interface
2 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHHL PCIe Gen5 x16 slots
1 x LP PCIe Gen5 x8 slot
48V DC Bus Bar power solution

Технические характеристики

Dimensions (WxHxD, mm)

2OU 2-Node
262.7 x 90 x 740

Open Rack Version

ORv3

Motherboard

MS13-HD0

CPU

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Single processor, TDP up to 250W

Memory

8 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel^® Xeon^®: Up to 5600 MT/s
4th Gen Intel^® Xeon^®: Up to 4800 MT/s

LAN

Front side:
1 x 10/100/1000 Mbps Management LAN

Storage

Front side:
2 x 9.5mm E1.S NVMe hot-swappable bays

SAS

N/A

RAID

N/A

Expansion Slots

Riser Card CORC210 x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, for GPUs

Riser Card CRSH02D:
- 2 x PCIe x16 (Gen5 x16) FHHL slots

Riser Card CRSH02E:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, disabled
- 1 x PCIe x16 (Gen5 x8) low-profile slot

1 x M.2 slot (CFPH010):
- M-key
- SATA, from PCH
- Supports 2242/2260/2280/22110 cards

Front I/O

1 x USB 3.2 Gen1 (Type-C)
1 x Mini-DP
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x ID LED

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

Supports up to 1600W

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)

System Fans

N/A

Packaging Dimensions

N/A

Packaging Content

1 x TO25-S12-AA01
1 x CPU heatsink
2 x GPU power cables (CPU 8pin to CPU 8pin, 400mm)
3 x Carrier clips

Part Numbers

- Barebone package (5th/4th Gen): 6NTO25S12DR000AB01*
- Barebone package (4th Gen): 6NTO25S12DR000AA01*
- Motherboard: 9MS13HD0UR-000
- CPU heatsink: 25ST1-143102-C1R
- Front panel board - COFP111: 9COFP111NR-00
- Re-driver card - CORC211: 9CORC211NR-00
- Riser card - CORC210: 9CORC210NR-00
- Riser card - CRSH02D: 9CRSH02DNR-00
- Riser card - CRSH02E: 9CRSH02ENR-00
- EDSFF base board - COBP721: 9COBP721NR-00
- EDSFF riser card - CSPP010: 9CSPP010NR-00
- I/O board with M.2 slot - CFPH010: 9CFPH010NR-00
- GPU power cable (CPU 8pin, 400mm): 25CRI-400303-Y4R

No. of Bus Bars

1 x 48V Bus Bar
