GIGABYTE TO23-H60 (rev. 100)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE TO23-H60 (rev. 100)

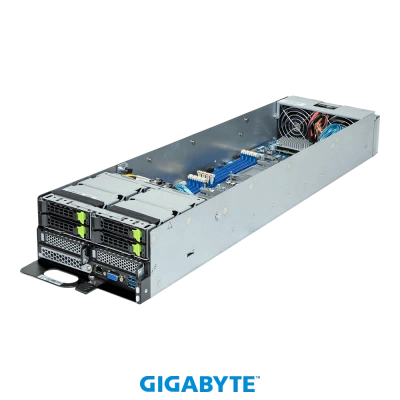

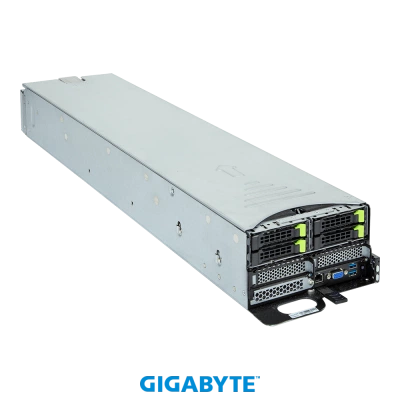

ORv3 Compute Node - 3rd Gen Intel® Xeon® Scalable - 2OU 3-Node DP 4-Bay Gen4 NVMe/SATA/SAS
- 3rd Gen Intel® Xeon® Scalable Processors
- Dual processor, LGA 4189
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- 1 x Dedicated management port
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 2 x LP PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- 48V DC Bus Bar power solution
Технические характеристики
Dimensions (WxHxD, mm)
2OU 3-Node
180 x 90 x 740
180 x 90 x 740
Open Rack Version
ORv3

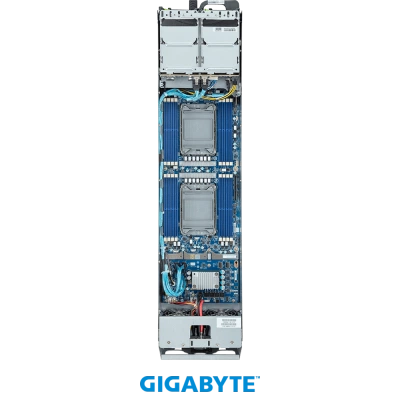

Motherboard
MH62-HD2
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Memory
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
Front side:
1 x 10/100/1000 Management LAN
1 x 10/100/1000 Management LAN
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
NCSI function supported
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
NCSI function supported

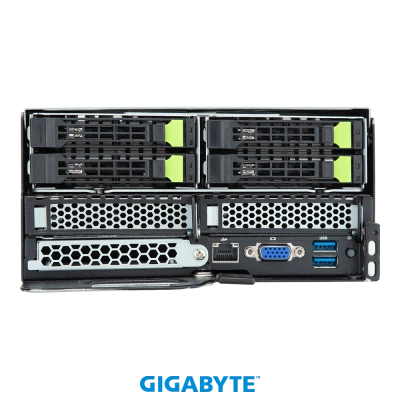

Front I/O
2 x USB 3.2 Gen1
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Power Supply
Supports up to 1600W
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings

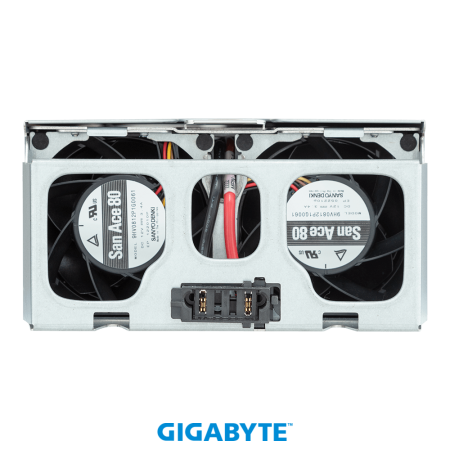

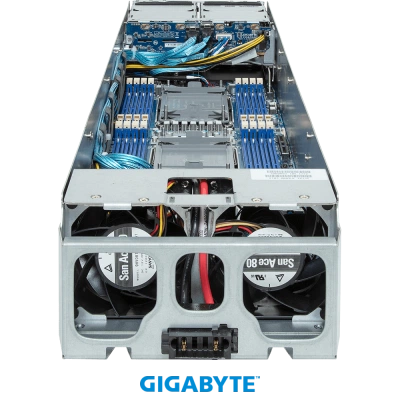

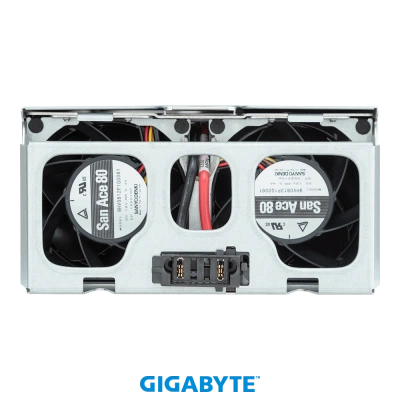

System Fans
2 x 80x80x38mm (14,900rpm)
Packaging Dimensions
995 x 358 x 270 mm
Packaging Content
1 x TO23-H60
2 x CPU heatsinks
2 x CPU heatsinks
Part Numbers
- Barebone package: 6NTO23H60MR-00-1*
- Motherboard: 9MH62HD2NR-00
- CPU heatsink: 25ST1-35320C-C1R
- Front panel board - COFP212: 9COFP212NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-883825-S0S
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
Optional parts:
- RMA packaging: 6NTO23H60SR-RMA-A100
- Motherboard: 9MH62HD2NR-00
- CPU heatsink: 25ST1-35320C-C1R
- Front panel board - COFP212: 9COFP212NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-883825-S0S
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
Optional parts:
- RMA packaging: 6NTO23H60SR-RMA-A100
No. of Bus Bars
1 x 48V Bus Bar
