Артикул: H242-Z11

В наличии

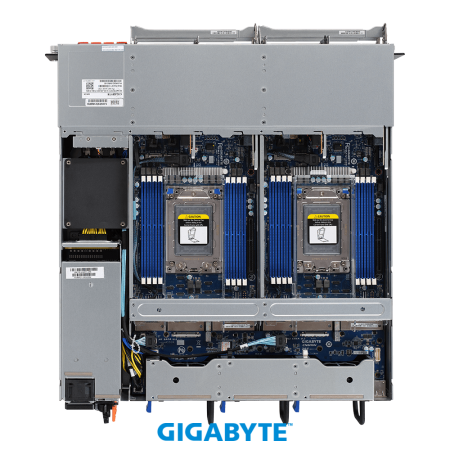

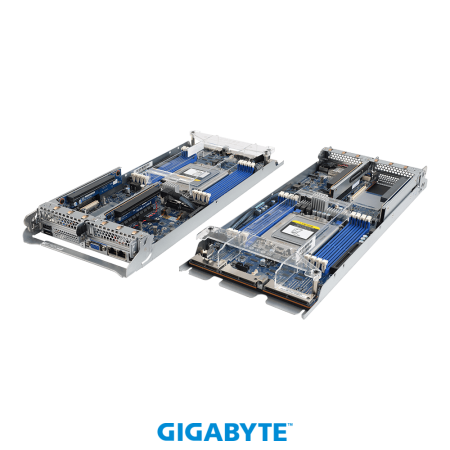

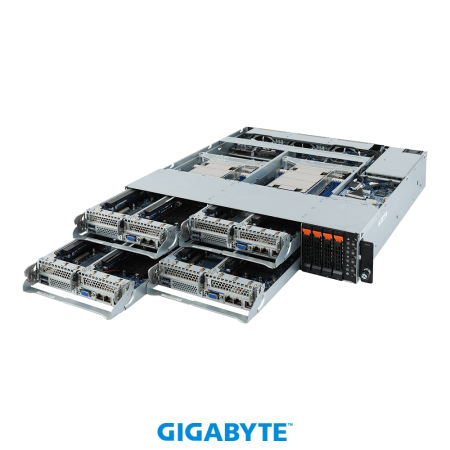

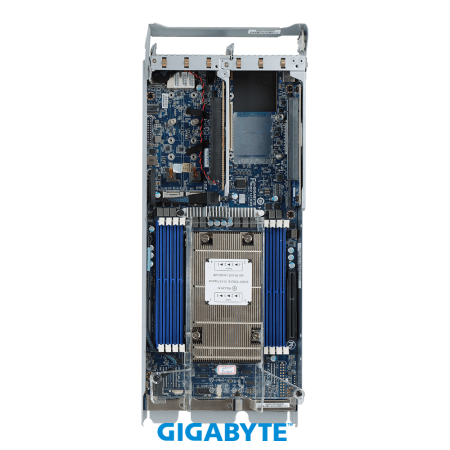

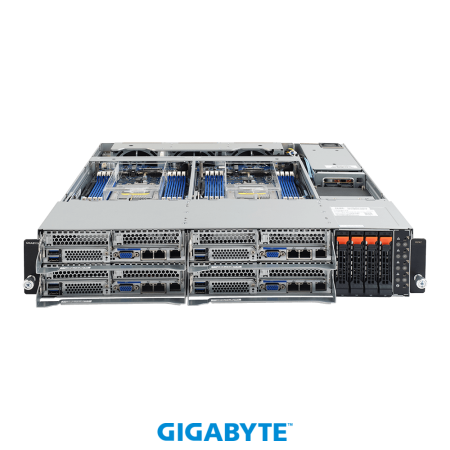

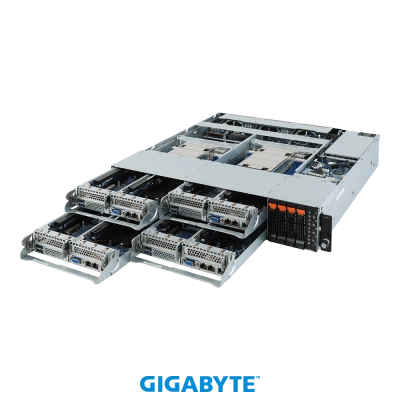

GIGABYTE H242-Z11 (rev. 100)

Name: GIGABYTE H242-Z11 (rev. 100)
Brand: GIGABYTE
SKU: H242-Z11

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@gigabyte-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 129-99-95

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара GIGABYTE H242-Z11 (rev. 100)

HCI Server - AMD EPYC™ 7002 - 2U 4-Node UP 4-Bay NVMe/SATA

Supports 5G network infrastructure
2U 4-node front access server system for Edge Computing
AMD EPYC™ 7002 Series processors
Single processor per node, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
8 x 1Gb/s LAN ports (Intel^® I350-AM2)
4 x 2.5" Gen3 NVMe/SATA hot-swappable bays
8 x M.2 slots with PCIe Gen3 x4 interface
4 x LP PCIe Gen4 x16 slots
4 x LP PCIe Gen3 x16 slots
4 x OCP 2.0 Gen3 x16 mezzanine slots
Aspeed^® AST2500 remote management controller
Dual 1300W 80 PLUS Platinum redundant power supply

Технические характеристики

Dimensions (WxHxD, mm)

2U 4-Node - Front access
440 x 87.5 x 475

Motherboard

MZ12-HD0

CPU

AMD EPYC™ 7002 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports cTDP 280W at ambient 30°C

Compatible with AMD EPYC™ 7001 Series processors

Socket

Per Node:
1 x LGA 4094

Total:
4 x LGA 4094

Socket SP3

Chipset

System on Chip

Memory

Per node:
8 x DIMM slots

Total:
32 x DIMM slots

DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz

LAN

Per node:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
NCSI function supported

1 x Dedicated management port

Total:
8 x 1GbE LAN ports (4 x Intel^® I350-AM2)
NCSI function supported

4 x Dedicated management ports

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Per node:
1 x 2.5" Gen3 NVMe/SATA hot-swappable bay

Total:
4 x 2.5" Gen3 NVMe/SATA hot-swappable bays

SAS

N/A

RAID

N/A

Expansion Slots

Per node:
1 x PCIe x16 (Gen4 x16) low-profile slot
1 x PCIe x16 (Gen3 x16) low-profile slot

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards

Total:
4 x PCIe x16 (Gen4 x16) low-profile slots
4 x PCIe x16 (Gen3 x16) low-profile slots

4 x OCP 2.0 mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 with NCSI supported)

8 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards

Internal I/O

Per node:
2 x M.2 slots
1 x USB 3.0 header
1 x TPM header
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Front I/O

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x Reset button
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x Reset buttons
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
4 x ID LEDs

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

Dual 1300W 80 PLUS Platinum redundant power supply

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

System Fans

3 x 80x80x38mm (16,300rpm)
1 x 40x40x28mm (25,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

857 x 670 x 280 mm

Packaging Content

1 x H242-Z11
4 x CPU heatsinks
1 x 2-Section Rail Kit

Part Numbers

- Barebone package: 6NH242Z11MR-00-1*
- Motherboard: 9MZ12HD0NR-00
- 2-Section Rail kit: 25HB2-AA6107-K0R
- Backplane board - CBPH043: 9CBPH043NR-00
- CPU heatsink: 25ST1-44320J-A0R
- Fan module: 25ST2-44282D-D0R/25ST2-88382E-D0R
- Power Supply: 25EP0-213006-F3S

Optional parts:

- M.2 expansion card - CMTP051: 9CMTP051NR-00
- CMC Kit: 6NH242Z13SR-00
- M.2 heatsink kit:6NH242Z17SR-00-100
- RMA packaging: 6NH242Z11SR-RMA-A100
