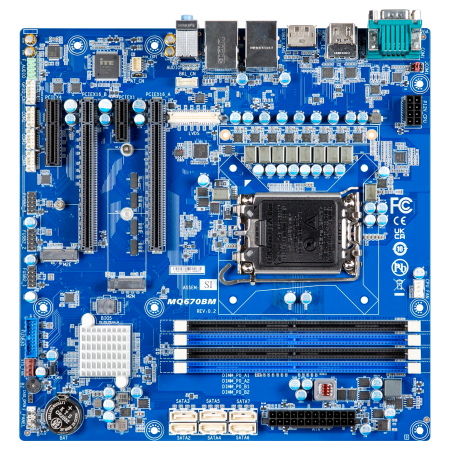

GIGABYTE uATX-Q670B
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE uATX-Q670B
uATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ i Processors, Dual channel DDR5 memory, PCIe, 6 x COM, 10 x USB, 4 x SATA 6Gb/sSupport 14th/13th/12th Generation Intel® Core™ i Processors Intel® Q670 Chipset Dual Channel DDR5, 4 x DIMMs 1 x GbE LAN Port 1 x 2.5GbE LAN Port 6 x SATA 6Gb/s Ports Up to 4 x PCIe expansion slots 12 x USB Ports 1 x COM Port (RS-232/422/485 & RI/5V/12V) 3 x COM Ports (RS-232)
Технические характеристики
Form Factor
Micro ATX
244W x 244D(mm)
244W x 244D(mm)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1700 package
TDP under 125W
Intel® Core™ i9/i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1700 package
TDP under 125W
Socket
1 x LGA 1700
Chipset
Intel® Q670 Express Chipset
Memory
4 x DDR5 DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 4800 MHz memory modules
Support Dual channel DDR5 4800 MHz memory modules
LAN
1 x 2.5GbE LAN ports (Intel I226V) 1 x GbE LAN ports (Intel I219LM, vPro support)
Video
Integrated Graphics Processor - depends on CPU:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(4 independent display outputs)
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(4 independent display outputs)
Audio
Realtek® ALC897
Expansion Slots
1 x PCIe x16 (Gen4 x16/x8 from CPU),
1 x PCIe x1 (Gen3 x1)
1 x PCIe x16 (Gen3 0/x8 from CPU, share with slot 1), 1 x PCIe x4 (Gen3 x4 from PCH)
1 x M.2 2230 E-Key (PCIe x1, USB2.0)
1 x 2280/2242 M.2 M-Key (PCIe Gen4 x4, SATA 6Gb/s)
1 x PCIe x1 (Gen3 x1)
1 x PCIe x16 (Gen3 0/x8 from CPU, share with slot 1), 1 x PCIe x4 (Gen3 x4 from PCH)
1 x M.2 2230 E-Key (PCIe x1, USB2.0)
1 x 2280/2242 M.2 M-Key (PCIe Gen4 x4, SATA 6Gb/s)
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Case open header
6 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
3 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Case open header
6 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
3 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

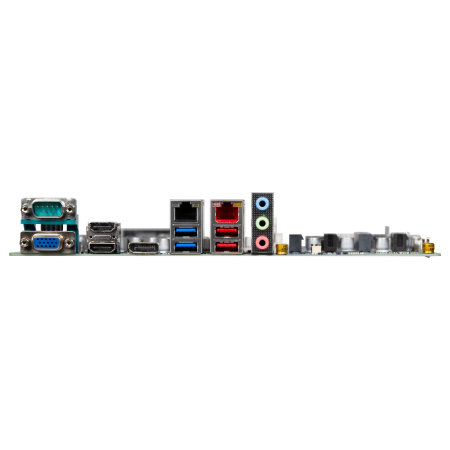

Rear I/O
3 x Audio Jacks (Line in, Line out, Mic in)
2 x HDMI
1 x DisplayPort
1 x VGA
1 x COM (RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN ports2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
2 x HDMI
1 x DisplayPort
1 x VGA
1 x COM (RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN ports2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
INFINEON SLB9670VQ2.0
OS Supported
Windows 10/11 (x64)
Storage
4 x SATA 6Gb/s Ports (RAID 0/1/5/10)
