Артикул: SDM-1135G7L
Наличие уточняйте

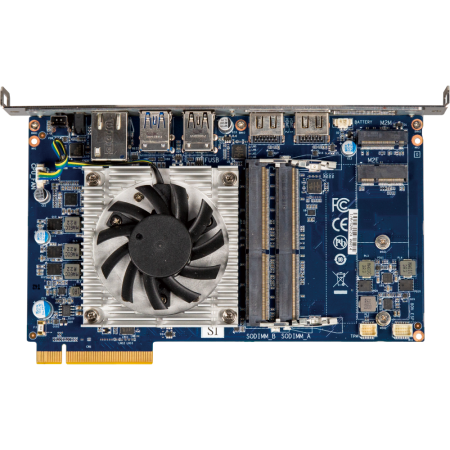

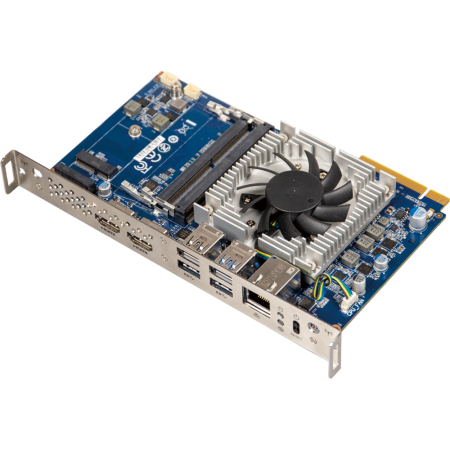

GIGABYTE SDM-1135G7L
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE SDM-1135G7L
Intel® Smart Display Module with Intel® 11th Generation Core™ i5-1135G7 Processor
(For more product information, please contact us at sales@gigaipc.com)
Технические характеристики
Form Factor
SDM-Large
175W x 100D (mm)
175W x 100D (mm)
Operating Properties
Operating temperature: 0°C to 55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.20 GHz
TDP 28W
10nm SuperFin, 4 cores, 8 threads, up to 4.20 GHz
TDP 28W
Socket
1 x FCBGA1449
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Support Dual Channel DDR4 3200 MHz memory modules
LAN
1 x GbE LAN Port (Intel® I219V)
Video
Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:
1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
(4 independent display outputs)
1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
(4 independent display outputs)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 2230 M.2 E-Key

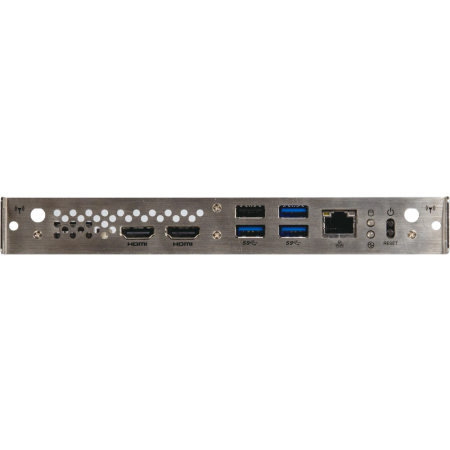

Rear I/O
2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
1 x RJ45 LAN Port
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
1 x TPM header
OS Supported
Windows® 10 (x64)
Packaging Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Packing Capacity: 10pcs
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Ordering Information
9MTGU5ALMR-SI (Box packing)
