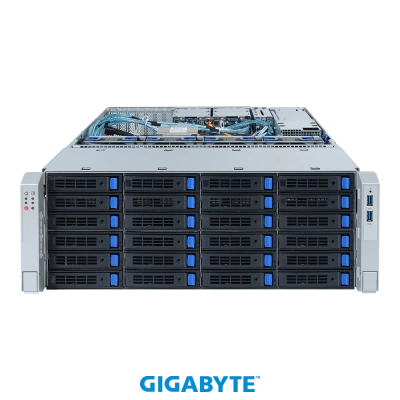

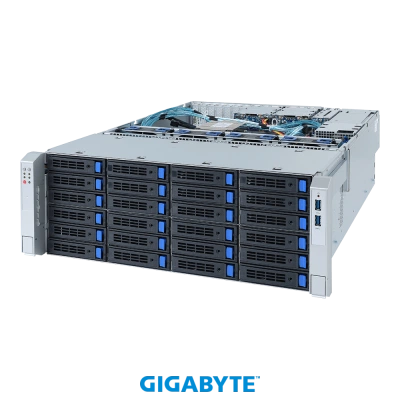

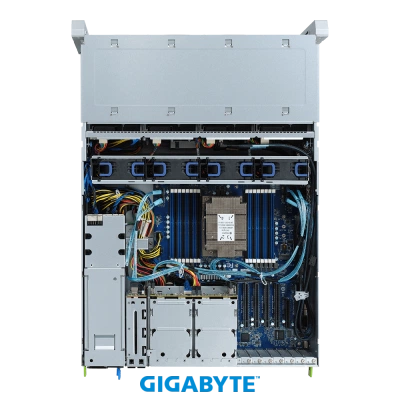

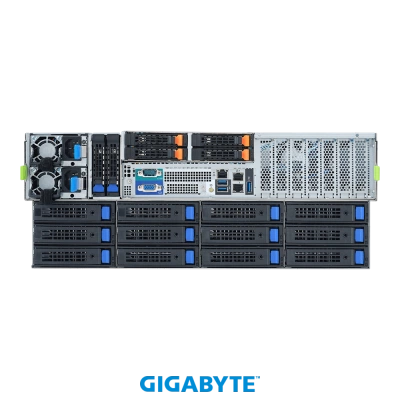

Описание товара GIGABYTE S452-Z30 (rev. 100)
Storage Server - AMD EPYC™ 7001/7002 - 4U UP 42-Bay Gen3 NVMe/SATA/SAS
- AMD EPYC™ 7002 Series processors
- Single processor, LGA 4094
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x Dedicated management port
- 36 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 4 x 2.5" Gen3 NVMe/SATA hot-swappable bays on the rear side
- 2 x 2.5" SATAhot-swappable bays on the rear side
- SAS expander with 12Gb/s transfer speed
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-100)
- 1+1 1300W 80 PLUS Platinum redundant power supplies (-101)
Технические характеристики
Dimensions (WxHxD, mm)
4U
482.6 x 177 x 625
482.6 x 177 x 625
Motherboard
MZ32-AR0
CPU
AMD EPYC™ 7002 Series processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 180W
Compatible with AMD EPYC™ 7001 Series processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 180W
Compatible with AMD EPYC™ 7001 Series processors
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 Mbps Management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays
Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
4 x 2.5" Gen3 NVMe/SATA hot-swappable bays*
2 x 2.5" SATA hot-swappable bays*
*Rear side 2.5" bays only support Solid State Drives due to thermal consideration.
1 x Broadcom SAS35x48 expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s
Default configuration supports:
4 x NVMe/SATA and 2 x SATA devices available on the rear side
SAS card is required to enable the drive bays
Suggested 12Gb/s SAS cards:
CRA4648
CSA4648
24 x 3.5"/2.5" SATA/SAS hot-swappable bays
Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
4 x 2.5" Gen3 NVMe/SATA hot-swappable bays*
2 x 2.5" SATA hot-swappable bays*
*Rear side 2.5" bays only support Solid State Drives due to thermal consideration.
1 x Broadcom SAS35x48 expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s
Default configuration supports:
4 x NVMe/SATA and 2 x SATA devices available on the rear side
SAS card is required to enable the drive bays
Suggested 12Gb/s SAS cards:
CRA4648
CSA4648
SATA
Supported with enterprise devices only
SAS
Supported via SAS add-in card
RAID
Depends on SAS add-in card
Expansion Slots
Slot_6:PCIe x16 (Gen4 x16) low-profile slot
Slot_5:PCIe x16 (Gen4 x8) low-profile slot
Slot_4:PCIe x16 (Gen4 x16) low-profile slot
Slot_3:PCIe x16 (Gen4 x16) low-profile slot
Slot_2:PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1:PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)*
NCSI function supported
*Note: If OCP 2.0 mezzanine slot is required, rear side 4-bay cage needs to be removed.
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Slot_5:PCIe x16 (Gen4 x8) low-profile slot
Slot_4:PCIe x16 (Gen4 x16) low-profile slot
Slot_3:PCIe x16 (Gen4 x16) low-profile slot
Slot_2:PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1:PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)*
NCSI function supported
*Note: If OCP 2.0 mezzanine slot is required, rear side 4-bay cage needs to be removed.
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power conndectors
10 x SlimSAS connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power conndectors
10 x SlimSAS connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s
Rear side - COBPU43: PCIe Gen3 x4 or SATA 6Gb/s
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s
Rear side - COBPU43: PCIe Gen3 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1200W 80 PLUS Platinum redundant power supplies (-100)
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-101)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-101)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 30.18 kg
Gross Weight: 53.7 kg
Gross Weight: 53.7 kg
Packaging Dimensions
843 x 610 x 290 mm
Packaging Content
1 x S452-Z30
1 x CPU heatsink
1 x 3-Section Rail kit
1 x CPU heatsink
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NS452Z30MR-00-1*
- Motherboard: 9MZ32AR0NR-00
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBPD0C0: 9CBPD0C0NR-00
- Backplane board - CBPD4O0: 9CBPD4O0NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Backplane board - COBPU43: 9COBPU43NR-00
- Fan module: 25ST2-883829-D0R
- 1200W Power supply (-100): 25EP0-212003-D0S
- 1300W Power supply (-101): 25EP0-21300B-F3S
Optional parts:
- RMA packaging: 6NS452Z30SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBPD0C0: 9CBPD0C0NR-00
- Backplane board - CBPD4O0: 9CBPD4O0NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Backplane board - COBPU43: 9COBPU43NR-00
- Fan module: 25ST2-883829-D0R
- 1200W Power supply (-100): 25EP0-212003-D0S
- 1300W Power supply (-101): 25EP0-21300B-F3S
Optional parts:
- RMA packaging: 6NS452Z30SR-RMA-A100
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
