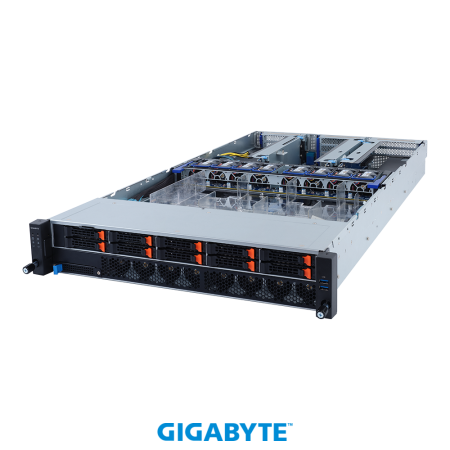

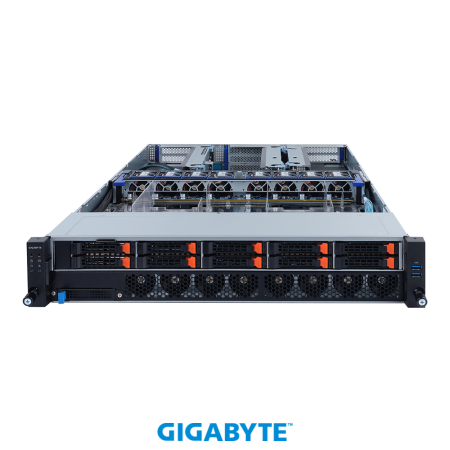

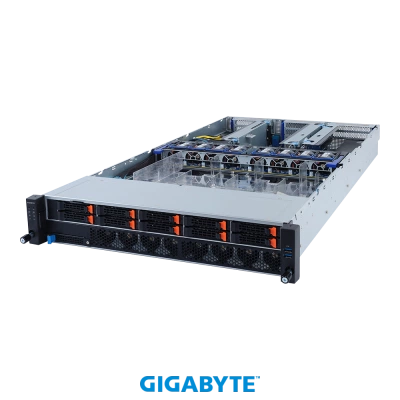

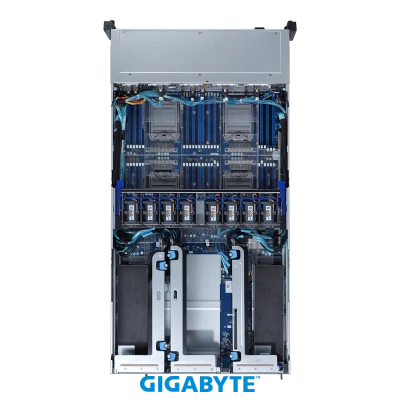

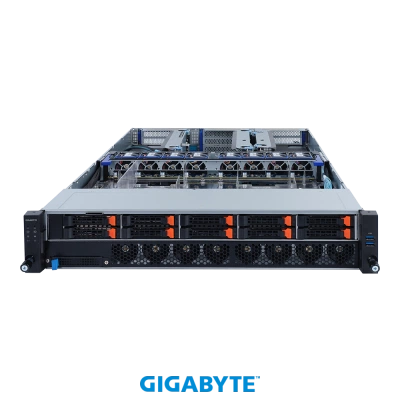

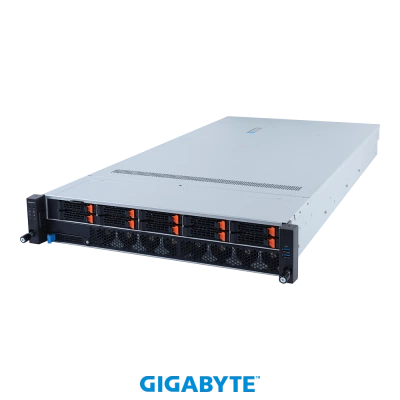

GIGABYTE R292-4S1 (rev. 100)

Name: GIGABYTE R292-4S1 (rev. 100)
Brand: GIGABYTE
SKU: R292-4S1

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@gigabyte-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 129-99-95

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара GIGABYTE R292-4S1 (rev. 100)

4-Way Rack Server - 3rd Gen Intel^® Xeon^® Scalable - 2U QP 10-Bay Gen3 NVMe/SATA/SAS

3rd Gen Intel^® Xeon^® Scalable Processors
Quad processor, LGA 4189
6-Channel RDIMM/LRDIMM DDR4 per processor, total 48 x DIMMs
Supports Intel^® Optane™ Persistent Memory 200 series
2 x 10Gb/s LAN ports via Intel^® X710-AT2
1 x Dedicated management port
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
1 x M.2 slot with PCIe Gen3 x2 interface
8 x FHFL PCIe Gen3 x16 slots
1 x OCP 3.0 Gen3 x16 slot on the front side
1+1 3200W 80 PLUS Platinum redundant power supplies

Технические характеристики

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 858

Motherboard

MRQ2-4S0

CPU

3rd Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® Platinum 8300 Processors
Intel^® Xeon^® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 250W

Socket

4 x LGA 4189
Socket P5

Chipset

Intel^® C621A Chipset

Memory

Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Supports Intel^® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s

LAN

Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel^® X710-AT2)
NCSI function supported

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays

SAS card is required for SAS devices support

SATA

Supported

SAS

Depends on SAS add-in card

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

Riser Card CRS202A:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1

Riser Card CRS2040:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3

Riser Card CRS2029:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3

1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards

Internal I/O

10 x SlimSAS 8i connectors (Gen3 x8)
1 x VROC connector

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs

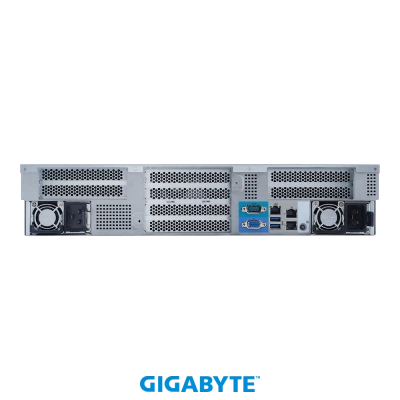

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 3200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed^® AST2500 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)

OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
SUSE Linux Enterprise Server 15 SP3

Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

16 x 40x40x56mm (29,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1177 x 670 x 291 mm

Packaging Content

1 x R292-4S1
4 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR2924S1MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
