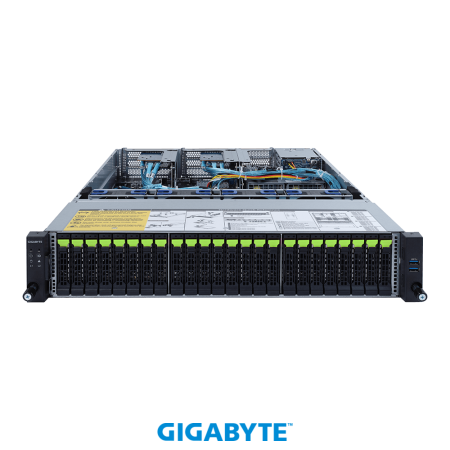

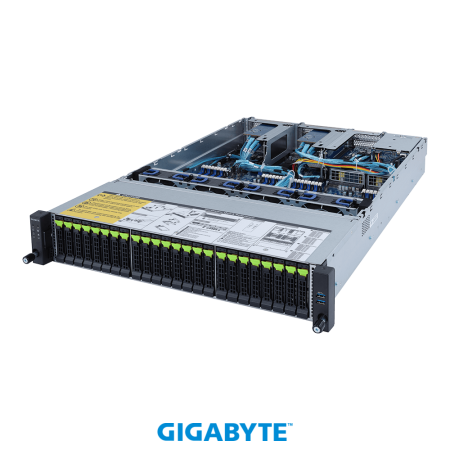

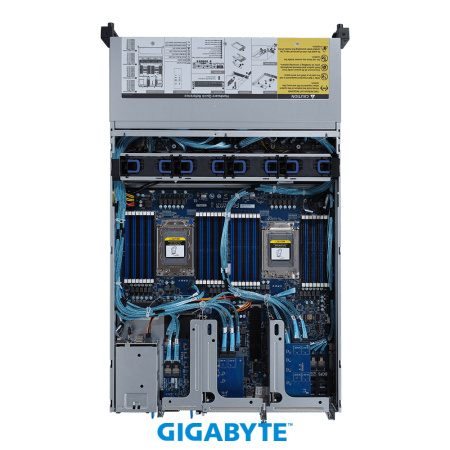

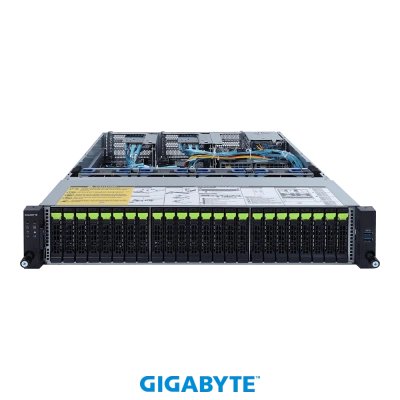

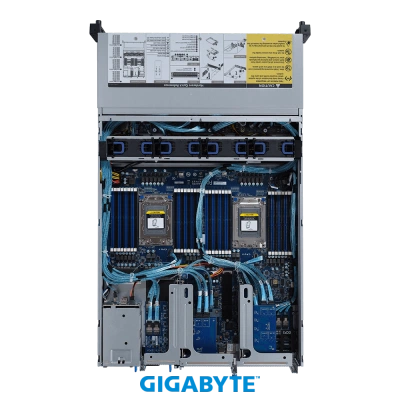

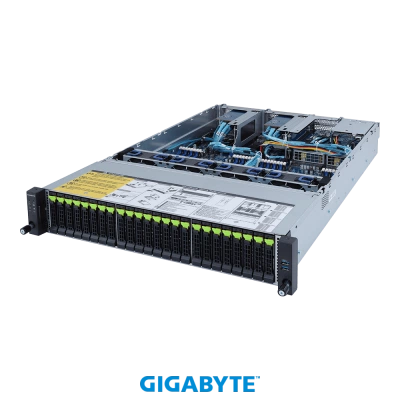

Описание товара GIGABYTE R282-Z94 (rev. A00)
Rack Server - AMD EPYC™ 7003 - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
- Hardware-level root of trust
- AMD EPYC™ 7003 Series processors
- AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 24 x 2.5" Gen4 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on rear side
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- 1+1 1600W 80 PLUS Platinum redundant power supplies
Технические характеристики
Dimensions (WxHxD, mm)
2U438 x 87 x 730
Motherboard
MZ92-FS1 Rev. 3.0
CPU
AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 12 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
24 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 12 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
SAS
N/A
RAID
N/A
Expansion Slots
Riser Card CRS2015:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3134 - 4 x NVMe HBA
Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0, occupied by 2 x CNV3132 - 2 x NVMe HBAs
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, occupied by 2 x CNV3132 - 2 x NVMe HBAs
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134 - 4 x NVMe HBA
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132 - 2 x NVMe HBA
Supports NCSI function
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3134 - 4 x NVMe HBA
Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0, occupied by 2 x CNV3132 - 2 x NVMe HBAs
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, occupied by 2 x CNV3132 - 2 x NVMe HBAs
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134 - 4 x NVMe HBA
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132 - 2 x NVMe HBA
Supports NCSI function
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

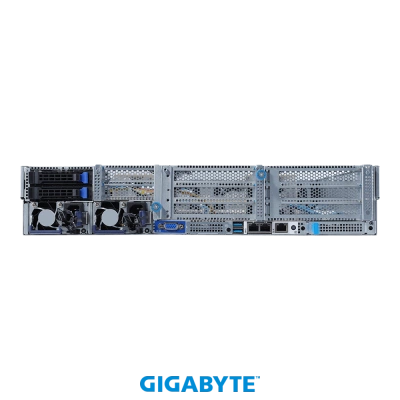

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O8: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O8: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1600W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~+ 12V/ 81.5A+ 12Vsb/ 2.5A- Max 1600W at 200-240V~ or 240Vdc Input+ 12V/ 133A+ 12Vsb/ 2.5A
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~+ 12V/ 81.5A+ 12Vsb/ 2.5A- Max 1600W at 200-240V~ or 240Vdc Input+ 12V/ 133A+ 12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°COperating humidity: 8%-80% (non-condensing)Non-operating temperature: -40°C to 60°CNon-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 18.5 kg
Gross Weight: 25.5 kg
Gross Weight: 25.5 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R282-Z94
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR282Z94MR-00-A*
- Motherboard: 9MZ92FS1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O8: 9CBP20O8NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- PCIe pass through board: 9CEP2080NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2015: 9CRS2015NR-00- Riser card - CRS2033: 9CRS2033NR-00- OCP 3.0 4-port Gen4 NVMe HBA: 9CNV9134NR-00
- OCP 2.0 2-port Gen4 NVMe HBA: 9CNVO132NR-00
- PCIe 4-port Gen4 NVMe HBA: 9CNV3134NR-00
- PCIe 2-port Gen4 NVMe HBA: 9CNV3132NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282Z94SR-RMA-A100
- Motherboard: 9MZ92FS1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O8: 9CBP20O8NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- PCIe pass through board: 9CEP2080NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2015: 9CRS2015NR-00- Riser card - CRS2033: 9CRS2033NR-00- OCP 3.0 4-port Gen4 NVMe HBA: 9CNV9134NR-00
- OCP 2.0 2-port Gen4 NVMe HBA: 9CNVO132NR-00
- PCIe 4-port Gen4 NVMe HBA: 9CNV3134NR-00
- PCIe 2-port Gen4 NVMe HBA: 9CNV3132NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282Z94SR-RMA-A100
