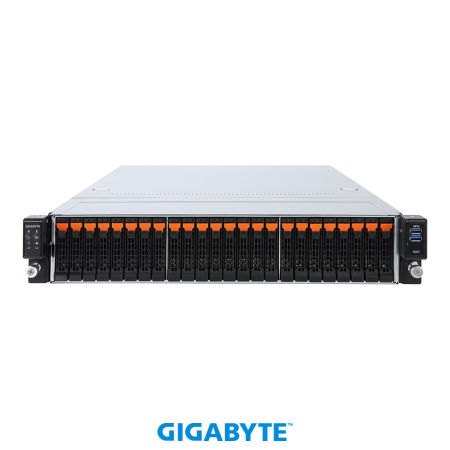

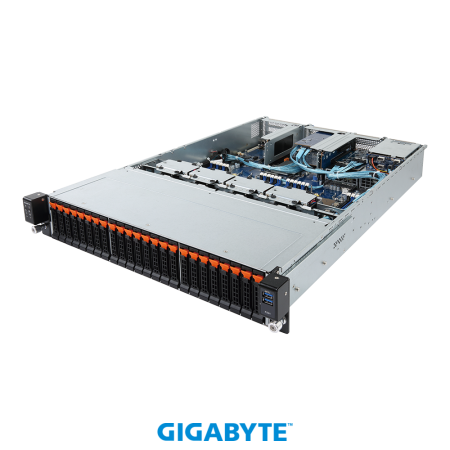

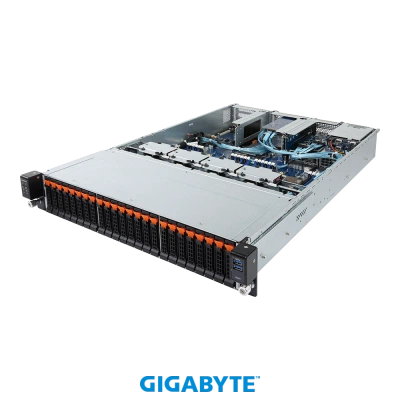

GIGABYTE R281-NO0 (rev. 400)

Name: GIGABYTE R281-NO0 (rev. 400)
Brand: GIGABYTE
SKU: R281-NO0
Price: 3463 RUB
Availability: InStock

Товар в наличии

Цена по запросу

Оптовая цена?

Гарантия лучшей цены

Получите персональную цену на данный товар

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Описание товара GIGABYTE R281-NO0 (rev. 400)

Intel^® C621 Chipset

2nd Gen Intel^® Xeon^® Scalable and Intel^® Xeon^® Scalable Processors
Dual processor, LGA 3647
6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
Supports Intel^® Optane™ DC Persistent Memory
Dual 1Gb/s LAN port (Intel^® I350-AM2)
1 x Dedicated management port
24 x 2.5" NVMe hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays on rear side
5 x FHHL PCIe Gen3 x16 and x8 slots
1 x OCP Gen3 x16 mezzanine slot
Aspeed^® AST2500 remote management controller
Dual 1600W 80 PLUS Platinum redundant power supply

Технические характеристики

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 730

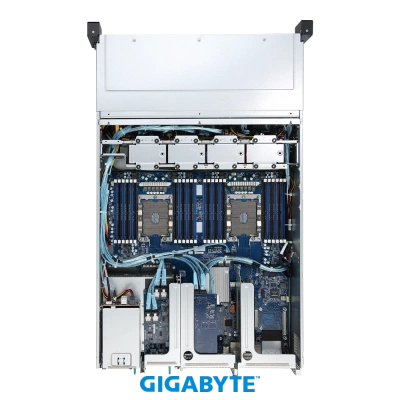

Motherboard

MR91-FS0

CPU

2nd Generation Intel^® Xeon^® Scalable and Intel^® Xeon^® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 205W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket

2 x LGA 3647
Socket P

Chipset

Intel^® C621 Chipset

Memory

24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel^® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_(A1, B1, C1)
DIMM_P0_(D1, E1, F1)
DIMM_P1_(G1, H1, I1)
DIMM_P1_(J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel^® Xeon^® Scalable Processors only
2. Intel^® Optane™ DC Persistent Memory for 2nd Generation Intel^® Xeon^® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative

LAN

Rear side:
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
Supports NCSI function

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

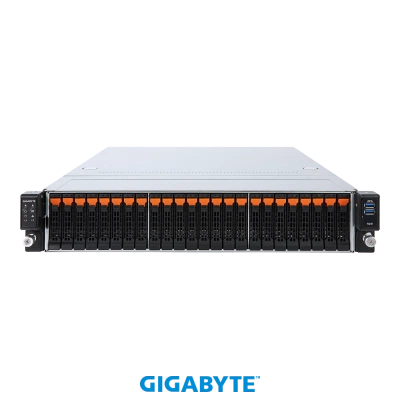

Front side:
24 x 2.5" NVMe hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

SAS card is required to enable SAS devices support

SATA

2 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function

SAS

Depends on SAS add-on card

RAID

For SATA drives:
Intel^® SATA RAID 0/1

For NVMe drives:
Optional Intel^® Virtual RAID On CPU (VROC) RAID 0/1/10/5

Note: VROC module is compatible for Intel^®SSD only

Expansion Slots

Riser Card CRS2131:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0

Riser Card CRS2132:
- 1 x PCIe x16 (Gen3 x16) FHHL slot, from CPU_1, occupied by CNV3124 - 4 x NVMe ports
- 1 x PCIe x8 (Gen3 x0) FHHL slot, from CPU_1, disabled
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0

Riser Card CRS2124:
- 1 x PCIe x8 (Gen3 x0) low-profile slot, from CPU_1, disabled
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1, occupied by CNV3124 - 4 x NVMe ports

1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_0

1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3), from CPU_1, occupied by CNVO124 - 4 x NVMe mezzanine card

Internal I/O

2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

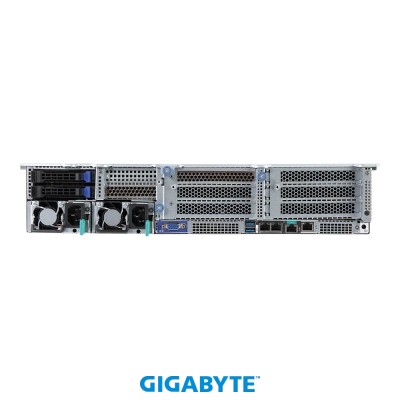

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM (RJ45)
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
Front side - CBP20O2: PCIe Gen3 x4
Rear side - CBP2020: SATAIII 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

Power Supply

2 x 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~
+ 12V/ 133A
+ 12Vsb/ 2.5A

System Management

Aspeed^® AST2500 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)

OS Compatibility

For Skylake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

For Cascade Lake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later

System Fans

4 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

20 kg

Packaging Dimensions

982 x 588 x 250 mm

Packaging Content

1 x R281-NO0
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x Non-fabric CPU carriers

Part Numbers

- Barebone package: 6NR281NO0MR-00-4*
- Motherboard: 9MR91FS0NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-353105-T1R
- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O2: 9CBP20O2NR-00
- Backplane board - CBP2020: 9CBP2020NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2124: 9CRS2124NR-00
- Riser card - CRS2131: 9CRS2131NR-00
- Riser card - CRS2132: 9CRS2132NR-00
- Mezzanine card - CEPM480: 9CEPM480NR-00
- PCIe NVMe card - CNV3124: 9CNV3124NR-00
- NVMe card - CNVO124: 9CNVO124NR-00
- Power supply: 25EP0-216007-L0S

Optional parts:

- VROC module: 25FD0-R181N0-10R
- RJ45 type COM cable: 25CR0-200400-Y4R
