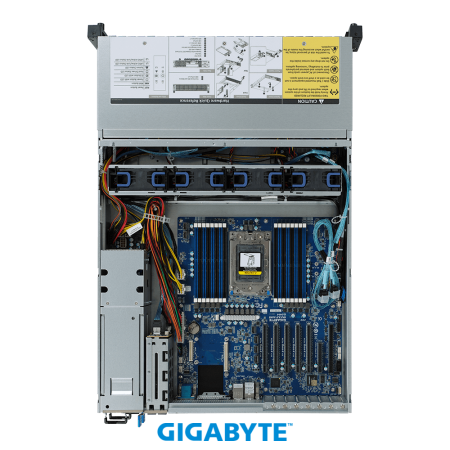

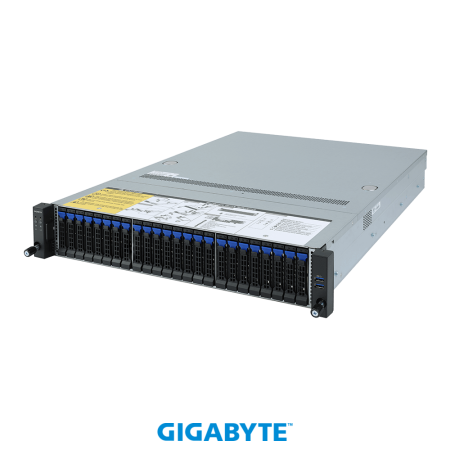

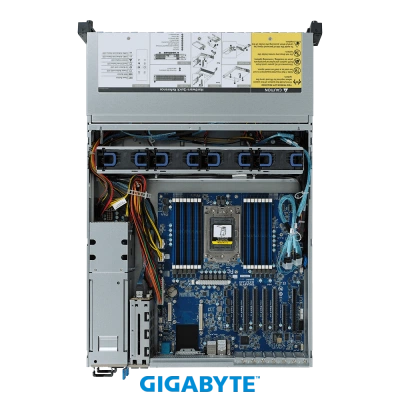

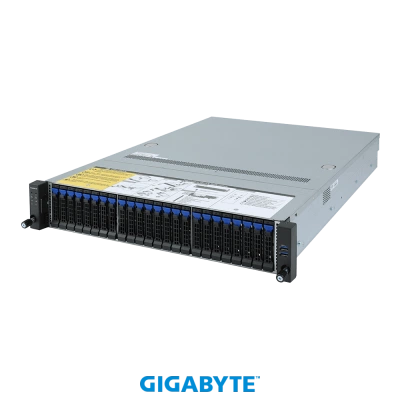

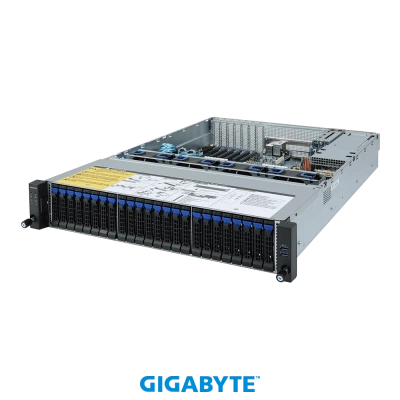

GIGABYTE R272-Z31 (rev. A00)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE R272-Z31 (rev. A00)
Rack Server - AMD EPYC™ 7003 - 2U UP 24+2-Bay SATA/SAS
- AMD EPYC™ 7003 Series processors
- AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- Onboard 12Gb/s SAS expander
- 24 x 2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on rear side
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- Aspeed® AST2500 remote management controller
- Dual 800W 80 PLUS Platinum redundant power supply
Технические характеристики
Dimensions (WxHxD, mm)
2U438 x 87.5 x 660
Motherboard
MZ32-AR0
CPU
AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
Compatible with AMD EPYC™ 7002 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
Compatible with AMD EPYC™ 7002 Series processors
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
24 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
All devices are connected with SAS expander
Onboard SAS35x36R expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
24 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
All devices are connected with SAS expander
Onboard SAS35x36R expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
SAS
Supported
RAID
Depends on SAS add-on card
Expansion Slots
Total 4 x PCIe Gen4 low-profile slots
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Total 2 x PCIe Gen3 low-profile slots
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Total 2 x PCIe Gen3 low-profile slots
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

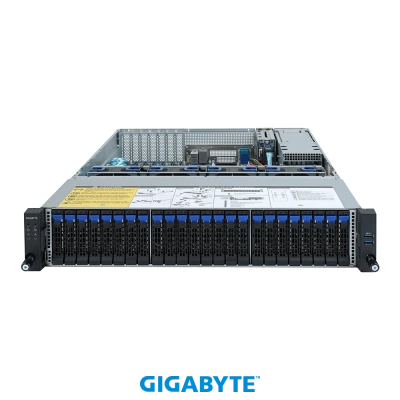

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

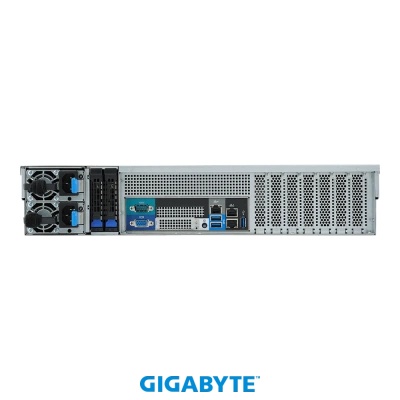

Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 800W 80 PLUS Platinum redundant power supply (-A00)
AC Input:
- 100-240V~/ 10-4A, 50-60Hz
DC Input:
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A
Dual 850W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 220-240V~/ 5A, 47-63Hz
DC Input:
- 240Vdc/ 4A
DC Output:
- Max 850W
+ 12V/ 70.8A
+ 12Vsb/ 2.1A
NOTE: Select 1200W power supply if using 280W CPU with full loading configuration
AC Input:
- 100-240V~/ 10-4A, 50-60Hz
DC Input:
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+ 12V/ 66A
+ 12Vsb/ 2.5A
Dual 850W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 220-240V~/ 5A, 47-63Hz
DC Input:
- 240Vdc/ 4A
DC Output:
- Max 850W
+ 12V/ 70.8A
+ 12Vsb/ 2.1A
NOTE: Select 1200W power supply if using 280W CPU with full loading configuration
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°COperating humidity: 8%-80% (non-condensing)Non-operating temperature: -40°C to 60°CNon-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z31
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z31MR-00-A*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- SAS Expander module - CEP26O0: 9CEP26O0NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply (-A00): 25EP0-208004-L0S
- Power supply (-AT0): 25EP0-208503-D0S
Optional parts:
- 4 x U.2 Kit: 6NR272Z3ASR-00
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z31SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- SAS Expander module - CEP26O0: 9CEP26O0NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply (-A00): 25EP0-208004-L0S
- Power supply (-AT0): 25EP0-208503-D0S
Optional parts:
- 4 x U.2 Kit: 6NR272Z3ASR-00
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z31SR-RMA-A100
