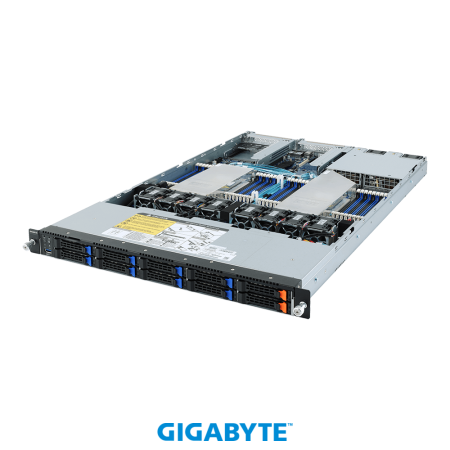

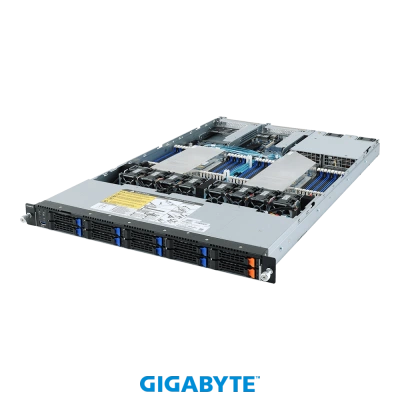

Описание товара GIGABYTE R182-Z91 (rev. A00/B00/AT0)
Rack Server - AMD EPYC™ 7003 - 1U DP 10-Bay Gen3 NVMe/SATA/SAS
- AMD EPYC™ 7003 Series processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x Dedicated management port
- 2 x 2.5" Gen3 NVMe hot-swappable bays
- 8 x 2.5" SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- Aspeed® AST2500 remote management controller
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
- 1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
- 1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
Технические характеристики
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MZ92-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports cTDP 280W at ambient 30°C
Compatible with AMD EPYC™ 7002 Series processors
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports cTDP 280W at ambient 30°C
Compatible with AMD EPYC™ 7002 Series processors
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_1
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_1
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in card
RAID
N/A
Expansion Slots
Riser Card CRS101E x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Internal I/O
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

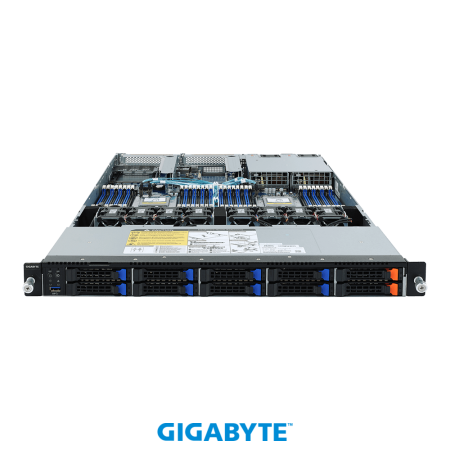

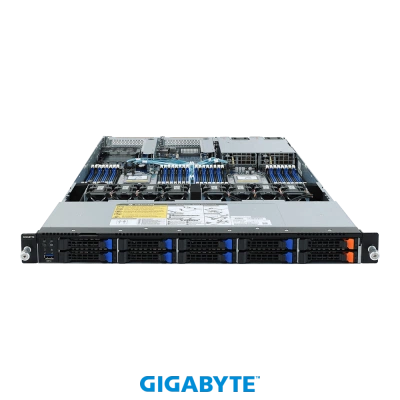

Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

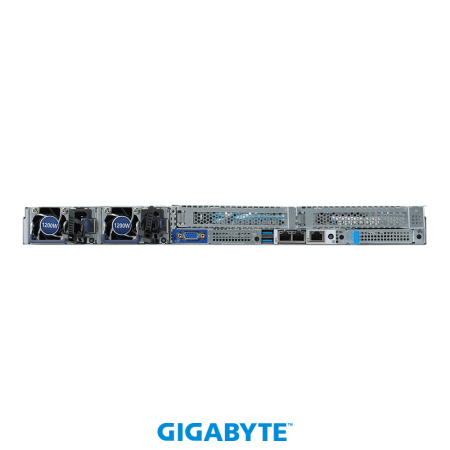

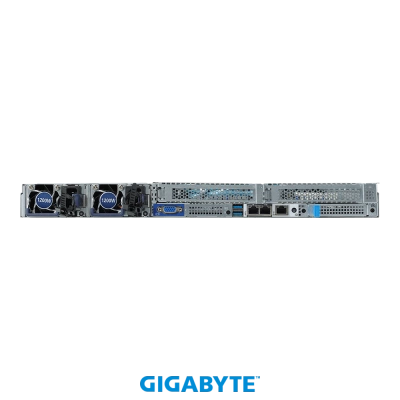

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
8 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 13 kg
Gross Weight: 22 kg
Gross Weight: 22 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R182-Z91
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR182Z91MR-00-A*/B*
- Motherboard: 9MZ92FS0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101E: 9CRS101ENR-00
- Power supply (-A00): 25EP0-212008-D0S
- Power supply (-B00): 25EP0-21300B-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR182Z91SR-RMA-A100
- Motherboard: 9MZ92FS0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101E: 9CRS101ENR-00
- Power supply (-A00): 25EP0-212008-D0S
- Power supply (-B00): 25EP0-21300B-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR182Z91SR-RMA-A100
