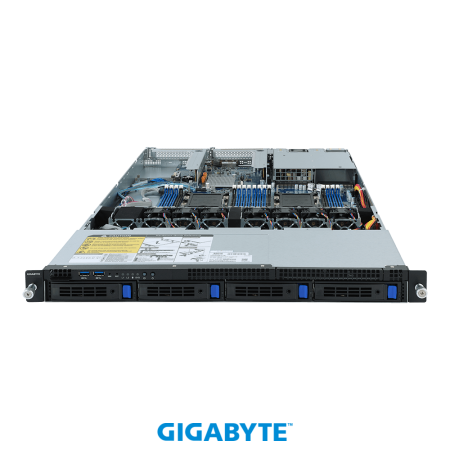

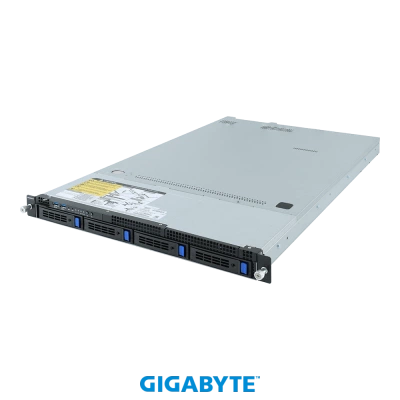

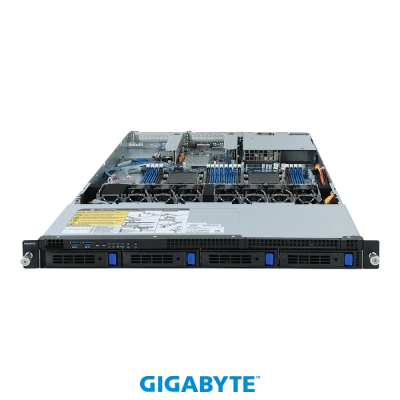

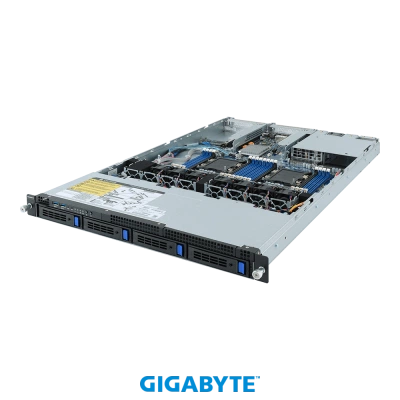

Описание товара GIGABYTE R161-340 (rev. 100/200)
Intel® C621 Chipset
- 2nd Gen Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
- Dual processor, LGA 3647
- 6-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- Dual 1Gb/s LAN port (Intel® I210-AT)
- 1 x Dedicated management port
- 4 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 1 x 2.5" SATA Internal fixed bay
- 2 x 2.5" SATA Internal fixed bays (optional)
- 2 x SATA DOMs supported
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen3 x16 slots
- Aspeed® AST2500 remote management controller
- Single 550W 80 PLUS Platinum hot-swap power supply
Технические характеристики
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730

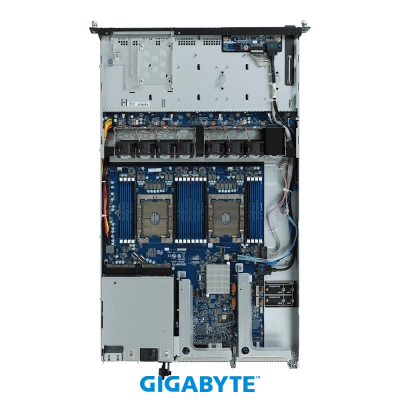

Motherboard
MR51-CE0
CPU
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 125W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 125W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 3647
Socket P
Socket P
Chipset
Intel® C621 Chipset
Memory
16 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2933/2666/2400/2133 MHz
NOTE: 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2933/2666/2400/2133 MHz
NOTE: 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
LAN
Rear side:
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
*2 x 10Gb/s LAN ports (Intel® X557) (optional)
*2 x 25Gb/s SFP28 ports (Mellanox® ConnectX-4 Lx) (optional)
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
*2 x 10Gb/s LAN ports (Intel® X557) (optional)
*2 x 25Gb/s SFP28 ports (Mellanox® ConnectX-4 Lx) (optional)
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
Internal fixed:
1 x 2.5" SATA bay
2 x 2.5" SATA bays (optional)
SAS card is required for SAS devices support
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
Internal fixed:
1 x 2.5" SATA bay
2 x 2.5" SATA bays (optional)
SAS card is required for SAS devices support
SATA
2 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
By using pin_8 or external cable for power function
SAS
Depends on SAS Add-on card
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
1 x Slim type ODD (optional)
NOTE: For 12.7mm ODD only
NOTE: For 12.7mm ODD only
Expansion Slots
Riser Card CRS1014:
- 1 x PCIe x16 (Gen3 x16) FHHL slot, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) FHHL slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2260/2280 cards
- 1 x PCIe x16 (Gen3 x16) FHHL slot, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) FHHL slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2260/2280 cards
Internal I/O
2 x Power supply connectors
5 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
5 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

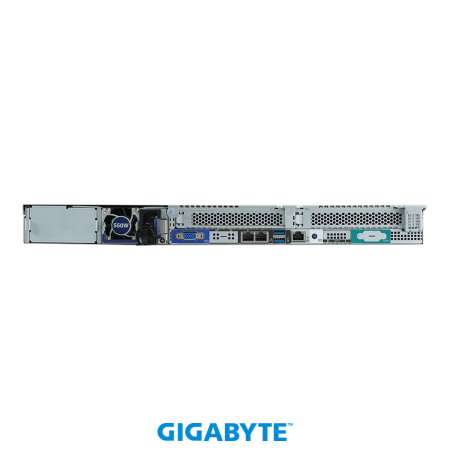

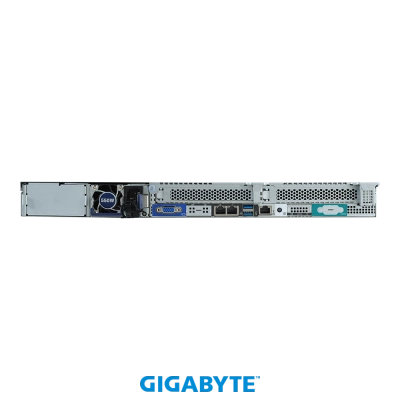

Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (optional)
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM (optional)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Single 550W 80 PLUS Platinum power supply
Available for 1+1 redundant power supply configuration (optional)
AC Input:
- 100-240V~/ 8-4A, 50-60Hz
DC Input:
- 240Vdc/ 2.75A
DC Output:
- Max 550W
+ 12V/ 44A
+ 12Vsb/ 2.1A
Available for 1+1 redundant power supply configuration (optional)
AC Input:
- 100-240V~/ 8-4A, 50-60Hz
DC Input:
- 240Vdc/ 2.75A
DC Output:
- Max 550W
+ 12V/ 44A
+ 12Vsb/ 2.1A
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
For Skylake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
System Fans
7 x 40x40x28mm (18,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 11.4 kg
Gross Weight: 15 kg
Gross Weight: 15 kg
Packaging Dimensions
970 x 570 x 220 mm
Packaging Content
1 x R161-340
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x Non-fabric CPU carriers
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x Non-fabric CPU carriers
Part Numbers
- Barebone w/ single PSU: 6NR161340MR-00-1*
- Barebone w/ dual PSU: 6NR161340MR-00-2*
- Motherboard: 9MR51CE0NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R- CPU heatsink: 25ST1-12310Y-T1R- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1042: 9CBP1042NR-00- Fan module: 25ST2-442826-D0R
- Riser card - CRS1014: 9CRS1014NR-00- Riser card - CRS1015: 9CRS1015NR-00
- Power supply: 25EP0-205502-F3S
Optional parts:
- ODD kit: 6NR161340SR-00-100
- SSD*2 kit: 6NR161341SR-00-100
- Barebone w/ dual PSU: 6NR161340MR-00-2*
- Motherboard: 9MR51CE0NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R- CPU heatsink: 25ST1-12310Y-T1R- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1042: 9CBP1042NR-00- Fan module: 25ST2-442826-D0R
- Riser card - CRS1014: 9CRS1014NR-00- Riser card - CRS1015: 9CRS1015NR-00
- Power supply: 25EP0-205502-F3S
Optional parts:
- ODD kit: 6NR161340SR-00-100
- SSD*2 kit: 6NR161341SR-00-100
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
