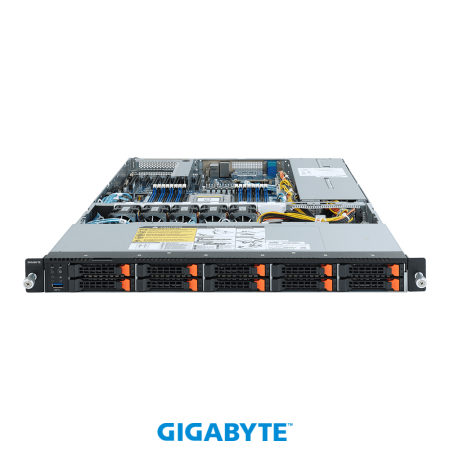

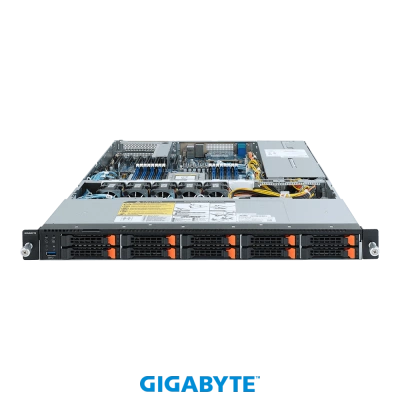

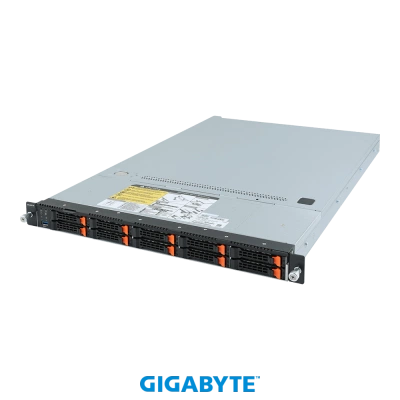

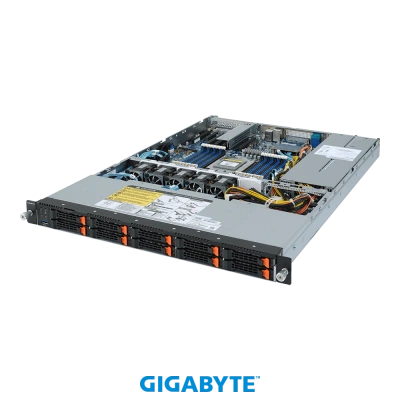

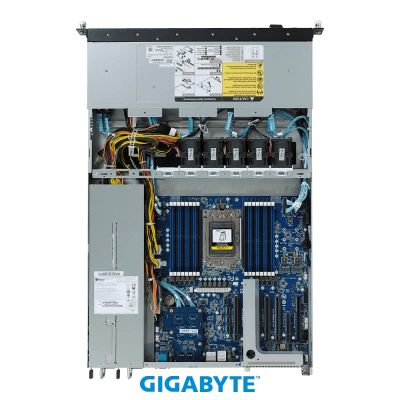

GIGABYTE R152-Z32 (rev. A00)

1U
438 x 43.5 x 660

MZ32-AR0

AMD EPYC™ 7003 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C

Compatible with AMD EPYC™ 7002 Series processors

1 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

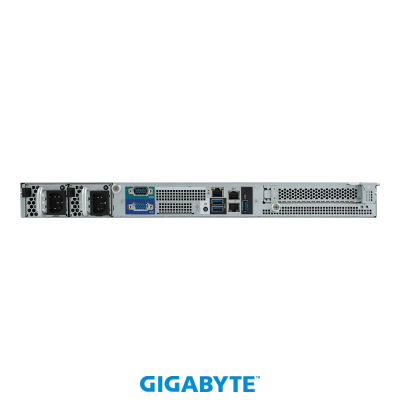

Rear side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Front side:
10 x 2.5" Gen3 NVMe hot-swappable bays

N/A

N/A

Riser Card CRS101D:
- 1 x PCIe x16 (Gen4 x16) FHHL slot

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
- Occupied by CNVO124, 4 x NVMe HBA

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards

2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen3 x4

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

1+1 1100W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-6A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 190-310Vdc/ 7A

DC Output:
- Max 850W/ 100-240Vac~
+ 12V/ 70A
+ 5Vsb/ 3A
- Max 1100W/ 200-240Vac~
+ 12V/ 90.5A
+ 5Vsb/ 3A

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

5 x 40x40x56mm (23,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 12.2 kg

985 x 588 x 250 mm

1 x R152-Z32
1 x CPU heatsink
1 x 2-Section Rail kit

- Barebone package: 6NR152Z32MR-00-A*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A3: 9CBP10A3NR-00
- Riser card - CRS101D: 9CRS101DNR-00
- Fan module: 25ST2-44562G-D0R
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- OCP NVMe Card - CNVO124: 9CNVO124NR-00
- Power supply: 25EP0-201100-F3S

Optional parts:

- 3-Section Rail kit (Support CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
- RMA packaging: 6NR152Z32SR-RMA-A100
