Описание товара GIGABYTE R152-P31 (rev. 100)

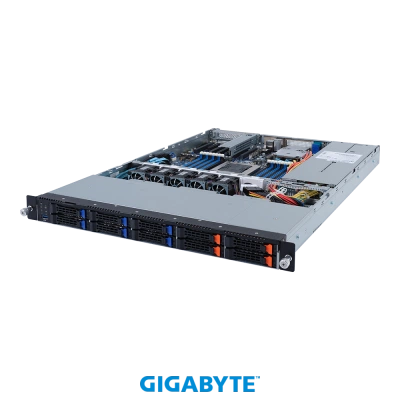

Ampere® Altra® Max ARM Server - 1U 10-Bay
- Hardware-level root of trust support
- Ampere® Altra® Max or Altra® Processors
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 4 x 2.5" NVMe hot-swappable bays
- 6 x 2.5" SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- 2 x 650W 80 PLUS Platinum redundant power supplies
Технические характеристики
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 660
438 x 43.5 x 660
Motherboard
MP32-AR1
CPU
Ampere® Altra® Max or Altra® Processor
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Single processor, 7nm technology
Up to 128-core per processor, TDP 250W
Socket
1 x LGA 4926
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 2.5" NVMe hot-swappable bays
6 x 2.5" SATA hot-swappable bays, from CSTO180 (ASM1164) SATA HBA
4 x 2.5" NVMe hot-swappable bays
6 x 2.5" SATA hot-swappable bays, from CSTO180 (ASM1164) SATA HBA
SAS
N/A
RAID
N/A
Expansion Slots
Riser Card CRS101D:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 2.0 mezzanine slot, occupied by CSTO180 (ASM1164) SATA HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 2.0 mezzanine slot, occupied by CSTO180 (ASM1164) SATA HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards
Internal I/O
2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer

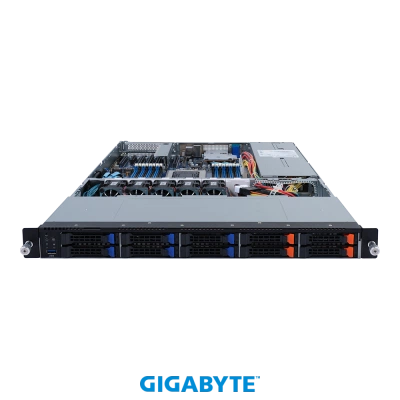

Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

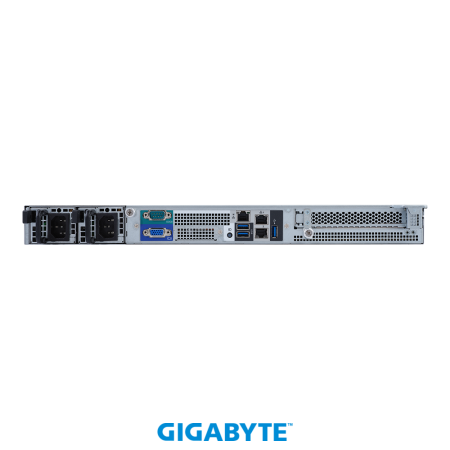

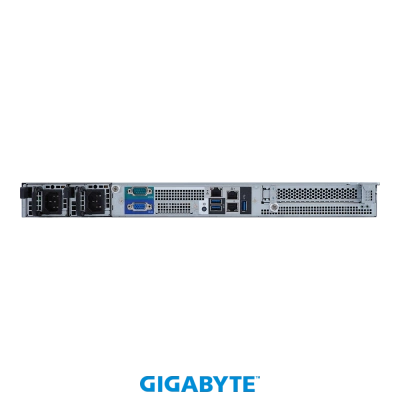

Rear I/O
3 x USB 3.0
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s
PCIe Gen3 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 650W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240Vac~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+ 12V/ 52.9A
+ 5Vsb/ 4.0A
AC Input:
- 100-240Vac~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+ 12V/ 52.9A
+ 5Vsb/ 4.0A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
Red Hat Enterprise Linux 8.5 (aarch64) or later
CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
System Fans
5 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R152-P31
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
- Barebone package: 6NR152P31MR-00-1*
- Motherboard: 9MP32AR1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-2534Z0-C1R
- Backplane board - CBP10A3: 9CBP10A3NR-00
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101D: 9CRS101DNR-00
- OCP type SATA HBA Card: 9CSTO180NR-00
- Power supply module: 25EP0-206506-F3S
- Motherboard: 9MP32AR1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-2534Z0-C1R
- Backplane board - CBP10A3: 9CBP10A3NR-00
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101D: 9CRS101DNR-00
- OCP type SATA HBA Card: 9CSTO180NR-00
- Power supply module: 25EP0-206506-F3S
