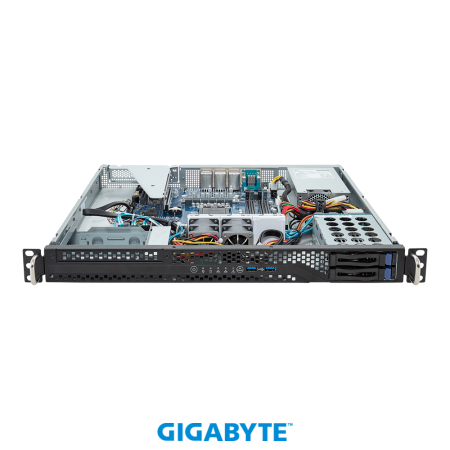

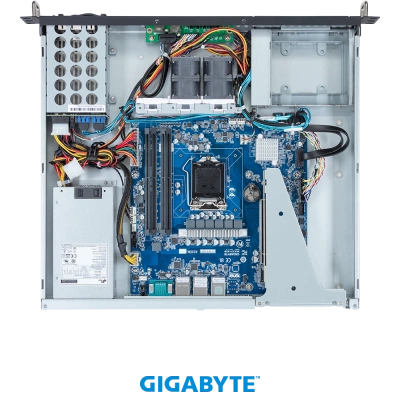

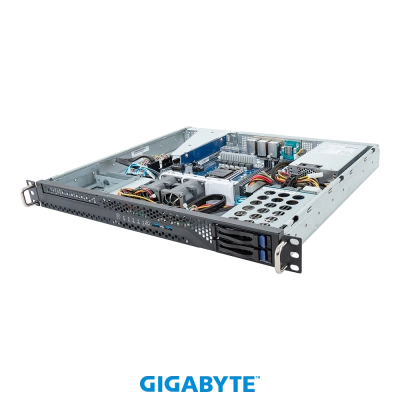

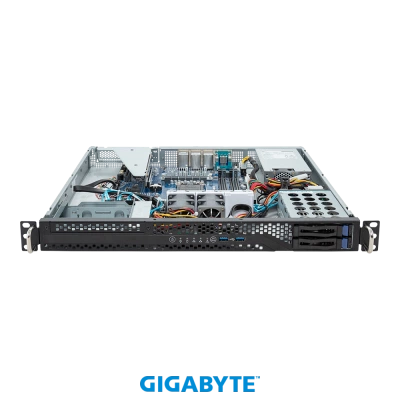

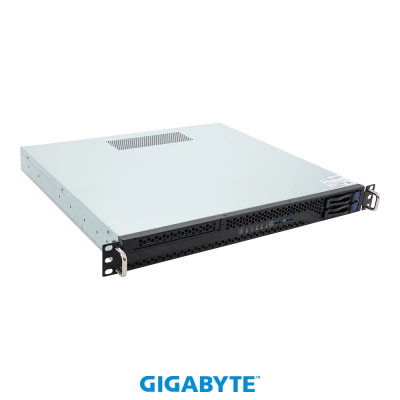

GIGABYTE R112-X30 (rev. 100)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE R112-X30 (rev. 100)
Rack Server - Intel® Xeon® E-2300 - 1U UP 4-Bay SATA
- Intel® Xeon® E-2300 Processor
- Single processor, LGA 1200
- Dual Channel ECC/Non-ECC DDR4 Unbuffered DIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 2 x 2.5" SATA hot-swappable bays
- 2 x 2.5" SATA internal bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- Single 350W 80 PLUS Bronze power supply
Технические характеристики
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 393.2
430 x 43.5 x 393.2
Motherboard
MX33-BS0
CPU
Intel® Xeon® E-2300 Processor
10th Gen Intel® Pentium® Processor
Single processor, CPU TDP up to 95W
10th Gen Intel® Pentium® Processor
Single processor, CPU TDP up to 95W
Socket
1 x LGA 1200
Socket H5
Socket H5
Chipset
Intel® C252 Chipset
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz
LAN
Rear side:
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
2 x 2.5" SATA hot-swappable bays
Internal:
2 x 2.5" SATA bays
SATA supported only
2 x 2.5" SATA hot-swappable bays
Internal:
2 x 2.5" SATA bays
SATA supported only
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS101R:
- *1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards
*The expansion slot is downgraded to Gen3 x16 when running on 10th Gen Intel® Pentium® Processor
- *1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards
*The expansion slot is downgraded to Gen3 x16 when running on 10th Gen Intel® Pentium® Processor
Internal I/O
1 x M.2 slot
1 x TPM header
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x Power button
1 x Reset button
1 x System status LED
1 x System power LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x Power button
1 x Reset button
1 x System status LED
1 x System power LED
2 x LAN activity LEDs
1 x HDD activity LED

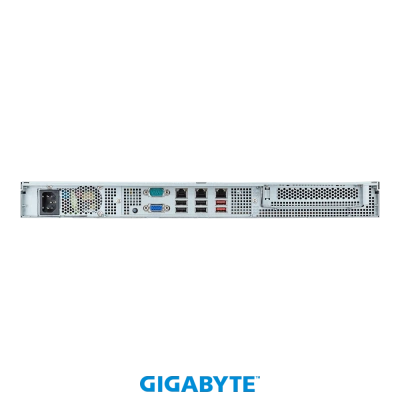

Rear I/O
2 x USB 3.2 Gen2
4 x USB 2.0
1 x COM
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
4 x USB 2.0
1 x COM
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
N/A
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Single 350W 80 PLUS Bronze power supply
AC Input:
- 100-240V~/ 6-3A, 50-60Hz
DC Output:
- Max 350W/ 100-240V~
+ 12V/ 29A
+ 5V/ 14A
+ 3.3V/ 12A
+ 5Vsb/ 2.5A
AC Input:
- 100-240V~/ 6-3A, 50-60Hz
DC Output:
- Max 350W/ 100-240V~
+ 12V/ 29A
+ 5V/ 14A
+ 3.3V/ 12A
+ 5Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface
AMI MegaRAC SP-X Solution Web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2019 (x64)
Windows Server 2016 (x64)
Red Hat Enterprise Linux 7.3 (x64)
Red Hat Enterprise Linux 6.9 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
SUSE Linux Enterprise Server 11.2 (x64)
Ubuntu 18.04.2 LTS (x64)
Ubuntu 16.04.6 LTS (x64)
VMware 6.5
Windows Server 2016 (x64)
Red Hat Enterprise Linux 7.3 (x64)
Red Hat Enterprise Linux 6.9 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
SUSE Linux Enterprise Server 11.2 (x64)
Ubuntu 18.04.2 LTS (x64)
Ubuntu 16.04.6 LTS (x64)
VMware 6.5
System Fans
2 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
592 x 518 x 155 mm
Packaging Content
1 x R112-X30
1 x CPU heatsink
*Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
*Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NR112X30MR-00-1*
- Motherboard: 9MX33BS0NR-00
- CPU heatsink: 12SP2-160006-10R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00
- Power supply: 25EP0-203509-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
- Motherboard: 9MX33BS0NR-00
- CPU heatsink: 12SP2-160006-10R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00
- Power supply: 25EP0-203509-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
