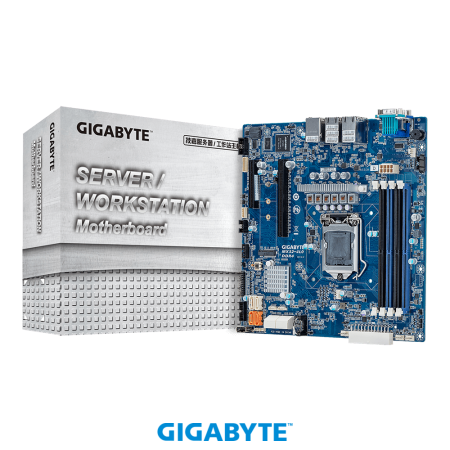

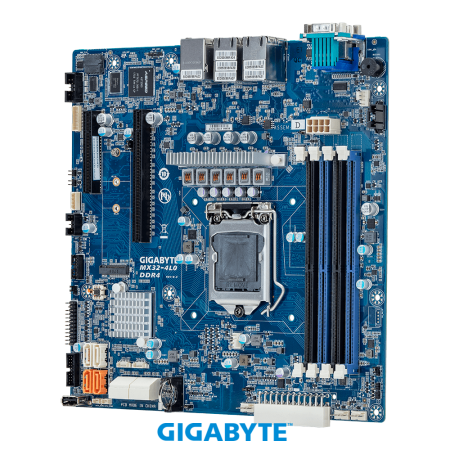

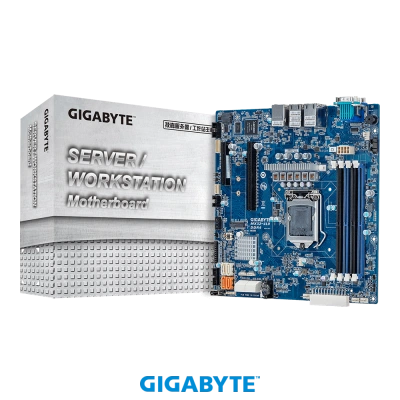

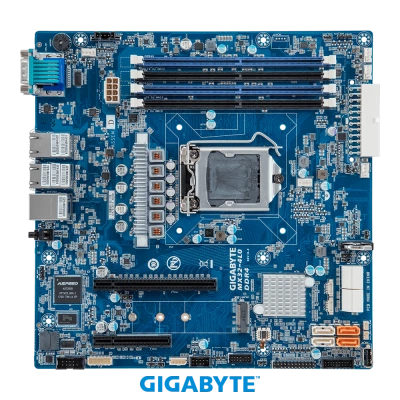

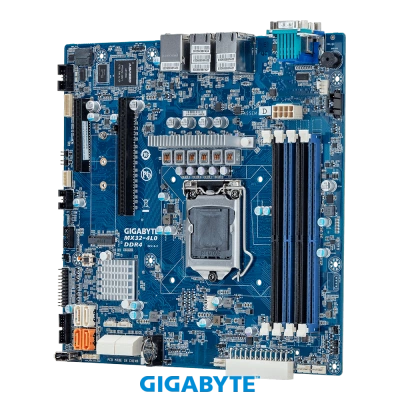

GIGABYTE MX32-4L0 (rev. 1.0)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MX32-4L0 (rev. 1.0)
Intel® C246 chipset
- Entry and small business server board
- microATX form factor
- Intel® Xeon® Processor E-2100/ E-2200 series
- Single processor, LGA 1151
- Intel® C246 Chipset
- 4 x UDIMM slots, DDR4 2666/2400MHz
- 4 x GbE LAN ports (Intel® I210)
- 1 x Dedicated management port
- 8 x SATA III 6Gb/s ports, 2 x SATA DOM supported
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x PCIe Gen3 x16 and x4 expansion slots
- Aspeed® AST2500 remote management controller
- Intel® Optane™Memory Ready
Технические характеристики
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
CPU
Intel® Xeon® Processor E-2100/E-2200 series
8th Gen. Intel Core™ i3/Pentium®/ Celeron® Processors
Single processor
8th Gen. Intel Core™ i3/Pentium®/ Celeron® Processors
Single processor
Socket
1 x LGA 1151
Chipset
Intel® C246 Chipset
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz
LAN
4 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
8 x SATA III 6Gb/s ports
SATA4/SATA5 support SATA DOM
SATA4/SATA5 support SATA DOM
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2242/2260/2280 cards
- Intel® Optane™ Memory Ready
1 x PCIe x8 (Gen3 x4 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2242/2260/2280 cards
- Intel® Optane™ Memory Ready
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x M.2 slot
1 x USB 2.0 vertical port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM port header
1 x back panel header
1 x TPM header
2 x SATA SGPIO headers
2 x SATA DOM headers
1 x Front panel header
1 x JTAG BMC header
1 x Case open
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x M.2 slot
1 x USB 2.0 vertical port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM port header
1 x back panel header
1 x TPM header
2 x SATA SGPIO headers
2 x SATA DOM headers
1 x Front panel header
1 x JTAG BMC header
1 x Case open
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

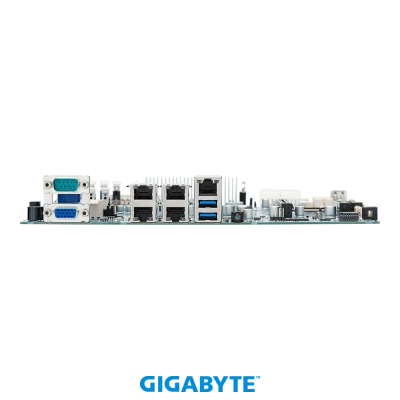

Rear I/O
1 x COM
1 x VGA
4 x RJ45
1 x MLAN
2 x USB 3.0
1 x ID switch
1 x VGA
4 x RJ45
1 x MLAN
2 x USB 3.0
1 x ID switch
TPM
1 x TPM header
OS Supported
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Windows Server 2016
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Board Management
Aspeed® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface
AMI MegaRAC SP-X Solution Web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MX32-4L0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content
10 x MX32-4L0
10 x I/O shields
Carton dimensions: 600 x 386 x 368 mm
10 x I/O shields
Carton dimensions: 600 x 386 x 368 mm
Reference Numbers
Retail: 9MX324L0MR-00
Bulk: 9MX324L0NR-00
Part numbers:
TPM module: 9CTM000NR-00 (optional)
Bulk: 9MX324L0NR-00
Part numbers:
TPM module: 9CTM000NR-00 (optional)
