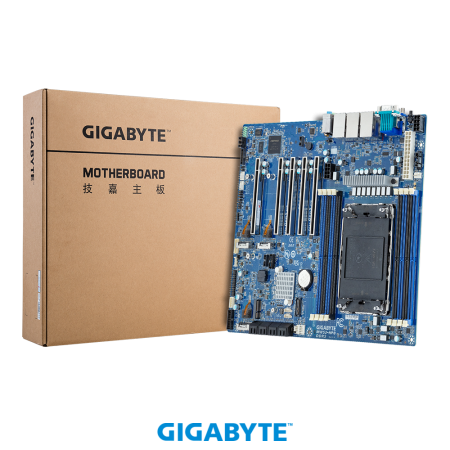

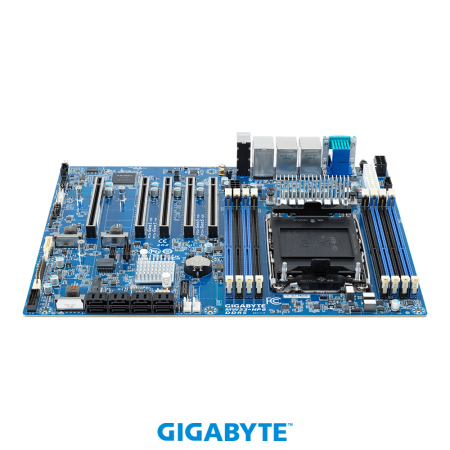

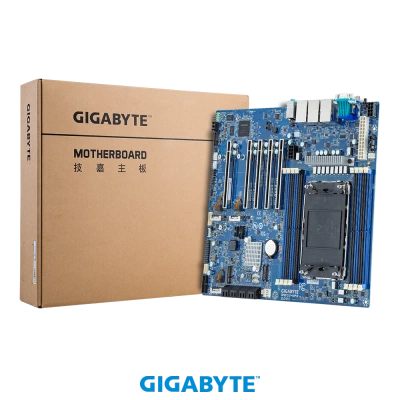

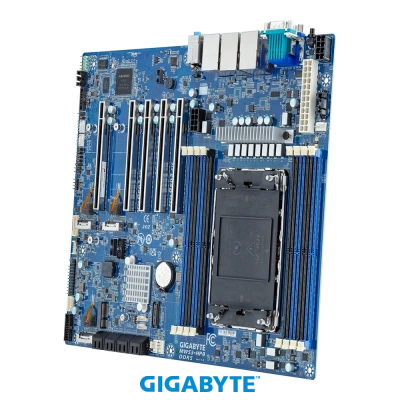

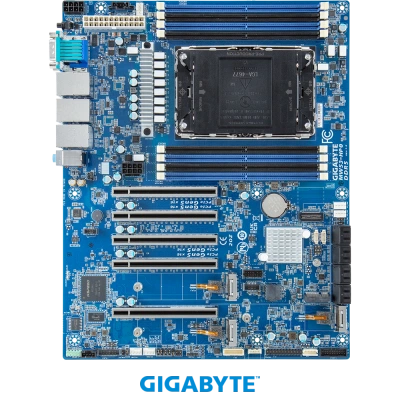

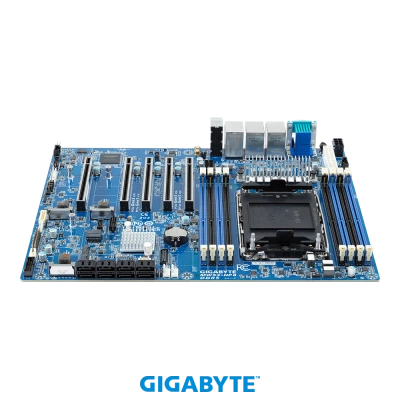

GIGABYTE MW53-HP0 (rev. 1.x)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MW53-HP0 (rev. 1.x)
Motherboard - Intel® Xeon® W-3400/2400 - ATX UP
- Single Intel® Xeon® W-3400/2400 Processors
- 4-Channel RDIMM DDR5, 8 x DIMMs
- Intel® W790 Chipset
- 2 x 2.5Gb/s LAN ports via Intel® I226-LM
- 8 x SATA 6Gb/s ports
- 3 x M.2 slots with PCIe Gen4 x4 interface
- 1 x M.2 slot with PCIe Gen3 x1 interface for Wi-Fi add-in cards
- 4 x PCIe Gen5 x16 expansion slots
- 1 x PCIe Gen3 x4 expansion slot
Технические характеристики
Form Factor
ATX
304.8W x 244D mm
304.8W x 244D mm
CPU
*Intel® Xeon® W-3400 Processors
Intel® Xeon® W-2400 Processors
Single processor, TDP up to 350W
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Intel® Xeon® W-2400 Processors
Single processor, TDP up to 350W
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Socket
1 x LGA 4677
Chipset
Intel® W790
Memory
8 x DIMM slots
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
2 x 2.5Gb/s LAN ports (2 x Intel® I226-LM)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
3 x Audio jacks (Audio in/Audio out/Mic)
Storage Interface
PCH:
- 8 x SATA 6Gb/s ports
- 8 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
4 x System fan headers
1 x Front audio header
2 x USB 3.2 Gen1 headers
3 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
4 x System fan headers
1 x Front audio header
2 x USB 3.2 Gen1 headers
3 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

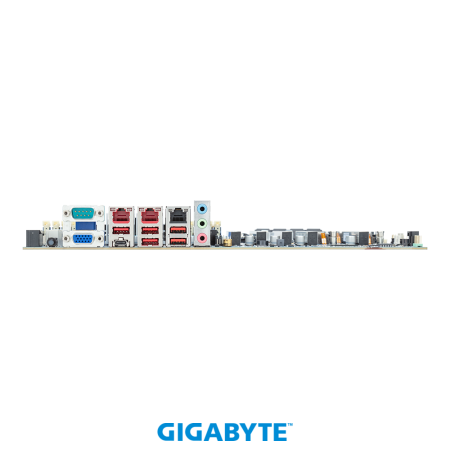

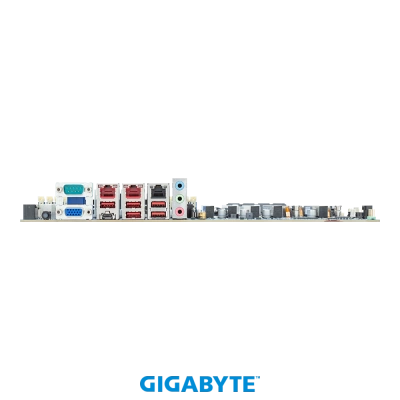

Rear I/O
1 x USB 3.2 Gen2x2 (Type-C)
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
OS Supported
CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
Board Management
ASPEED® AST2600
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW53-HP0
1 x I/O shield
1 x Quick start guide
*1 x W-2400 (E1B) carrier
3 x M.2 heatsinks
4 x SATA 6Gb/s cables (500mm)
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
*1 x W-2400 (E1B) carrier
3 x M.2 heatsinks
4 x SATA 6Gb/s cables (500mm)
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MW53-HP0
10 x I/O shields
*10 x W-2400 (E1B) carriers
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
*10 x W-2400 (E1B) carriers
*Carriers for Intel® Xeon® W-3400 Processors are not included. Please refer to the optional parts for proper support.
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MW53HP0MR-000-1*
Bulk: 9MW53HP0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MW53HP-10R
- W-2400 (E1B) carrier: 12KRC-0I4677-12R
- M.2 heatsink: 12SP2-080027-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
Optional parts:
- W-3400 (E1A) carrier: 12KRC-0I4677-00R
Bulk: 9MW53HP0NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MW53HP-10R
- W-2400 (E1B) carrier: 12KRC-0I4677-12R
- M.2 heatsink: 12SP2-080027-00R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R
Optional parts:
- W-3400 (E1A) carrier: 12KRC-0I4677-00R
