Артикул: MW34-SP0
В наличии

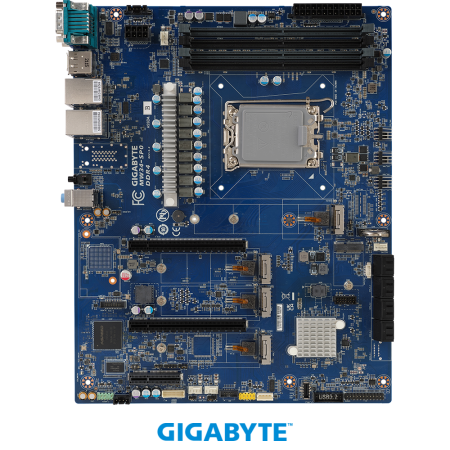

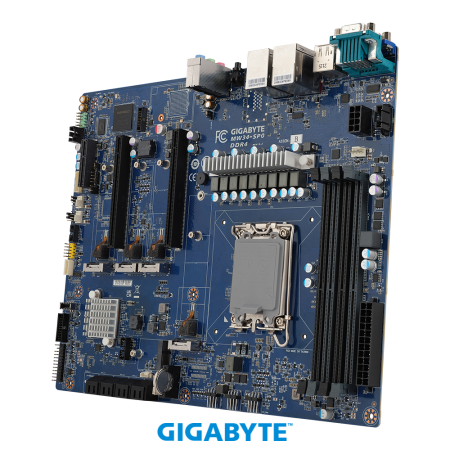

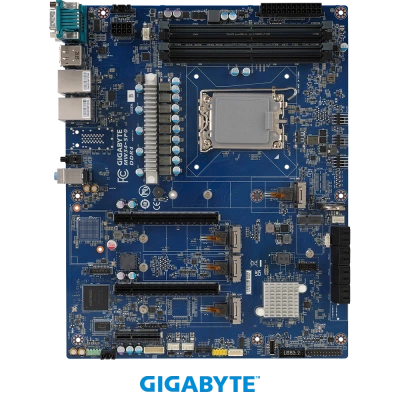

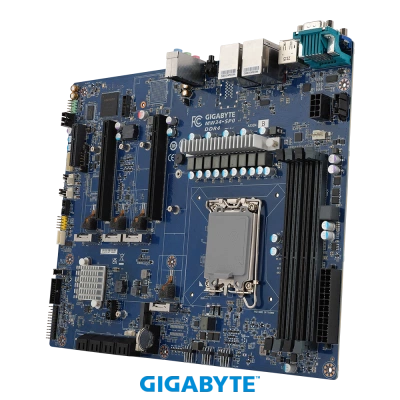

GIGABYTE MW34-SP0 (rev. 1.0)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MW34-SP0 (rev. 1.0)
12th Gen Intel® Core™ Workstation Board
- 12th Gen Intel® Core™Desktop Processor
- Single processor, LGA 1700
- Intel® W680 Chipset
- Dual Channel DDR4 3200MHz UDIMM, 4 DIMMs
- 1 x 2.5G LAN port (Intel® I225)
- 1 x Dedicated Management Port
- 4 x M.2 slots with PCIe Gen4 x4 interface
- 8 x SATA 6Gb/s ports
- 2 x PCIe Gen5 x16 and x8 expansion slots
- 1 x PCIe Gen3 x4 expansion slot
Технические характеристики
Form Factor
ATX
305W x 244D mm
305W x 244D mm
CPU
12th Gen Intel® Core™ Desktop Processor
Single processor
Single processor
Socket
1 x LGA 1700
Chipset
Intel® W680
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 3200 MHz memory
ECC UDIMM modules supported
Up to 128GB
NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0
Dual channel memory architecture
Supports 1.2V DDR4 3200 MHz memory
ECC UDIMM modules supported
Up to 128GB
NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0
LAN
1 x 2.5GbE LAN port (Intel® I225)
1 x 10/100/1000 Management LAN (Realtek® RTL8211FD)
1 x 10/100/1000 Management LAN (Realtek® RTL8211FD)
Video
Integrated in Intel® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
Audio
Realtek® ALC897 controller
Supports 2/4/5.1/7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
3 ports Audio Jack (Audio in/Audio out/Mic)
SAS
N/A
SATA
8 x SATA III 6Gb/s ports
RAID
Intel® RAID 0/1/10/5
Expansion Slots
Slot_6: 1 x PCIe x16 (Gen5 x16 or Gen5 x8 bus) slot, from CPU
Slot_3: 1 x PCIe x16 (Gen5 x0 or Gen5 x8 bus) slot, from CPU, shared with slot_6
Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Supports 2280 cards
Slot_3: 1 x PCIe x16 (Gen5 x0 or Gen5 x8 bus) slot, from CPU, shared with slot_6
Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Supports 2280 cards
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB3.2 gen2x2 Type-C® header
1 x USB3.2 gen1 header for 2 ports
1 x USB2.0 header for 2 ports
1 x Front panel header
1 x TPM header
1 x M.2 slot for Wi-Fi
1 x CPU fan header
6 x System fan headers
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB3.2 gen2x2 Type-C® header
1 x USB3.2 gen1 header for 2 ports
1 x USB2.0 header for 2 ports
1 x Front panel header
1 x TPM header
1 x M.2 slot for Wi-Fi
1 x CPU fan header
6 x System fan headers

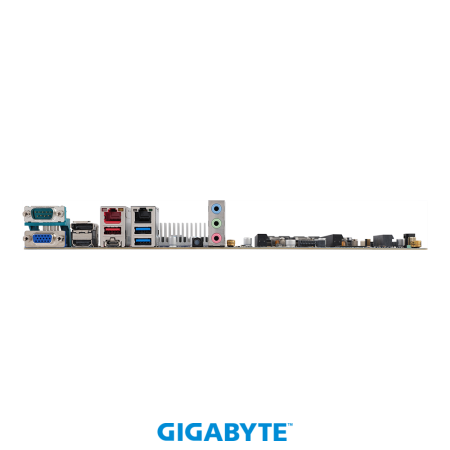

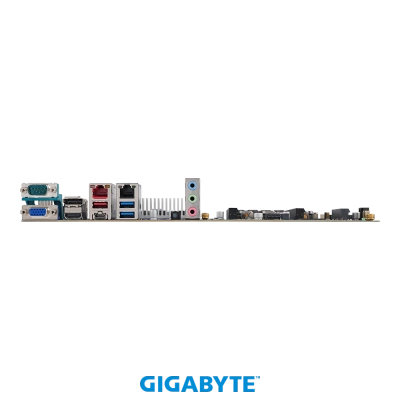

Rear I/O
1 x VGA
1 x COM
1 x HDMI
1 x DP
1 x USB 3.2 gen2x2 Type-C®)
3 x USB 3.2 gen1 Type-A
1 x MLAN
1 x 2.5G LAN
1 x ID Button
1 x 3 in 1 Audio jack
1 x COM
1 x HDMI
1 x DP
1 x USB 3.2 gen2x2 Type-C®)
3 x USB 3.2 gen1 Type-A
1 x MLAN
1 x 2.5G LAN
1 x ID Button
1 x 3 in 1 Audio jack
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Supported
Windows 10 (64bit)
Windows 11 (64bit)
Windows 11 (64bit)
Board Management
ASPEED® AST2600
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

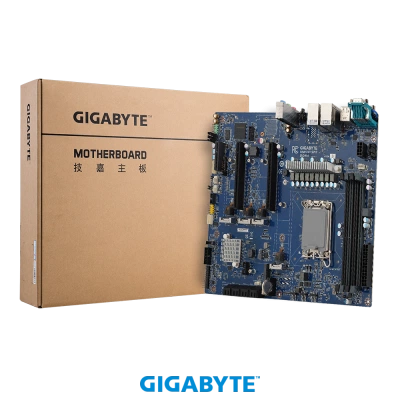

Retail Packaging Content
1 x MW34-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MW34-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MW34SP0MR-00-10*
Bulk: 9MW34SP0NR-00-10*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable: 12CF1-2SAT01-31R
Bulk: 9MW34SP0NR-00-10*
Part Numbers:
- I/O shield: 12AIO-MW34S0-00R
- SATA cable: 12CF1-2SAT01-31R
