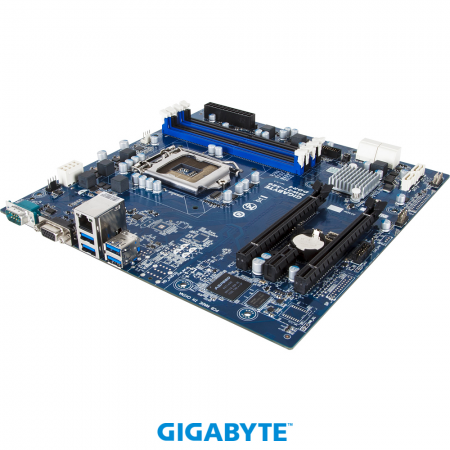

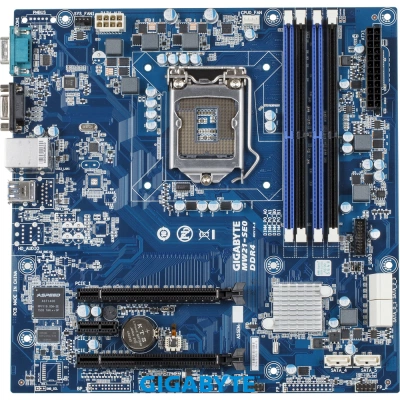

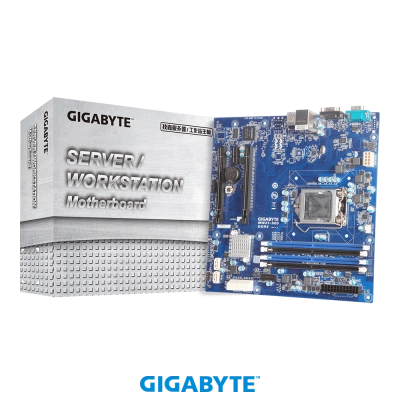

GIGABYTE MW21-SE0 (rev. 1.0)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MW21-SE0 (rev. 1.0)
Intel® C232 chipset
- microATX form factor
- Intel® Xeon® processors E3-1200 V6/V5 product family
- Intel® C232
- 4 x UDIMM slots, DDR4 2400MHz
- 1 x GbE LAN port (Intel® I219V)
- 6 x SATA III 6Gb/s
Технические характеристики
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V6/V5 product familySupports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket
LGA 1151
Chipset
Intel® C232
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
LAN
1 x GbE LAN port (Intel® I219LM)
Video
Integrated in Aspeed® AST1400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
SAS
N/A
SATA
6 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen 3 x16 bus) connector
1 x PCIe x16 (Gen 3 x4 bus) connector
1 x PCIe x16 (Gen 3 x16 bus) connector
1 x PCIe x16 (Gen 3 x4 bus) connector
1 x PCIe x16 (Gen 3 x16 bus) connector
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front panel header
1 x TPM header
1 x Chassis intrusion header
1 x Clear CMOS jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front panel header
1 x TPM header
1 x Chassis intrusion header
1 x Clear CMOS jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper

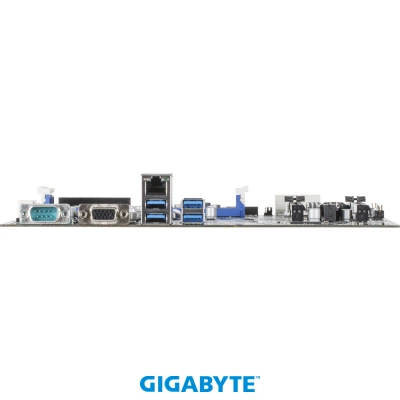

Rear I/O
4 x USB 3.0
1 x VGA
1 x Serial
1 x RJ45
1 x VGA
1 x Serial
1 x RJ45
TPM
1 x TPM header
OS Supported
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 7.2
Ubuntu 12.04 LTS (x64)
Ubuntu 14.04 LTS (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Windows Server 2016
Red Hat Enterprise Linux 7.2
Ubuntu 12.04 LTS (x64)
Ubuntu 14.04 LTS (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Board Management
N/A
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW21-SE0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content
10 x MW21-SE0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers
Retail: 9MW21SE0MR-00
Bulk: 9MW21SE0NR-00
Bulk: 9MW21SE0NR-00
