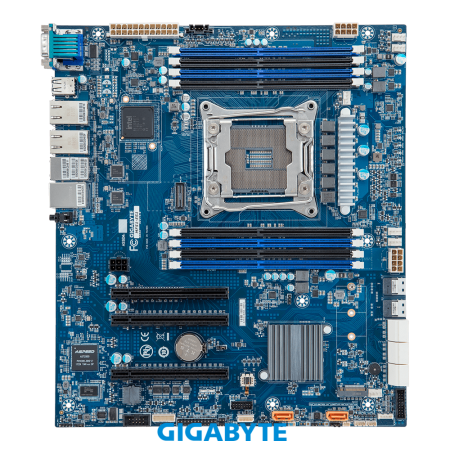

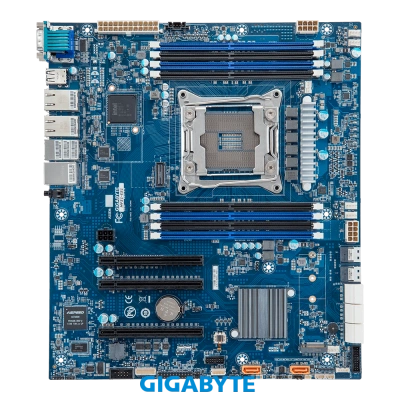

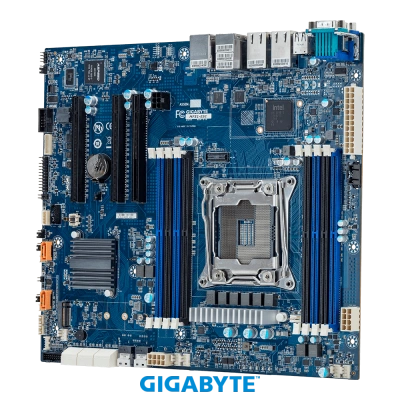

GIGABYTE MF51-ES1 (rev. 1.x)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE MF51-ES1 (rev. 1.x)
Motherboard - Intel® Xeon® W-2200/W-2100 - CEB UP 4 x 1Gb/s LAN
- Single Intel® Xeon® W-2200/W-2100 Processors
- Quad Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- Intel® C422 Chipset
- Intel® VROC ready
- 2 x 1Gb/s LAN ports via Intel® I350
- 2 x 1Gb/s LAN ports via Intel® I210
- 2 x SlimSAS connectors with PCIe Gen3 x4 interface
- 8 x SATA 6Gb/s ports with 2 x SATA DOM supported
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x PCIe Gen3 x16 and x8 expansion slots
Технические характеристики
Form Factor
CEB
304.8W x 266.7D mm
304.8W x 266.7D mm
CPU
Intel® Xeon® W-2200 Processors
Intel® Xeon® W-2100 Processors
Single processor, TDP up to 165W
Intel® Xeon® W-2100 Processors
Single processor, TDP up to 165W
Socket
1 x LGA 2066
Socket R4
Mounting pitch: square ILM (80x80mm)
Socket R4
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® C422
Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
Memory speed: 2666/2400 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
DDR4 memory supported only
Quad channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
Memory speed: 2666/2400 MT/s
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
2 x 1Gb/s LAN ports (Intel® I350-BT2)
2 x 1Gb/s LAN ports (Intel® I210)
1 x Dedicated management port
2 x 1Gb/s LAN ports (Intel® I210)
1 x Dedicated management port
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
PCH:
- 2 x SlimSAS connectors for U.2 drives (PCIe Gen3 x4)
- 8 x SATA 6Gb/s ports with 2 x SATA DOM supported
- 2 x SlimSAS connectors for U.2 drives (PCIe Gen3 x4)
- 8 x SATA 6Gb/s ports with 2 x SATA DOM supported
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
2 x PCIe x16 (Gen3 x16) slots, from CPU
1 x PCIe x16 (Gen3 x8) slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2260/2280 cards
1 x PCIe x16 (Gen3 x8) slot, from CPU
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V
1 x 6-pin ATX 12V power connector for PCIe slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header for 2 ports
1 x M.2 slot
2 x SlimSAS connectors
8 x SATA 6Gb/s ports
2 x SATA DOM SGPIO connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V
1 x 6-pin ATX 12V power connector for PCIe slots
1 x CPU fan header
5 x System fan headers
1 x USB 3.0 header for 2 ports
1 x M.2 slot
2 x SlimSAS connectors
8 x SATA 6Gb/s ports
2 x SATA DOM SGPIO connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header

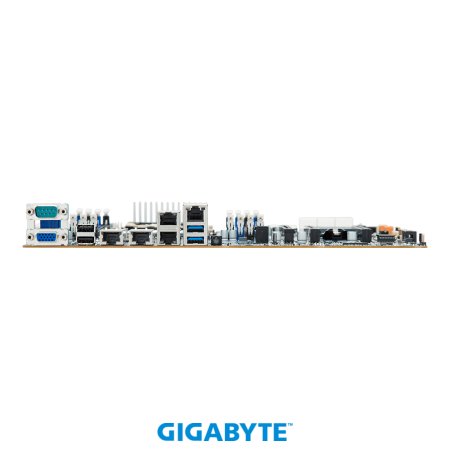

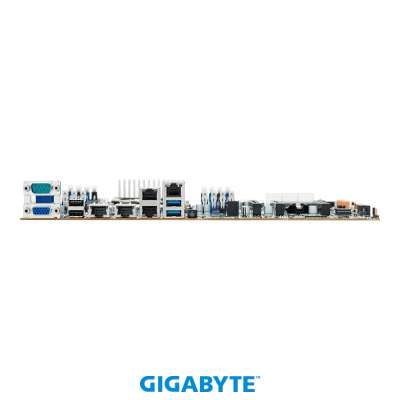

Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM
4 x RJ45
1 x MLAN
1 x ID button with LED
2 x USB 2.0
1 x VGA
1 x COM
4 x RJ45
1 x MLAN
1 x ID button with LED
OS Supported
Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.3 (x64)
SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)
Ubuntu 16.04.2 LTS (x64)
VMware ESXi 6.5
Windows Server 2012 R2 with Update
Windows Server 2016
Board Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

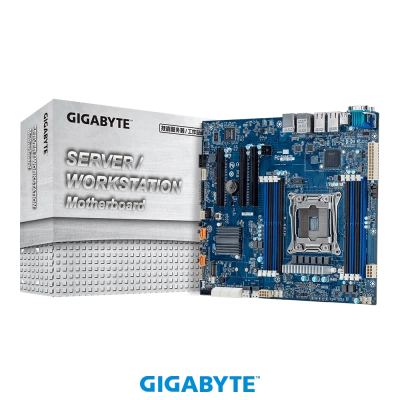

Retail Packaging Content
1 x MF51-ES1
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MF51-ES1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MF51ES1MR-00-1*
Bulk: 9MF51ES1NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MF51E0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
Optional parts:
- Fansink: 25ST0-7C9220-T1R
Bulk: 9MF51ES1NR-00-1*
Part Numbers:
- I/O shield: 12AIO-MF51E0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
Optional parts:
- Fansink: 25ST0-7C9220-T1R
