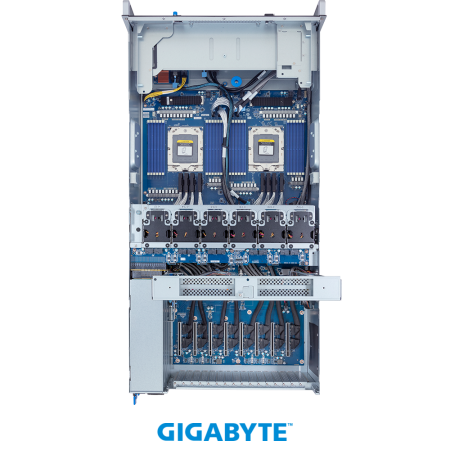

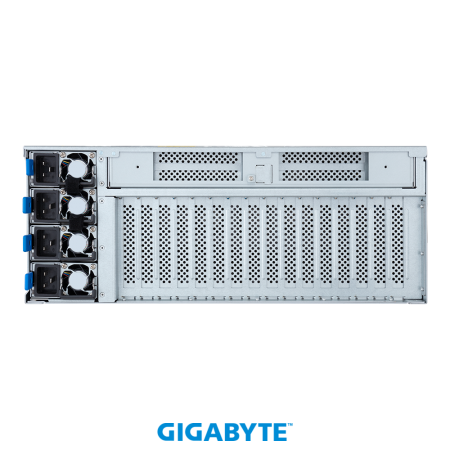

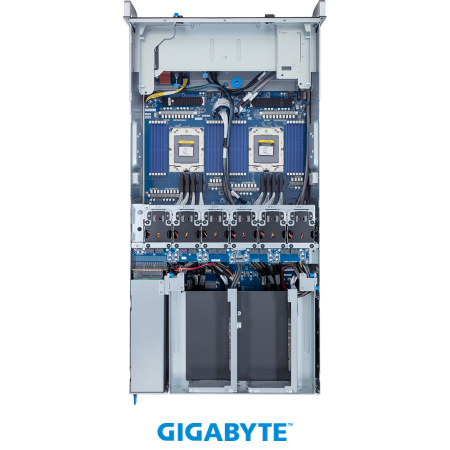

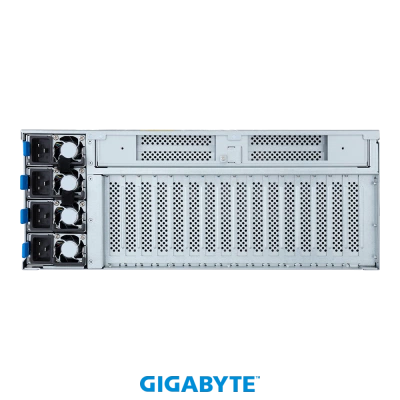

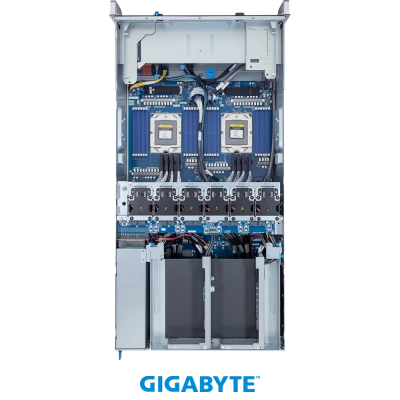

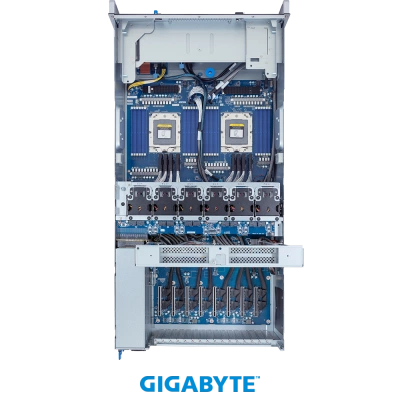

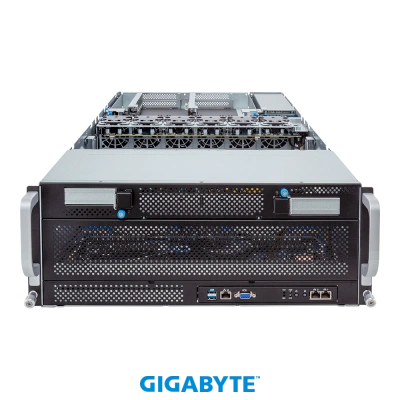

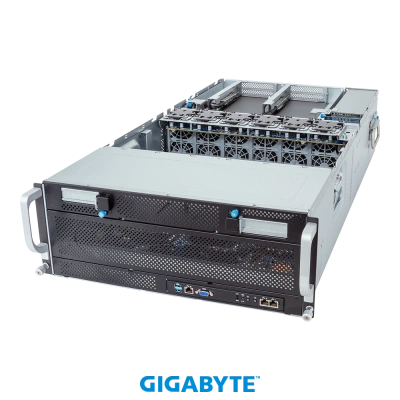

GIGABYTE G493-ZB0 (rev. AAP1)

4U
448 x 176 x 880

MZB3-G43

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 6096
Socket SP5

System on Chip

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Front side:
2 x 10Gb/s LAN ports (1 x Intel^® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

N/A

N/A

N/A

4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs

1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0
1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1

- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.

1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x TPM header

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

N/A

N/A

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

3+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)

12 x 60x60x38mm (23,000rpm)*

*Two fans share a single power connector.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 62.5 kg
Gross Weight: 65 kg

1200 x 800 x 444 mm w/ pallet

1 x G493-ZB0-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR to 12VHPWR, 150mm)
1 x L-shape Rail kit

- Barebone package: 6NG493ZB0DR000AAP1*
- Motherboard: 9MZB3G43UR-000
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R
- Front panel board - CFPG540: 9CFPG540NR-00
- Fan module: 25ST2-663823-F1R
- PCIe bridge board - CPBGCA0: 9CPBGCA0NR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-23000C-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493ZB0SR-RMA-A100
