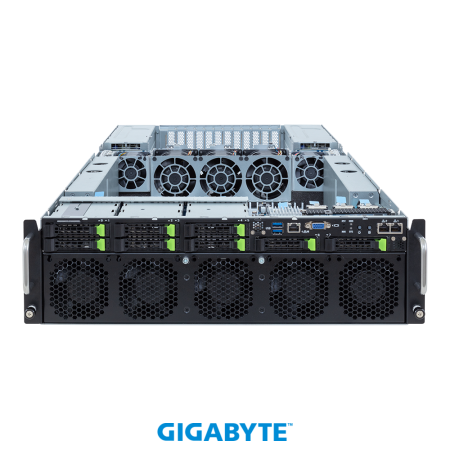

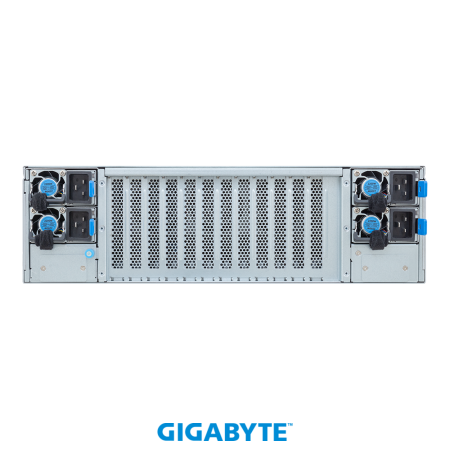

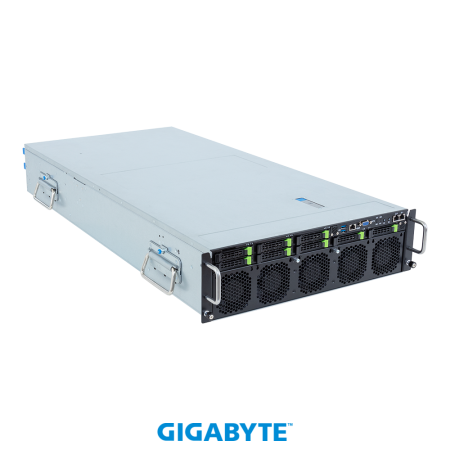

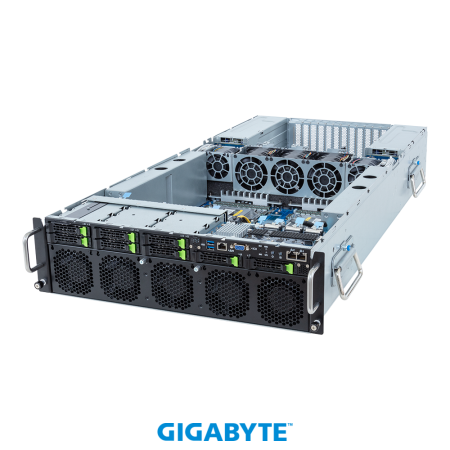

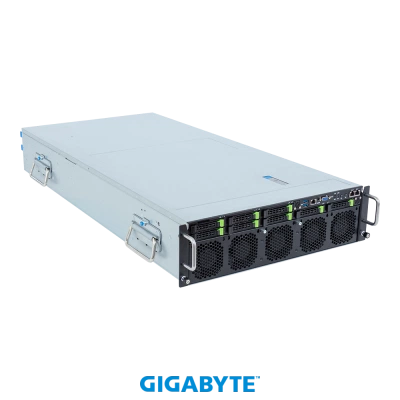

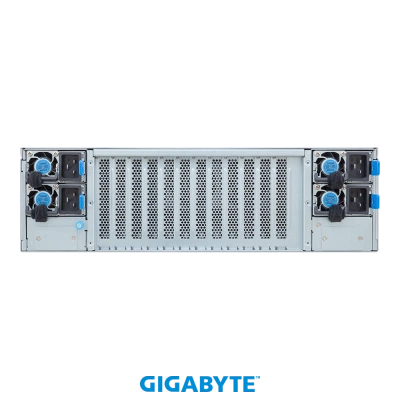

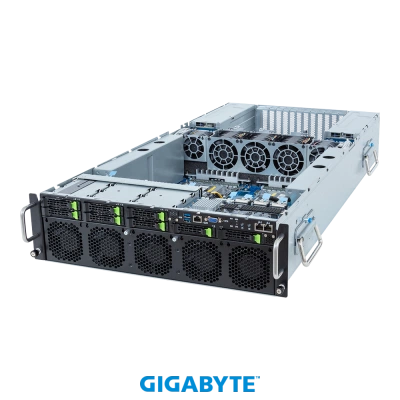

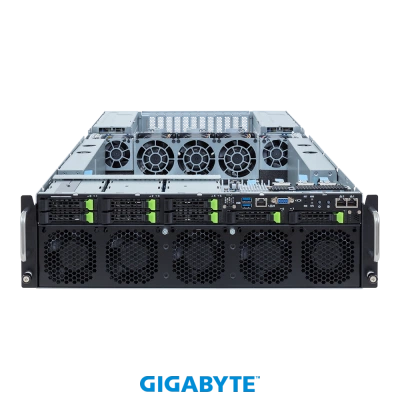

GIGABYTE G383-R80 (rev. AAP1)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE G383-R80 (rev. AAP1)
HPC/AI Server - AMD Instinct™ MI300A APU - 3U 8-Bay Gen5 NVMe
- 4 x AMD Instinct™ MI300A APUs
- 128GB HBM3 per APU
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 8 x 2.5" Gen5 NVMe hot-swappable bays
- 4 x FHFL Dual slot PCIe Gen5 x16 slots
- 4 x FHFL Single slot PCIe Gen5 x16 slots
- 3+1 3000W 80 PLUS Titanium redundant power supplies
Технические характеристики
Dimensions (WxHxD, mm)
3U
447 x 132 x 930
447 x 132 x 930
Motherboard
MR83-AC0
APU
4 x AMD Instinct™ MI300A APUs
- 24 x Zen4 CPU cores per APU
- 228 x CDNA3 compute units per APU
- TDP up to 550W (CPU + GPU + memory)
- Peak up to 760W
- 24 x Zen4 CPU cores per APU
- 228 x CDNA3 compute units per APU
- TDP up to 550W (CPU + GPU + memory)
- Peak up to 760W
Socket
4 x Socket SH5
Chipset
System on Chip
Memory
128GB HBM3 unified memory
Memory bandwidth 5.3TB/s
Memory bandwidth 5.3TB/s
LAN
Front side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
8 x 2.5" Gen5 NVMe hot-swappable bays
8 x 2.5" Gen5 NVMe hot-swappable bays
SAS
N/A
RAID
N/A
Expansion Slots
4 x PCIe x16 (Gen5 x16) FHFL slots (Dual slot)
4 x PCIe x16 (Gen5 x16) FHFL slots (Single slot)
1 x M.2 slot:
- M-key
- PCIe Gen5 x4, from APU_0
- Supports 2280/22110 cards
4 x PCIe x16 (Gen5 x16) FHFL slots (Single slot)
1 x M.2 slot:
- M-key
- PCIe Gen5 x4, from APU_0
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Titanium redundant power supplies
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
TBD
System Fans
TBD
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
TBD
Packaging Content
1 x G383-R80-AAP1
4 x APU heatsinks
1 x L-shape Rail kit
4 x APU heatsinks
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG383R80DR000AAP1*
