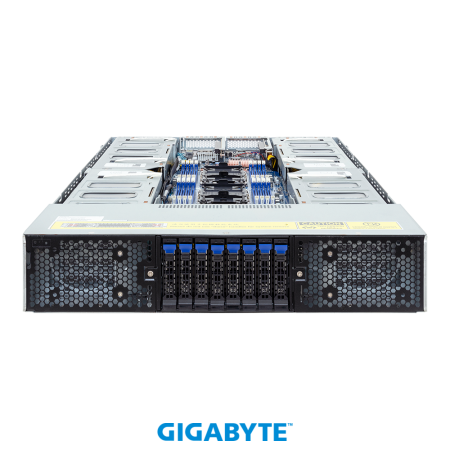

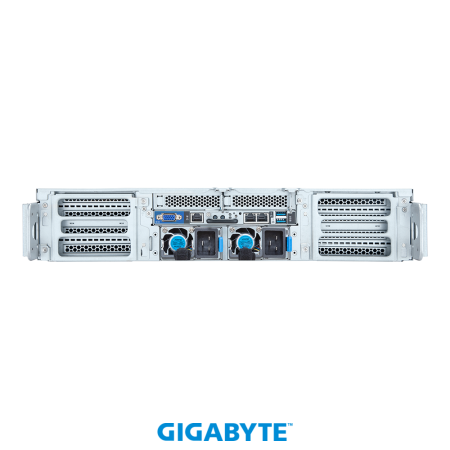

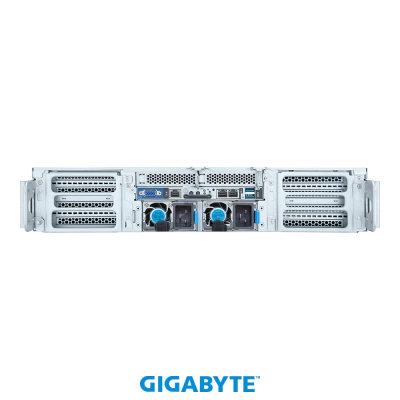

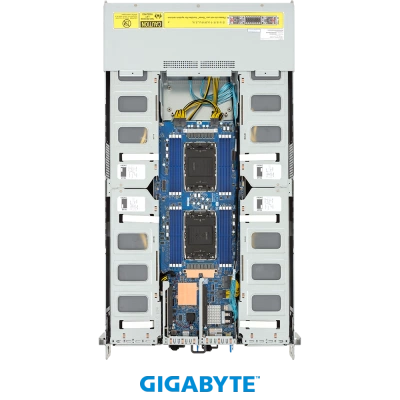

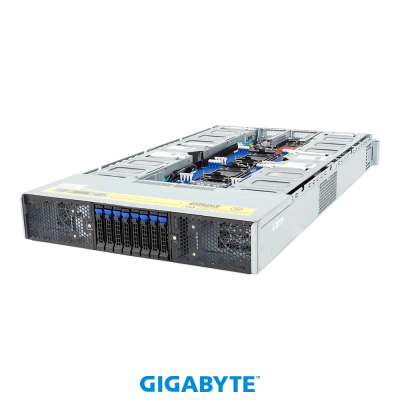

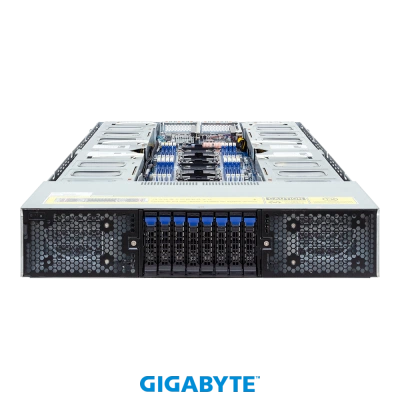

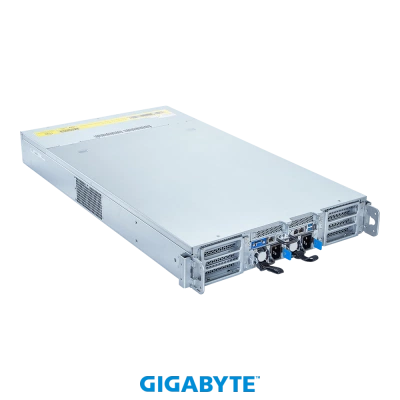

GIGABYTE G293-S45 (rev. IAP1)
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара GIGABYTE G293-S45 (rev. IAP1)
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen5 GPUs Immersion
- Single-Phase Immersion Ready Server
- Supports up to 8 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 8 x 2.5" SATA/SAS hot-swappable bays
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots
- Dual 3000W 80 PLUS Titanium redundant power supply
Технические характеристики
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
448 x 87.5 x 800
Motherboard
MS43-G21
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Intel® Xeon® Max Series: Up to 4800 MT/s
LAN
Top side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Bottom side:
8 x 2.5" Gen4 NVMe/SATA/SAS* hot-swappable bays
*SAS card is required to support SAS drives.
Note: NVMe support requires additional NVMe cables and occupies PCIe slots. Please refer to optional parts for qualified NVMe cables.
8 x 2.5" Gen4 NVMe/SATA/SAS* hot-swappable bays
*SAS card is required to support SAS drives.
Note: NVMe support requires additional NVMe cables and occupies PCIe slots. Please refer to optional parts for qualified NVMe cables.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards
Support optional RAID add-in cards
Expansion Slots
Riser Card CRSG229 x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
Riser Card CRSG22A x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
Riser Card CRSG01F x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
Riser Card CRSG22A x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
Riser Card CRSG01F x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Top I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
Operating Properties
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 34.86 kg
Gross Weight: 36.86 kg
Gross Weight: 36.86 kg
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G293-S45-IAP1
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 300mm)
6 x Carriers
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 300mm)
6 x Carriers
Part Numbers
- Barebone package (5th/4th Gen): 6NG293S45DR000IBP1*
- Barebone package (4th Gen): 6NG293S45DR000IAP1*
- Motherboard: 9MS43G21UR-000
- CPU heatsink: 25ST1-25320R-C1R/25ST1-25320S-C1R
- Backplane board - CBPG086: 9CBPG086NR-00
- Riser card - CRSG01F: 9CRSG01FNR-00
- Riser card - CRSG229: 9CRSG229NR-00
- Riser card - CRSG22A: 9CRSG22ANR-00
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R
- Power supply: 25EP0-23000E-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- NVMe cable (MCIO 8i to 2 x MCIO 4i): 25CF9-350705-A4R
- NVMe cable (MCIO 4i to MCIO 4i): 25CF9-700050-A4R
- RMA packaging: 6NG293S45SR-RMA-I100
- Barebone package (4th Gen): 6NG293S45DR000IAP1*
- Motherboard: 9MS43G21UR-000
- CPU heatsink: 25ST1-25320R-C1R/25ST1-25320S-C1R
- Backplane board - CBPG086: 9CBPG086NR-00
- Riser card - CRSG01F: 9CRSG01FNR-00
- Riser card - CRSG229: 9CRSG229NR-00
- Riser card - CRSG22A: 9CRSG22ANR-00
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R
- Power supply: 25EP0-23000E-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- NVMe cable (MCIO 8i to 2 x MCIO 4i): 25CF9-350705-A4R
- NVMe cable (MCIO 4i to MCIO 4i): 25CF9-700050-A4R
- RMA packaging: 6NG293S45SR-RMA-I100
