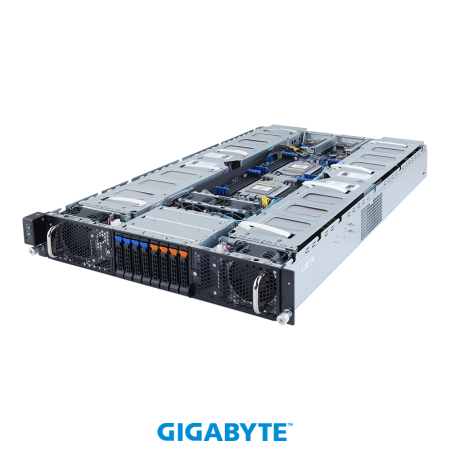

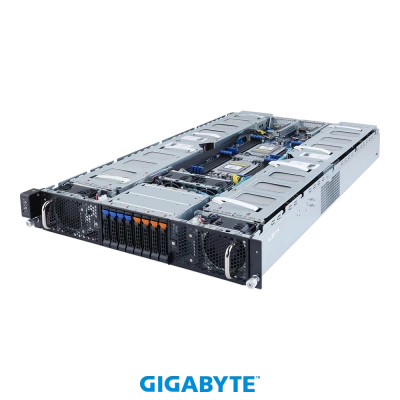

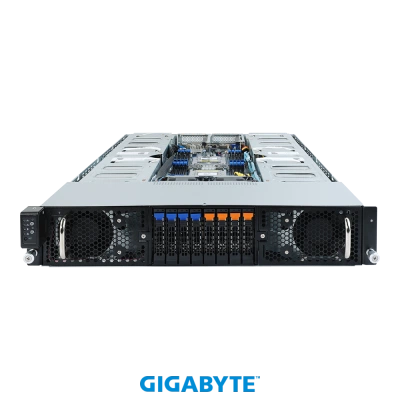

Описание товара GIGABYTE G292-Z44 (rev. A00)
HPC/AI Server - AMD EPYC™ 7003 - 2U DP 8 x PCIe Gen4 GPUs (Broadcom solution)
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA-Certified Systems™ - High-Density VDI Servers
- Supports up to 8 x Dual slot Gen4 GPUs
- AMD EPYC™ 7003 Series processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, total 16 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports via Intel® X550-AT2
- 1 x Dedicated management port
- 4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
- 4 x 2.5" SATA/SAS hot-swappable bays
- 8 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x LP PCIe Gen4 x16 slots for add-in cards
- Aspeed® AST2500 remote management controller
- Dual 2200W 80 PLUS Platinum redundant power supply (-A00)
- Dual 2200W 80 PLUS Titanium redundant power supply (-AT0)
Технические характеристики
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
448 x 87.5 x 800
Motherboard
MZ42-G20 Rev. 3.0
CPU
AMD EPYC™ 7003 Series processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 240W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Compatible with AMD EPYC™ 7002 Series processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 240W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Compatible with AMD EPYC™ 7002 Series processors
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MT/s
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, SATA from CPU_0)
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, SATA from CPU_0)
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SAS
Depends on SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
8 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs (Broadcom solution)
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
- Some limitations may apply depends on OS or user application.
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
- Some limitations may apply depends on OS or user application.
Internal I/O
1 x TPM header
Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Reset button
1 x ID button with LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Reset button

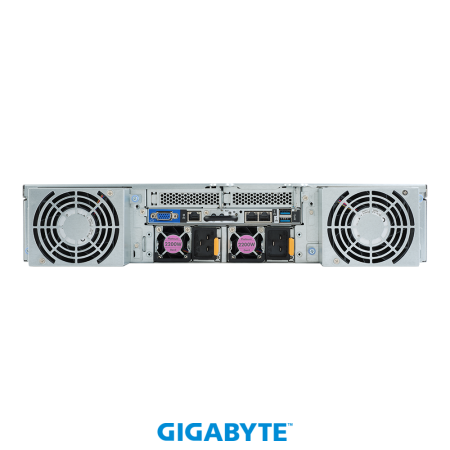

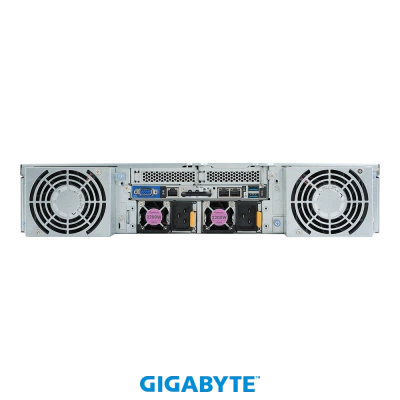

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply (-A00)
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Dual 2200W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.2V/ 180A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Dual 2200W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.2V/ 180A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP/AD/RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU operating temperature.
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU operating temperature.
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G292-Z44
2 x CPU heatsinks
6 x GPU power cables (CPU 8pin to PCIe 8pin*2, 220mm)
2 x GPU power cables (CPU 8pin to PCIe 8pin*2, 250mm)
1 x L-shape Rail kit
2 x CPU heatsinks
6 x GPU power cables (CPU 8pin to PCIe 8pin*2, 220mm)
2 x GPU power cables (CPU 8pin to PCIe 8pin*2, 250mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG292Z44MR-00-A*
- Motherboard: 9MZ42G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card for GPUs - CRSG620: 9CRSG620NR-00
- Riser card for GPUs - CRSG621: 9CRSG621NR-00
- GPU power cable (PCIe 8pin*2, 220mm): 25CRI-220304-Y4R
- GPU power cable (PCIe 8pin*2, 250mm): 25CRI-250903-Y4R
- Power supply (-A00): 25EP0-222008-D0S
- Power supply (-AT0): 25EP0-222008-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG292Z44SR-RMA-A100
- Motherboard: 9MZ42G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card for GPUs - CRSG620: 9CRSG620NR-00
- Riser card for GPUs - CRSG621: 9CRSG621NR-00
- GPU power cable (PCIe 8pin*2, 220mm): 25CRI-220304-Y4R
- GPU power cable (PCIe 8pin*2, 250mm): 25CRI-250903-Y4R
- Power supply (-A00): 25EP0-222008-D0S
- Power supply (-AT0): 25EP0-222008-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG292Z44SR-RMA-A100
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи магазина или ТК. Дата и время получения заранее согласуется с менеджером магазина. Отгрузка товара юридическим лицам осуществляется только при наличии печати или правильно оформленной и заполненной доверенности, наличии паспорта получателя.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.Мы предоставляем официальную гарантию на всю продукцию.
Сервис гарантии включает в себя:
- Прием в сервисном центре для диагностики дефекта.
- Ремонт (при необходимости) или замена товара.
- Бесплатную доставку клиенту после ремонта.
Нет отзывов об этом товаре.
