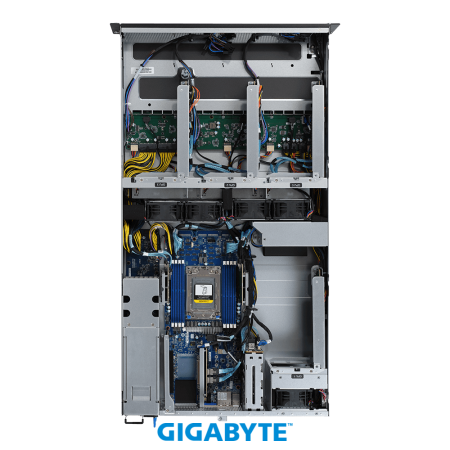

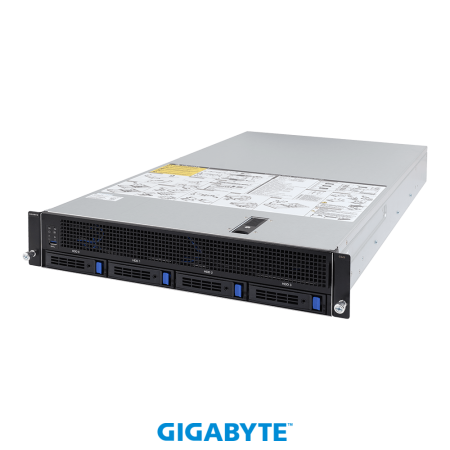

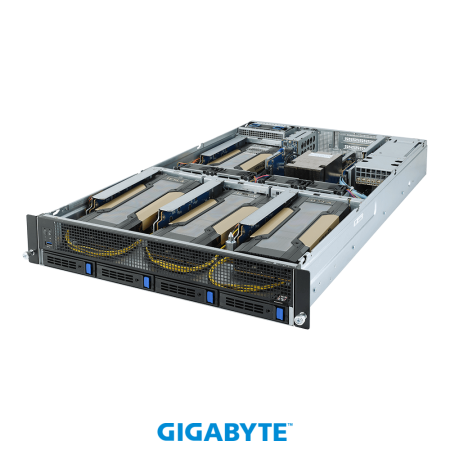

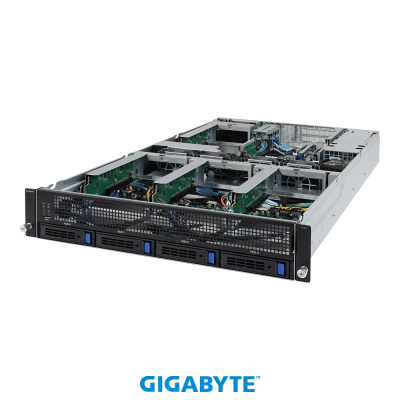

GIGABYTE G242-Z10 (rev. A00)

Name: GIGABYTE G242-Z10 (rev. A00)
Brand: GIGABYTE
SKU: G242-Z10

Цена по запросу

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@gigabyte-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 129-99-95

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара GIGABYTE G242-Z10 (rev. A00)

HPC/AI Server - AMD EPYC™ 7003 - 2U UP 4 x PCIe Gen3 GPUs

Up to 4 x NVIDIA Tesla^® PCIe GPU cards
NVIDIA^® NGC™ Ready server
AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
1 x Dedicated management port
4 x 3.5"/2.5" SATA hot-swappable bays
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays on rear side
1 x M.2 slot with PCIe Gen3 x4 interface
4 x FHFL PCIe Gen3 x16 slots for GPUs
2 x FHHL PCIe Gen3 x16 and x8 slots
1 x OCP 2.0 Gen3 x16 mezzanine slot
Aspeed^® AST2500 remote management controller
Dual 1600W 80 PLUS Platinum redundant power supply

Технические характеристики

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 820

Motherboard

MZ12-HD1 Rev. 3.0

CPU

AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W

Compatible with AMD EPYC™ 7002 Series processors

Socket

1 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz

LAN

Rear side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
NCSI function supported

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
4 x 3.5"/2.5" SATA hot-swappable bays

SATA devices supported only

Rear side:
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

SAS

Depends on SAS add-on card

RAID

N/A

Expansion Slots

4 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs

Riser Card CRSG027:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
NCSI function supported

1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 180W if using M.2 device

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations

Internal I/O

1 x TPM header
1 x Front panel header

Front I/O

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED

Backplane Board

Speed and bandwidth:
Front side - CBPG041: SATA 6Gb/s
Rear side - CBP2021: PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

Dual 1600W 80 PLUS Platinum redundant power supply

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

5 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU operating temperature

Weight

Net Weight: 18.8 kg

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x G242-Z10
1 x CPU heatsink
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NG242Z10MR-00-A*
- Motherboard: 9MZ12HD1NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG041: 9CBPG041NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-88382A-D0R
- Power supply: 25EP0-216007-L0S

Optional parts:

- RMA packaging: 6NG242Z10SR-RMA-A100
